Introduction:

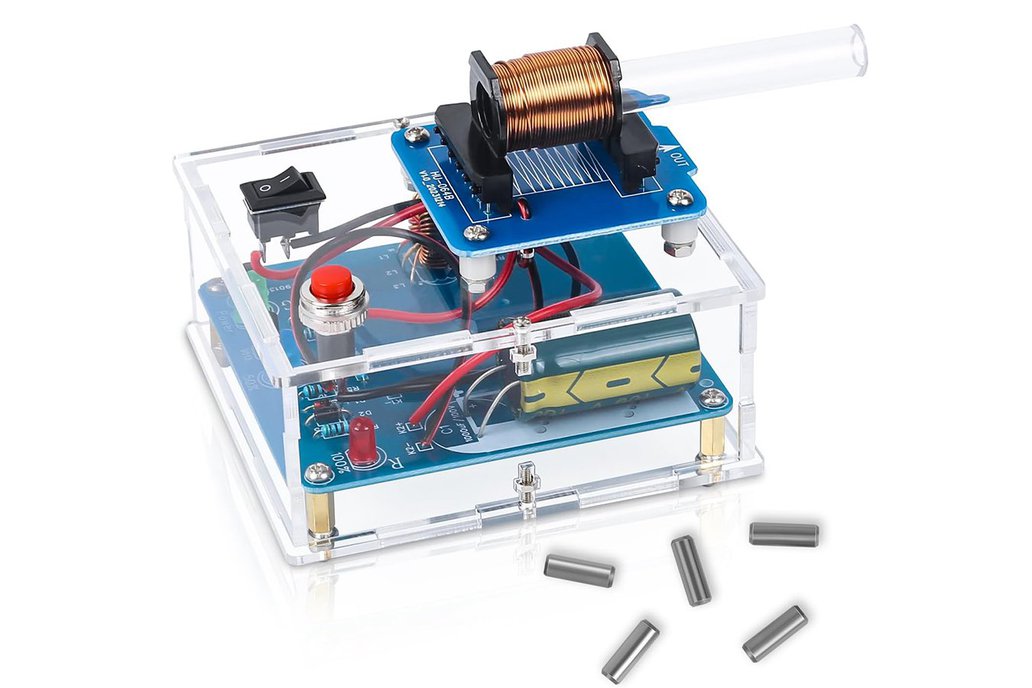

• HU-064 is a DC 3V High Voltage Electromagnetic Transmitter DIY Kit. It can simulate an electromagnetic transmitter and convert electrical energy into magnetic energy, thereby injecting a metal cylinder.
• Users can use it to learn and understand the working principle of electromagnetic transmitters and learn the basics of electronic technology, soldering skills.

Feature:

• DIY Soldering Project: It’s a DIY kit which comes with various components. User need to install each component by hand. It not only can exercise and improve soldering skills, but also increase the interest in electronic technology. Great for electronics hobbyists, beginners, school and home education.

• Easy to Assemble: We have prepared a detailed user manual. The connection was clearly mapped and labeled on the board, and the principle is simple.

Please Pay Attention:

• Do not touch the metal parts with your hands when it is charged. The finished project is a device that works under high voltage.
• Please discharge the energy storage capacitor before troubleshooting. Please refer to user the manual for detailed discharge operation.
• Children under the age of 14 need to be installed and used it under the supervision of an adult.

Parameter:

• Work Voltage: DC 3V
• Charging Current: 50~60mA
• Discharging Current: 70~80mA
• Power Type:AA*2 Battery (Not Included)
• Work Temperature:-20℃~85℃
• Work Humidity:5%~85%RH
• Size(Installed):94x87x84mm

Instructions & Steps for Usage:

• 1.Turn ON black power switch to charge the capacitor;
• 2.Wait for approximately 10-30 seconds to complete charging and the blue/red LED is charge indicator and slowly brighten up;
• 3.Insert the metal cylinder from the rear end of the plastic tube, and its tail should be flush with the tail of the tube;
• 4.Press the launch button (red button), the metal cylinder will fly out, and the launch is complete.

Installation Manual:

• Please download from the Specs & Docs - Documentation
