Description:

This is a DIY Infrared Reversing Indicator kit parts. You need to solder it by yourself. According to the infrared reaction, measure the distance and change the output transition. It can be applied to intelligent robots, smart homes, industrial controls and so on.

Features:

• High sensitivity;
• Short sensing distance;
• Low power consumption;
• Inductive distance adjustable;
• Working status indicator;
• Wide operating voltage range;
• Low power consumption;
• DIY design.

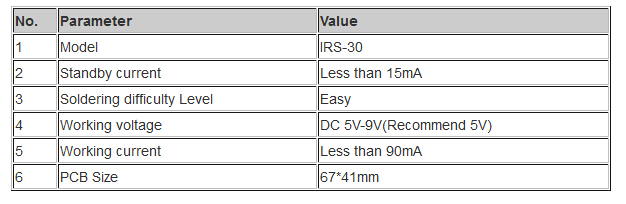

Parameters:

Working Principle:

• When light hits the surface of the object, it radiates and emits part of the light. Through this principle, the receiver is used to receive this portion of the light to output a signal. According to a series of circuits, the distance range is indicated by an indicator.

• This circuit uses the modulated invisible infrared to detect the distance and has the advantage of anti-interference!

• When the object is in front of the light source about 30cm,LED3 will ON;When the object is in front of the light source about 20cm,LED2 will ON;When the object is in front of the light source about 10cm,LED1 will ON;

• The working voltage of this kit is DC5-9V, the recommended voltage is 5V.

Potentiometer Description:

There are two potentiometer on PCB. They have different function as shown:

VR1 : It is used to adjust distance.

VR2 : It is used to adjust sensitivity regulation.

Instructions:

• Step 1: Complete the installation in the normal way following installation manual and schematic.(Please request separately).
• Step 2:Connect DC 5-9V voltage;
• Step 3:Adjust two potentiometers for test distance and sensitivity regulation.
• Step 4:Test and use.

Attention!:

• It cannot be used directly under the sun because it uses infrared testing.
• It cannot be used in high temperature environments and can be disturbed.
• Please make sure all components in right direction and right place.
• Please check whether pseudo/float welding.This is very important .
• The soldering iron can't touch the components for a long time, otherwise the components will be damaged because of the high temperature.

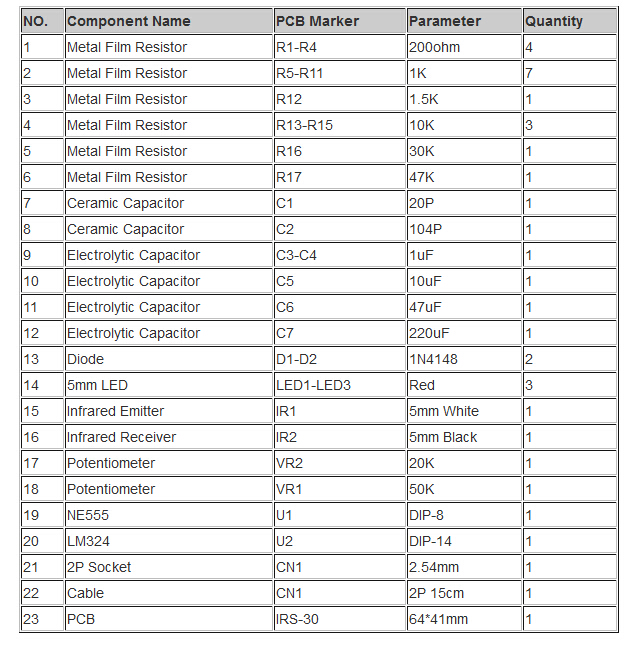

Component List:

Note: Please request installation manual and schematic from us; You can finish installation by PCB silk screen and component listing.

Application:

• Smart home

• Smart robot

• Distance alarm

Example:

It can be used in Robot Competition.The robot advances in the maze and changes direction according to obstacles ahead to avoid collision obstacles.

Frequency asked questions:

• Why won't it work? A :Please make sure all components in right direction and right place and check whether pseudo/float welding.This is very important.
• Can I measure distances over 30cm?? A :Sorry,it can not.

Tools required for installation:

• Soldering iron;
• Multimeter;
• Solder wire;
• Iron stand;
• Diagonal cutting pliers;
• The screwdriver;
• Tweezers;
• Long nose pliers;
• Suction tin;
• Cleaning sponge;
• Screwdriver set.

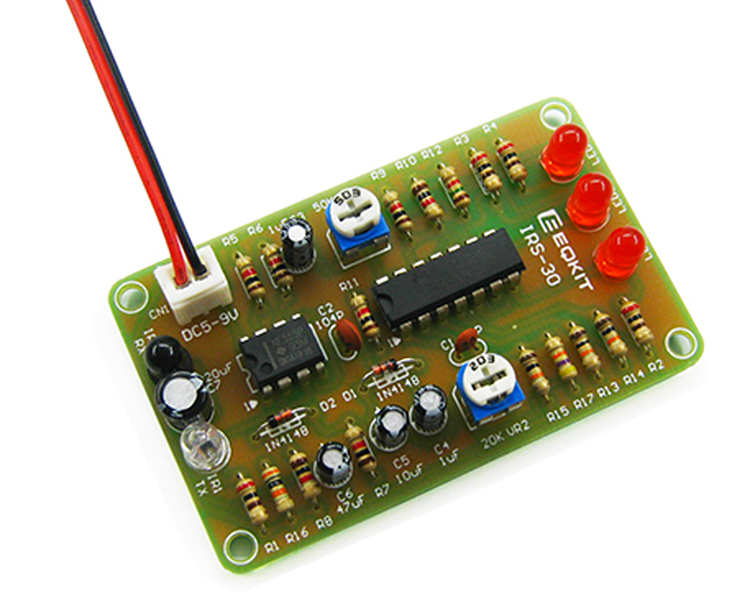

Finished Product Picture:
