Description:

• NOTE:This product is a voltage controller, which turns on and off the output through a relay, which only acts as a switch and cannot change the voltage.

• CHARGE AND DISCHARGE PROTECTION: You can freely set the charging or discharging mode and set parameters. For example, when the battery voltage reaches the set voltage, the module will automatically disconnect to avoid battery over-discharging and prolong battery life; In addition, you can also set the charging and discharging time

• LCD SCREEN: Unlike other LED display modules, this protection module comes with an LCD high-definition display, which can clearly display voltage, voltage percentage and time

• 30A CURRENT: With 30A high current relay, suitable for any 6-60V variety of batteries and Lithium batteries

• DELAY TURN-ON: That means, after a charge or discharge, the interval between turning on again. The time range that can be set is 0-999 seconds

FUNCTION:

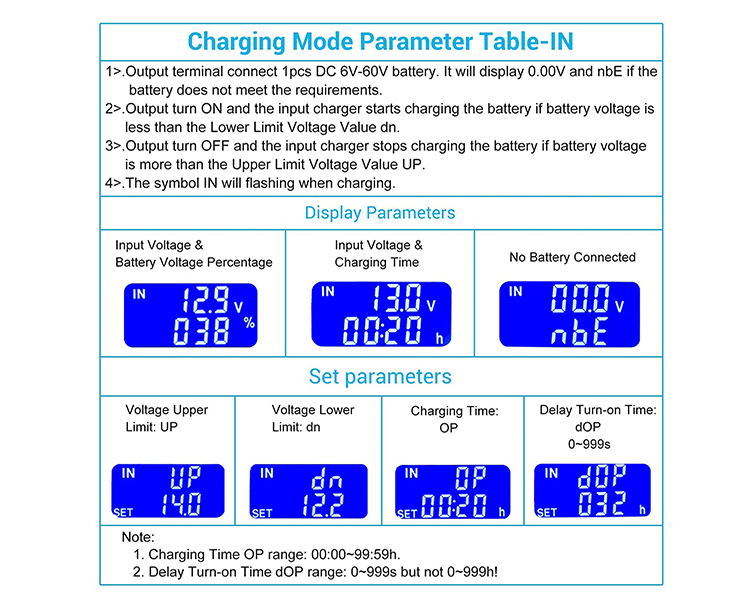

• Charge/Discharge mode
• Charge/Discharge time control
• Delay turn-on(0-999 seconds)
• Force start time(0-10 seconds)

Parameter:

• UP: Voltage upper limit
• dn: Voltage lower limit
• OP: Conduction time
• dOP: Delayed conduction time (0-999 seconds)

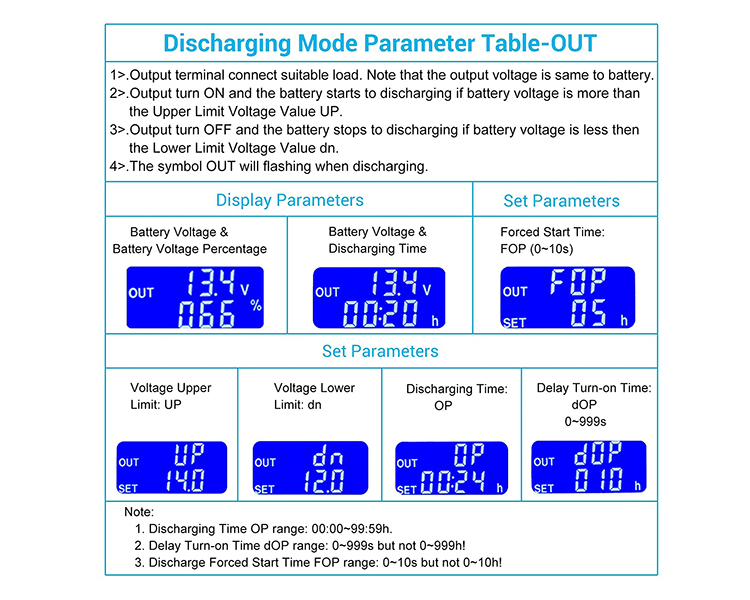

• FOP in discharge mode: Forced start time (0-10 seconds)

Buttons:

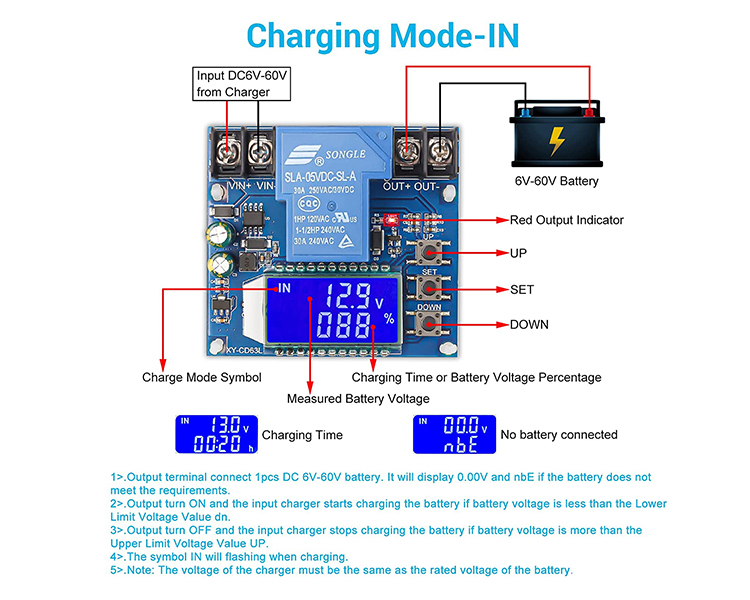

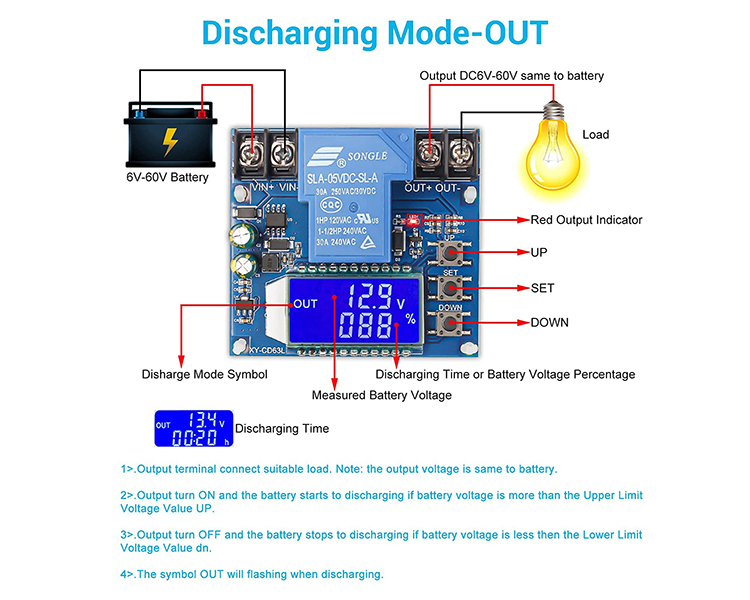

• UP button: Short press to switch to display percentage and time, long press for 5 seconds to switch modes, charging mode: IN, discharging mode: OUT
• SET button: Short press to view the currently set parameters; long press the SET button to set the parameter
• DOWN button: Short press to turn off/on the relay (emergency stop function), after the LCD display is OFF, the relay is disconnected
