1.Description:

• It is a 470MHz LoRaWAN RF module.
• It is a LoRa module designed and developed based on the chip ASR6601, which is used for ultra-long-distance spread spectrum communication.Support Lorawan,Linkwan protocol,support frequency band:410-525MHz.

2.Feature:

• It comes with MCU and can run independently.
• Its transmit power is up to 22dBm.
• It supports multiple sleep modes:deep sleep current 0.9uA.
• The Ra-08 module package is compatible with the Ra-07.
• Its antenna interface is compatible with stamp hole/round hole/IPEX connection.
• It has a wide range of applications and can be used in remote irrigation systems,smart animal husbandry,street light control,and industrial automation.
• It provides ultra-long range and ultra-low power communication.

3.Parameter:

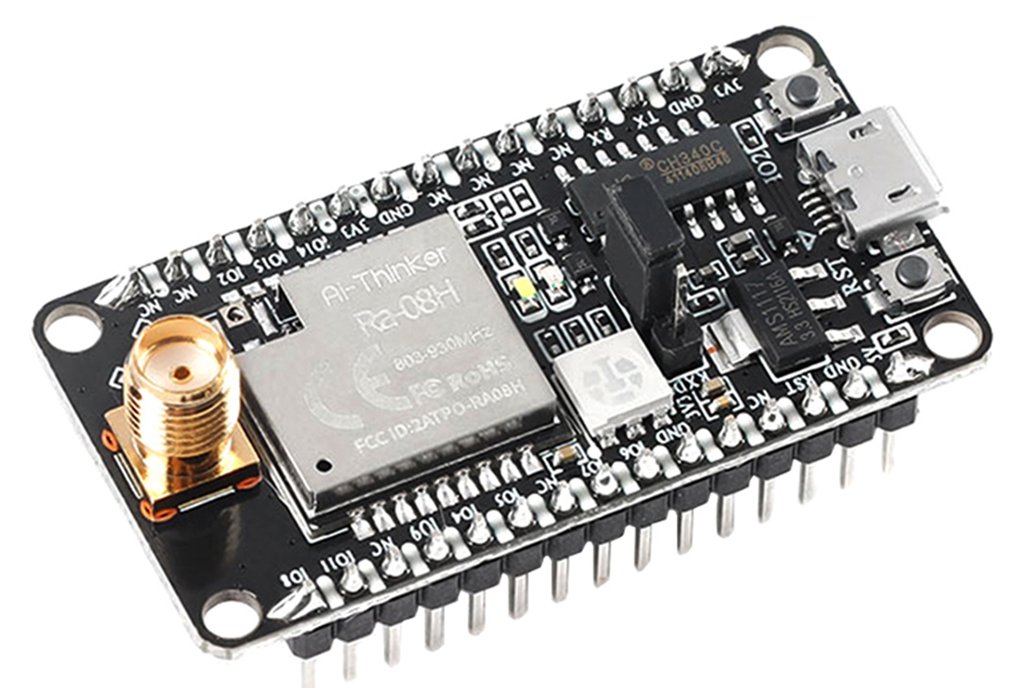

• Product Name:470MHz LoRaWAN RF Module
• Module Type:Ra-08
• Packaging:SMD-18
• Antenna Form:compatible with half-hole pad/through-hole pad/IPEX socket
• Spectrum Range:410~525MHz
• Input Voltage:DC 2.7V-3.6V
• Input Current:500mA(Min)
• Support Interface:UART/GPIO/ADC/PWM/I2C/12S/SPI/DAC
• Number of IO Ports:IO2,IO4,IO5,IO8,IO9,IO11,IO14,IO15
• Serial Port Rate:support 110-4608000 bps,default 115200 bps
• Crystal Frequency:32MHz
• SPI Flash:128KB
• Transmission Protocol:LoRaWAN,LinkWAN
• Work Temperature:-40℃~85℃
• Storage Temperature:-40℃~125℃
• Work Humidity:5%~95%RH
• Size:16163mm

4.Pin Description:

5.Application:

• Smart Meter
• Supply Chain and Logistics
• Home Building Automation
• Security System
• Remote Irrigation System

6.Package:

1pcs 470MHz LoRaWAN RF Module
