1.Description:

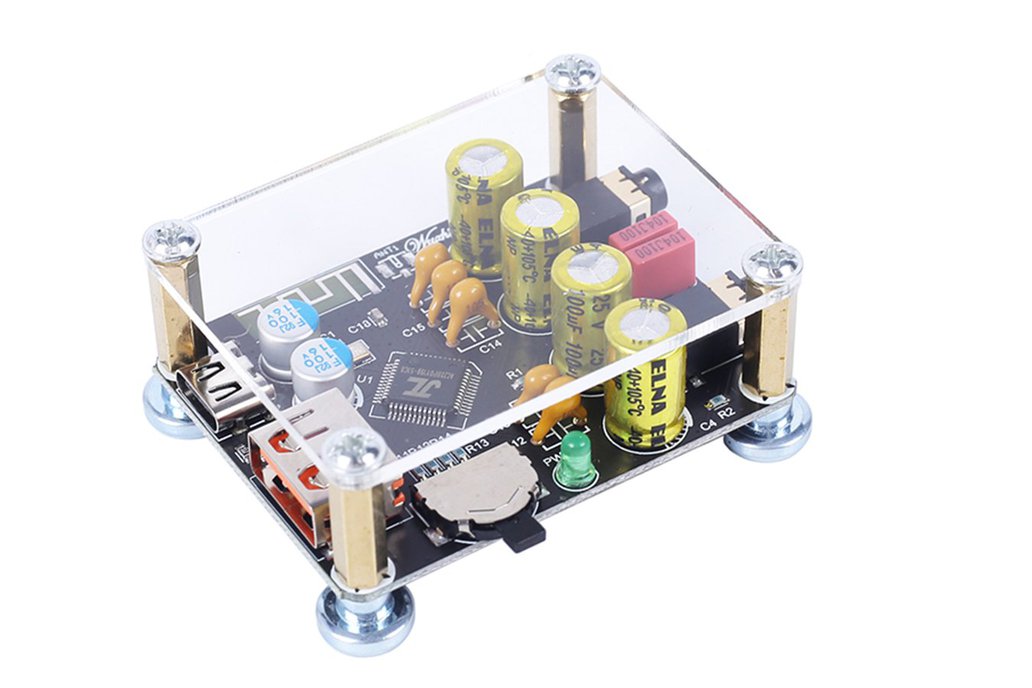

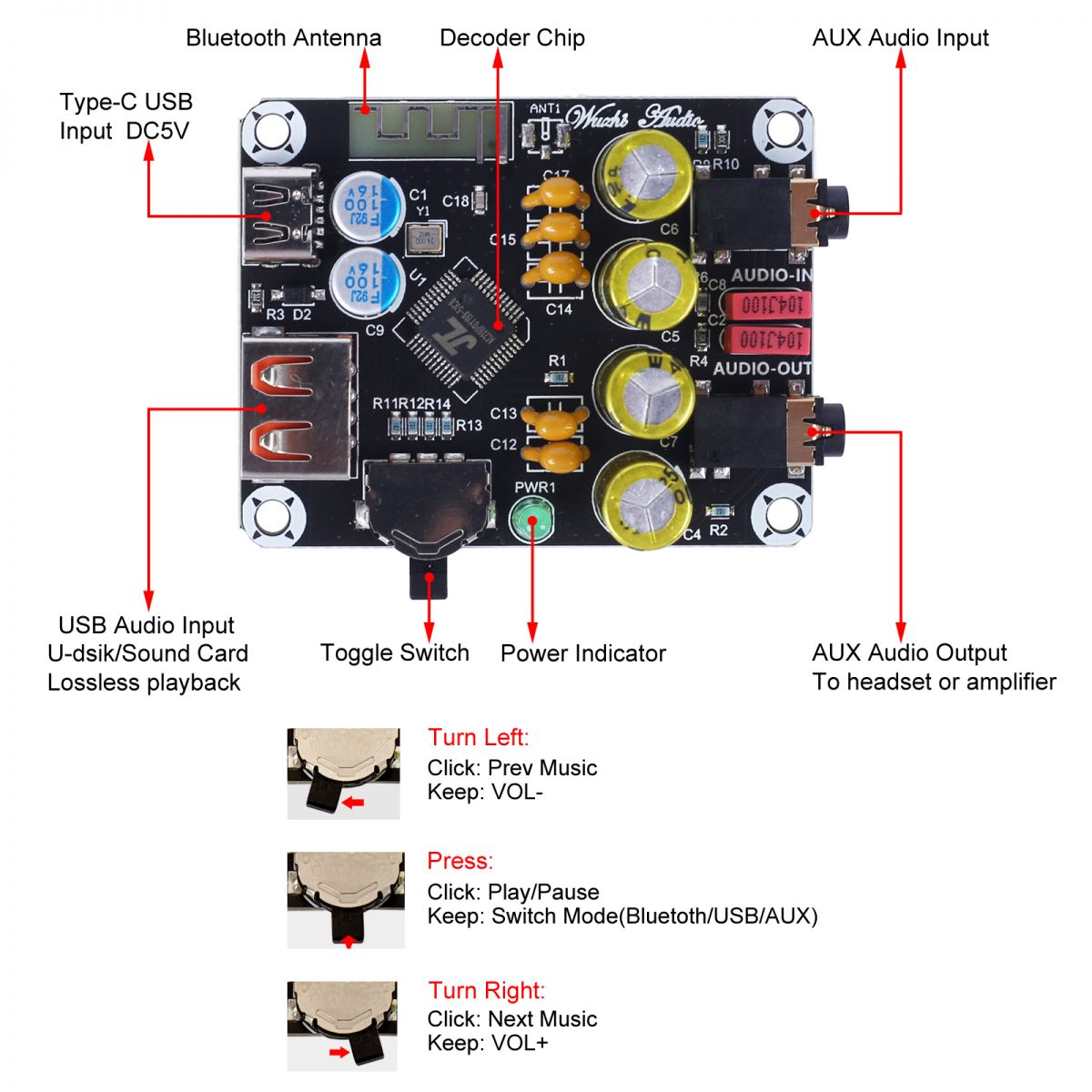

• ZK-PT2 is a Bluetooth-compatiable Audio Receiver MP3 Lossless Decoder which perfect for DIY speakers and transponders. This module can receive music, as well as AUX/USB audio input.

• This Bluetooth-compatiable receiver module is ideal for those who want to add a surround sound experience to their home theater, KTV, outdoor parties, and more. With its diversified audio sources input and adjustable volume control, you can customize the sound according to your preference. It is also easy to install and use, allowing you to enjoy an immersive sound experience with minimal effort.

2.Features:

• Sampling 5.1 BLE communication technology
• Plug and play in car Bluetooth
• BLE name and password can be modified
• BLE prompt can be turned on/off and the volume can be adjusted
• MP3/WAV/FLAC/APE lossless decoding
• Bluetooth-compatiable/AUX/U-disk audio input
• Magnetic suction fixing seat
• APP remote control
• Automatically connect to the previous Bluetooth-compatiable device

3.Parameters:

• Product name: ZK-PT2 HIFI Audio Receiver MP3 Lossless Decoder
• Work Voltage: DC 5V
• Power Interface:Type-C USB
• BLE 5.1
• Audio input type: Bluetooth-compatiable/AUX/U-disk
• Audio output type: AUX
• Control type: Bluetooth/APP/Toggle Switch
• Communication distance:15meter(Max)
• USB Music decoding format: MP3/WAV/FLAC/APE 1411kbps/16bit
• Bluetooth Music decoding format:AAC
• APP name: WuZhi Audio
• Work Temperature: -20℃~85℃
• Work Humidity: 5%~95%RH
• Module Size(Installed):54x42x24mm

4.Application:

• Modified/repair/replace speaker
• Amplifier equipment for training/activity site and so on
• Car device
• Music Festival Party
• Family entertainment and leisure
• Games and Cinema
• Home theater
• Security system
• KTV singing hall
• Home background music

5.Note:

• It should be placed as far away from the WIFI (router) as possible to avoid signal interference.
• It is an audio decoder and must be connected to headphones or amplifiers to play music.
• Please read the user manual and product description carefully before use.

6.Package:

• 1pcs ZK-PT2 HIFI Bluetooth-compatiable Audio Receiver MP3 Lossless Decoder
• 1pcs Acrylic Plate
• 4pcs M3*12+6mm Copper Pillar Screw
• 4pcs M3*6mm Screw
• 4pcs Magnetic Screw Base
• 1pcs ‘ + ’ Screwdriver
