Description:

The DC Motor Speed Controller is a device for adjusting the speed of DC motors. DC motors have low speed levels and high torque, which can not be replaced by an AC motor. The equipment that regulates the speed of the DC motor can be widely used, and is often used in DC load circuits due to these special properties.

Features:

• High frequency 10KHZ
• PWM can be adjusted 1%-100%
• Supports high currents
• Knob integrated design
• No polarity regulation

Parameters:

• Input Voltage: DC 5-30V
• Load Power: 90W(MAX)
• Rated Current: 5A(MAX)
• Speed Range: 1%-100%
• PWM Frequency: 10Khz
• Potentiometer: resistance value 100K
• Inner Knob Diameter: 8mm
• The Output Voltage is 0-100% of the input voltage
• Standby Current: 0.015A
• Size(without Knob): 30x24x19mm
• Size: 51x24x19mm

Usage:

• Turn the potentiometer counterclockwise until you hear a sound from the potentiometer.

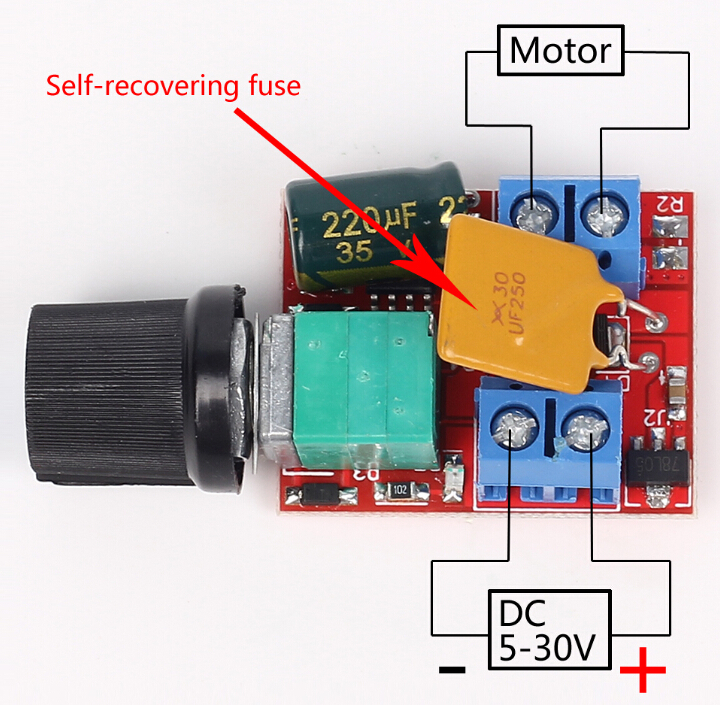

• Connect a DC motor or lamp that meets the requirements of ‘MOTOR+’ and ‘MOTOR-’.
• Connect the DC power supply at ‘DC IN+’ and ‘DC IN-’.
• Adjust the knob to control the speed of the motor.
• If you need to stop, turn the potentiometer counterclockwise until you hear the sound from the potentiometer.
• Remove the power supply before removing the DC motor.
• Remove the DC motor.

Applications:

• Industrial DC motor speed regulation
• Industrial conveyor belt speed regulation
• Lighting and lighting mediation
• Computer power supply cooling
• DC fans

Note:

• It works for DC motors and can be connected to the DC power supply. Don’t connect AC 110V or 220V power supplies, they will damage the module.
• The positive and negative poles of the DC power supply can not be reversed, otherwise the governor will be damaged.
• The motor can be divided into positive and negative. When the direction of operations and expectations are inconsistent, you can change the direction of the alignment.
• The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.
• Please allow 1-3mm errors due to manual measurements.

Package:

• 1pcs Mini DC Motor Speed Controller
