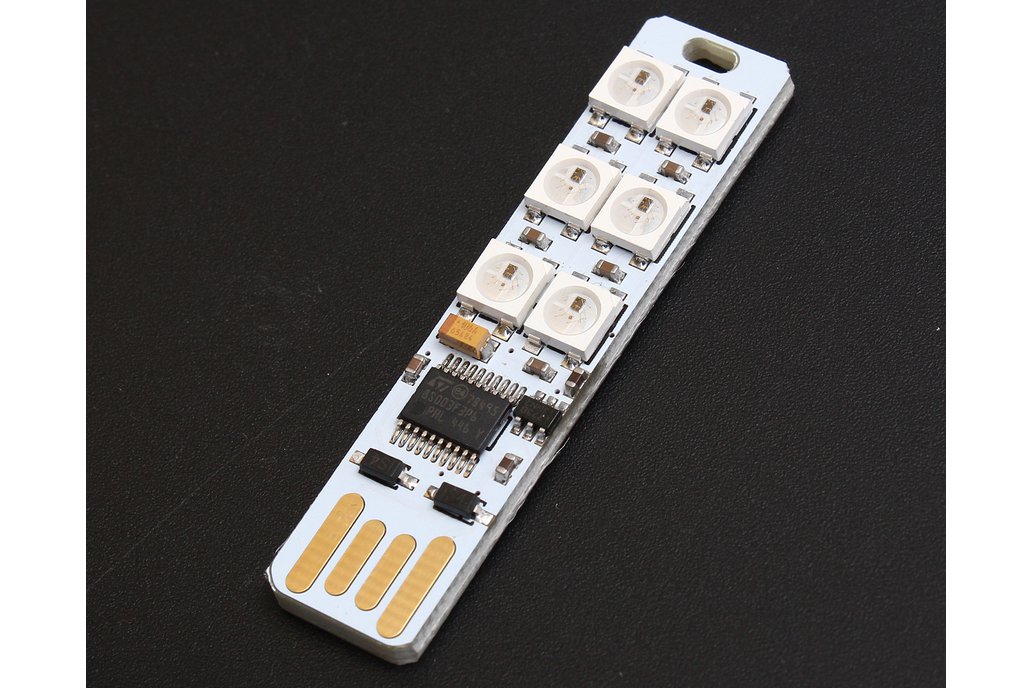

Product: Dazzle color multi-function USB Touch control Light-Dimmer

• VCC: 5V
• Peak current: <120mA

• Working frequency: 16MHz
• Interface: USB
• Physical characteristics: Size: 51.51mm x 12mm
• Working temperature:-20—80℃
• Storage temperature:-40—85℃
• Humidity: 5%-95%
• MAX luminous intensity: 1400mcd

Features

1. The control part of this module is the high cost-performance ratio microcontroller which is the default choice within the demands scope of daily use electronics.

2. The display part of this module uses smart external control integrated LEDs. It can realize 256 level display and 16777216 colors whole colorful display. Besides, it is very beautiful because of the consistent color and brightness of the LEDs.

3. This module can be connect to the desktop computer, laptop computer, the TV, and other devices which have USB interface.

4. The color and the brightness of this module can be changed by touching the touch area at the end of this module, so this module can be used in different conditions.

5. There is a hole on the tail of this module which can be used to connect with the key chain, so it is very convenient to carry it.

6. It has double sided USB interface which means we do not need to worry about the reverse connection.

7. The power part adopts the diodes to prevent the host device from the damage of module short circuit.

8. This module can retain the color value even if we cut off the power supply, when we connect it to the power again, it will show the color which it displayed when we pulled out it last time.

Application example

It can be connect to the computer USB and the USB port of some other devices as lighting LED.
