Description:

1. This suite is practical and interesting, a total of 178 elements, is the preferred material for learning electronic technology, electronic skill training, electronic assembly test.

2. Circuit board design aesthetic science, pad large, thicker wire, all using in-line components, easy assembly, board size is about 11*9.5cm. The function is very powerful, remote control in hand, follow one's inclinations beautiful butterfly lamp easily control.

3. Suitable for Christmas, New Year's day, Spring Festival, valentine's day festival festival, sweet moment to express love gift!

4. For lighting can also be installed to the house, can change a variety of shapes and brightness by remote control. (up to 4 w lamp power, the actual feeling of brightness not less than 3 w LED bulbs, the light is warm color, completely can use as a lamp, if you want to be more bright, can reduce the current limiting resistor, the power can reach more than 8 w).

5. This paragraph kit comprising 118 super bright warm white LED (nominal brightness 2000-3000mcd), 7 blue LED and 8 Pink LED array is composed of a butterfly shaped pattern, by micro infrared remote controller control computer chip presents multi state lights shining in the daytime pattern, that is, the effect is still very obvious, and can conveniently control 13 music playing (monophonic Music), very dynamic, fun, absolutely is a very fashionable and attractive electronic works. This kit assembly production of relatively simple, programs are written into the MCU chip, installed can use.

6. Using 3.7-5 v dc power supply, current 0.8 A above (need to bring your own, such as 3 section 5, battery, 5 v direct filling head, lithium battery, etc.)

Remote Control

Boot will automatically play the following 13 music: Butterfly, Butterfly Fly, butterfly, butterfly love, butterflies butterflies everywhere, New Butterfly Dream, two butterflies, Yudie, the dream of butterflies, butterfly flower, Hudiequanbian , Mice Love Rice, Auld Lang Syne.

At the same time there are 18 kinds of lighting effects with the rhythm of the music beat. (Non-remote control type is in this state), press the "Play" button on the remote control can switch at any time to change the state. Press the remote's numeric keys "0-9" and "RPT"elections can be respectively the direct election the following 11 song about Butterfly.

Music: butterfly, butterfly fly, butterfly, butterfly love, butterflies exist everywhere, new butterfly dream, two butterflies, butterfly butterfly, dream butterfly, butterfly, Butterfly Spring.

Press the remote's "into the song" and "back track" can quickly retreat selections in this 13 music. Have lights flashing effect when playing music.

Other Buttons Function

• Power key: Turn off all the lights and music (only snout butterfly blue lights that standby mode);
• Mute button: Press turn off the music, all lights lit
• EQ button: lighting effects for a small butterfly-shaped + large butterfly-shaped;
• U / SD key: lighting effects for medium and small butterfly-shaped automatic flashing;
• EQ button: lighting effects for a small butterfly-shaped;
• VOL- key: changing the shape of a butterfly lamp lit + (total of seven kinds of change);
• VOL + button: change butterfly lamp light shape - (a total of 7 kinds of change)

Special Note: The name in the "package" keyword are parts, assembly to use it by ourselves.

All components shall be installed close to the PCB surface, cut foot hard light and don't pull the pin; the incorrect operation is extremely easy to cause fracture, circuit board copper foil cause installation to fail. Stable power supply requirements, the working current more than 800MA.

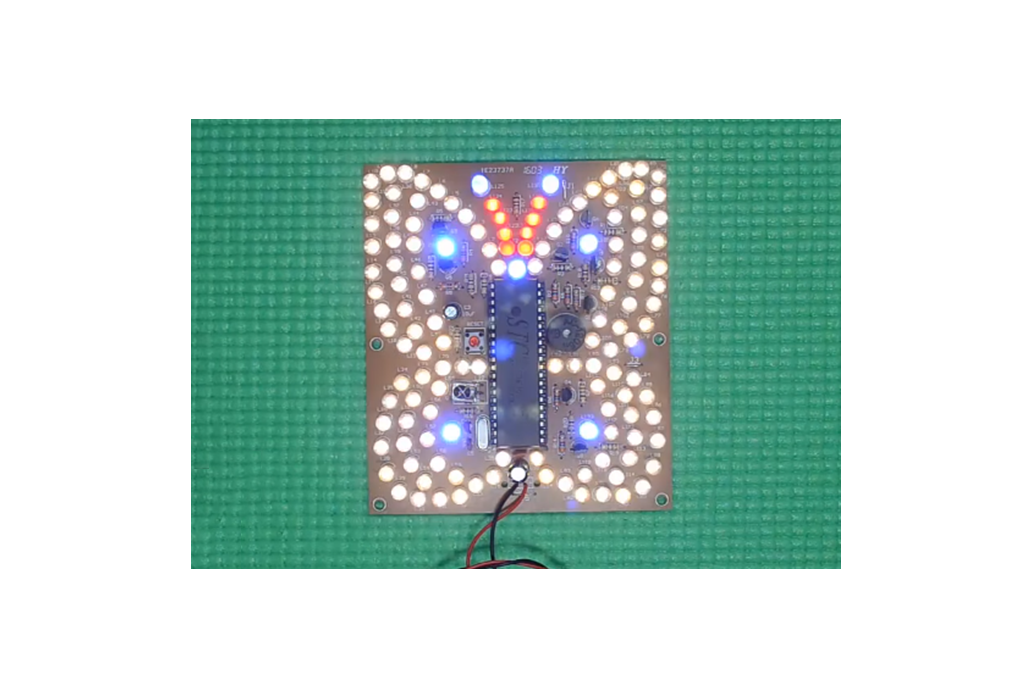

Tested by Partner ELECTROJUANYU:
