2.4G 22dBm 100mW nRF24L01P+PA+LNA Wireless Transmission Module Shielding Case

Basic information：

• Model：E01-ML01DP5
• Center frequency：2.4GHz
• measured distance：1300m
• max power ：100mW
• component source:imported components

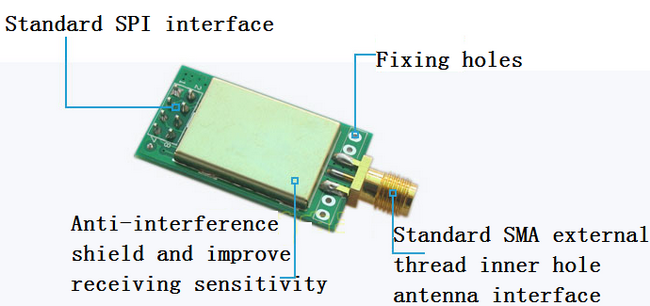

• Features：With shielding cover, Strong anti-interference force

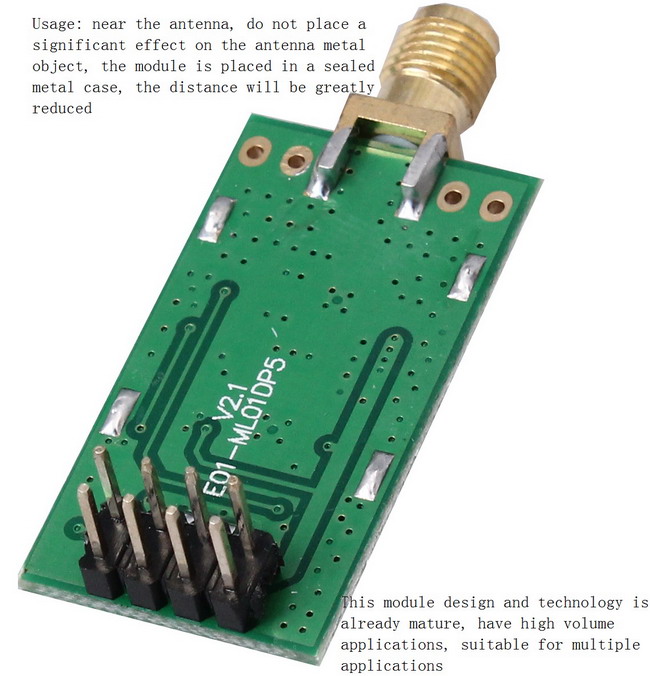

Products :

Parameters：

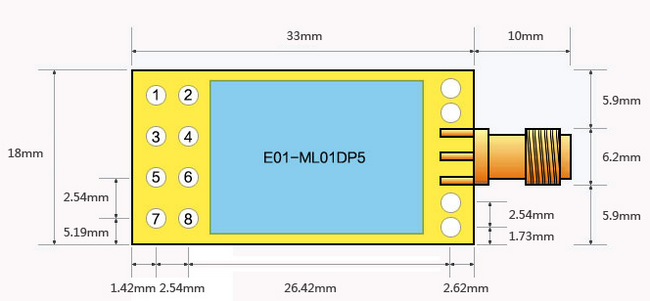

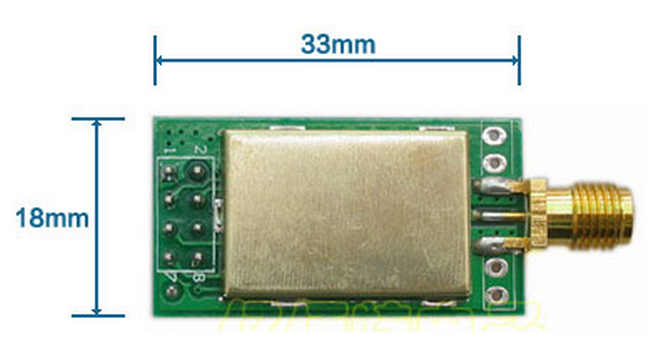

• Module Size：18 x 33mm
• interface method：2x4x2.54mm（can use universal board or Dupont Line）

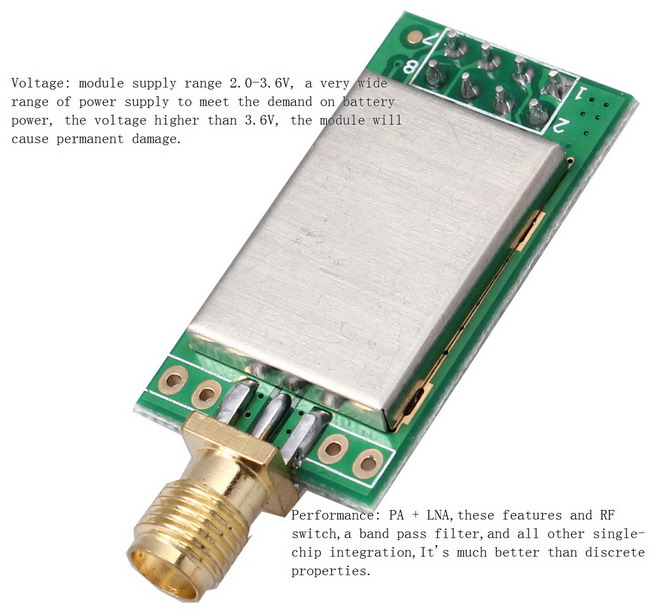

• Power Supply：2.0V——3.6VDC
• Measured distance：1300m
• Communications levels：0.7VDD——5.2VDC
• Maximum power：20dBm（about 100mW）
• Gbps：250k,1M,2M, Adjustable
• Emission current：95mA
• Sinks current：20mA
• Communication interface：Standard SPI mode
• Transceiver length：single packet：1—32 bytes，3 FIFO buffer
• RSSI support： Does not support the true meaning of RSSI,Only supports packet loss statistics
• Working temps：-30℃~+85℃
• Working Humidity：＜90% RH
• Storage Temp：-40℃~+125℃
• Operating frequency：2400MHz-2525MHz（1MHz step ）
• Receiving Sensitivity：-106dBm@250Kbps -96dbm@1Mbps -92dbm@2Mbps

Pin Definitions：

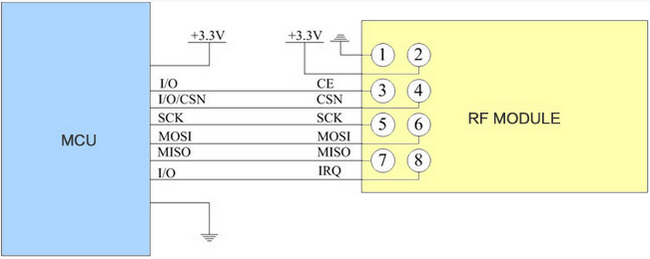

Circuit diagram：

Testing Data

Environment test:

• Test Location: Chengdu
• Weather: Sunny
• Real-time temperature: 20 ℃
• Wind: North 5-6
• Default Setting
• Air rate: 250 k
• Supply voltage: 3.3V
• Test Results
• Test models:E01-ML01DP5

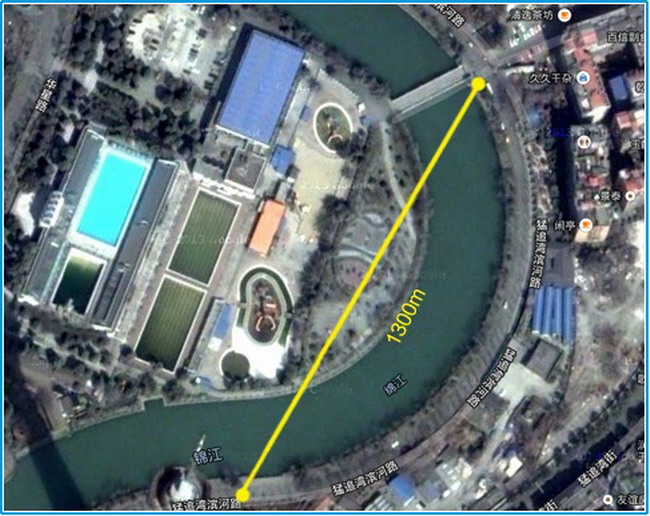

• Measured distance: 1300m
• Packet loss rate：no more than 5%
