Product Features

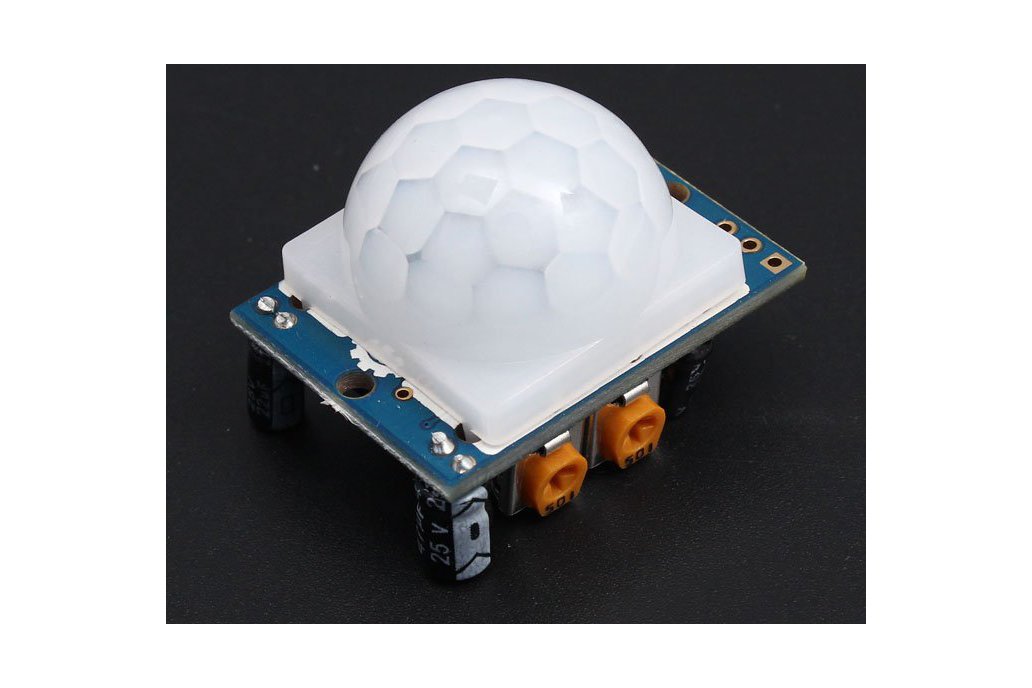

ICSG010A is the automatic control module based on infrared technology.

D203S probe design, high sensitivity, strong reliability, ultra low voltage mode, widely used in all kinds of automatic induction electrical equipment, especially automatic control product dry batteries.

Electrical Parameters

• Voltage Range:4.5-20DV
• Static Current:<50uA
• Output Level:High 3.3 V /Low 0V
• Trigger Mode:L No Repeated trigger /H Repeated trigger
• Delay Time:0.5-200S(adjustable) can be produced range 0.1 seconds - a few minutes
• Blocking Time:2.5S(Default) can be produced range
  0.1 seconds, tens of seconds
• Circuit Board Size:32mm*24mm
• Working Temperature:-15-+70 deg
• Induction Lens Size:Diameter:23mm(Default)

Function Features

• Automatic induction: people into its sensing range outputs high level, people leave the sensing range automatic time delay closing high, a low output level.
• Photosensitive control (can choose, the factory did not set) can be set to a photosensitive control, day or when light is strong not induction.
• Temperature compensation (optional, the factory did not set): when the environment temperature is increased to 30 to 32 DEG C in the summer, the detection distances lightly shorter, temperature compensation for compensating the performance of certain.
• Wide operating voltage range: default working voltage DC4.5V-20V.
• Micro power consumption: static current <50 automatic control products, especially suitable for dry batteries.
• Outputs a high level signal: convenient and various circuit to achieve docking.

Usage Method

1. Induction module is energized after a minute or so initialization time, during this module will output 0-3 time intervals, to enter the standby mode after a minute.
2. Should try to avoid light interference sources close to the lens surface reflection module, to avoid the introduction of interference signal malfunctions; use of the environment to avoid the flow of wind, wind sensor will also cause interference.
3. Induction module using a dual probe, the probe window is a rectangle, dual (A and B) two end in long direction, when the human body from left to right or right to left walk, infrared spectroscopy to dual time, distance difference, difference is bigger, more sensitive induction, when the human body from the positive to the probe or from top to bottom or from bottom to top through, dual detection not to change, infrared distance without difference, so the inductive insensitive or does not work; so the sensor should be to probe dual direction with the largest number of human activities to the parallel , guarantees the human body after in order to probe the dual induced by. In order to increase the angle sensing range, the module using a circular lens, also makes the probe by induction, but both sides still than the induction range under the direction of two large, sensitivity, still as possible when installed according to the above requirements.

Sensing Range

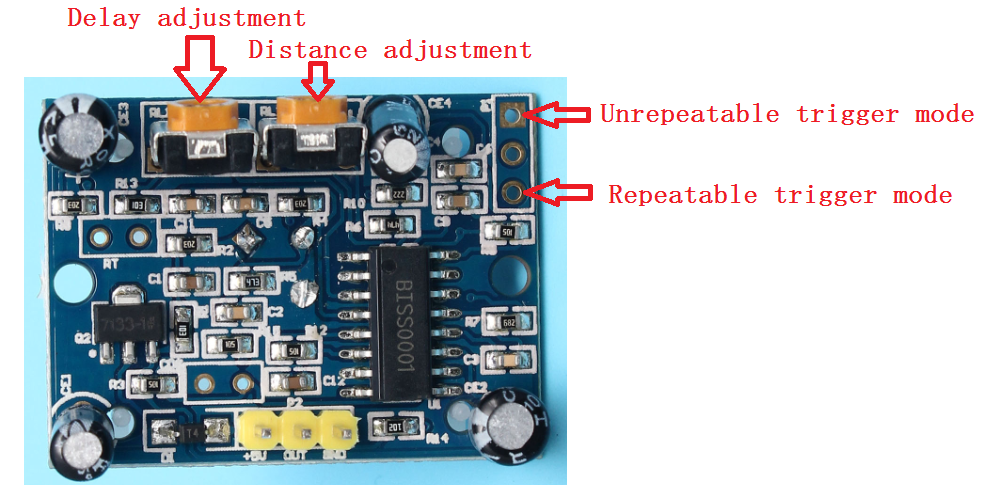

Shape And Regulation

Scope Of Application

1. Security products
2. PIR toys
3. PIR light
4. Industrial automation control

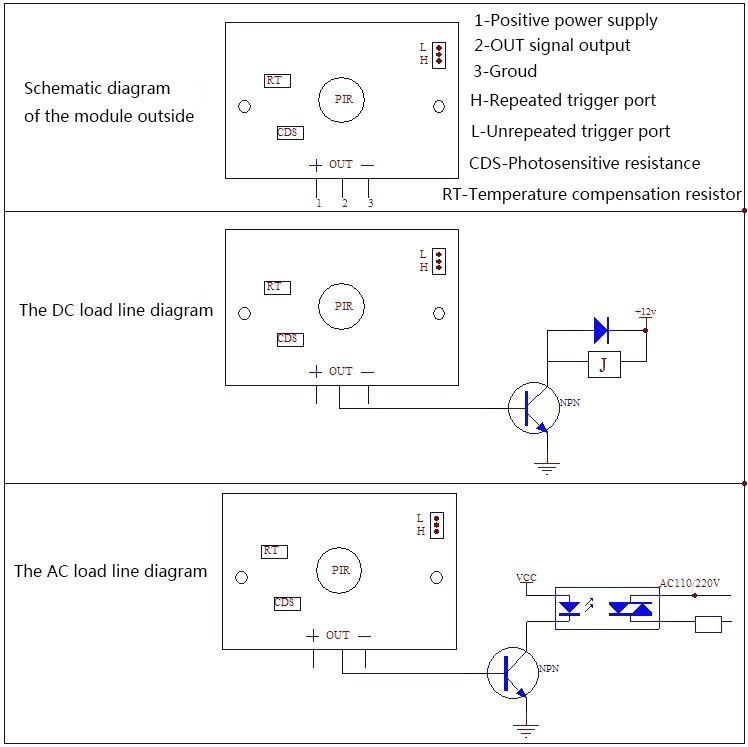

External Use
