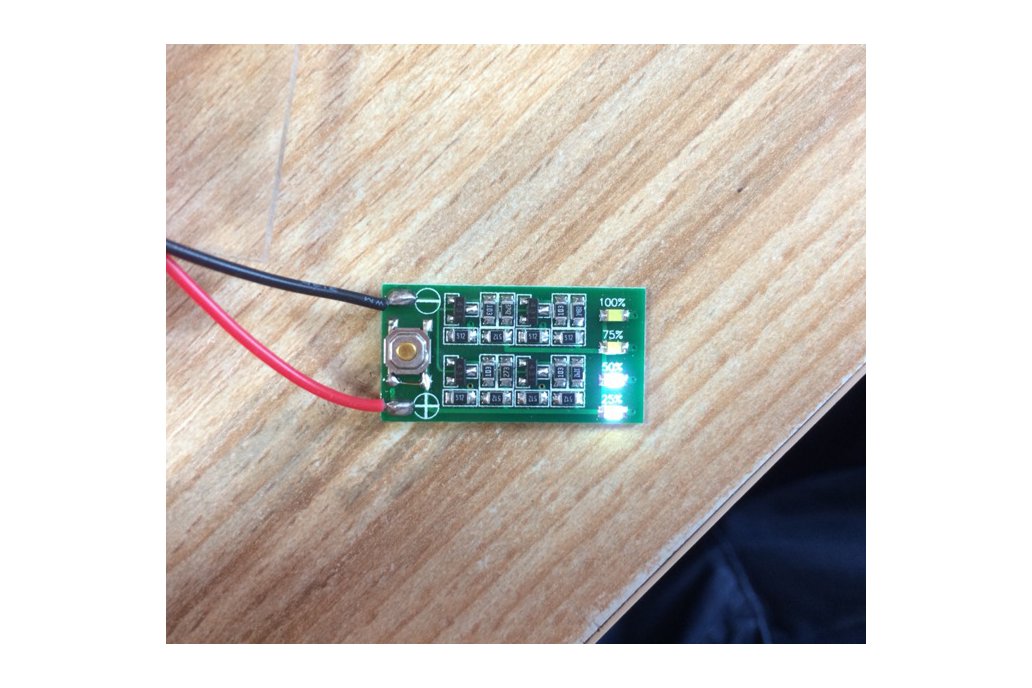

This is a 3S 12.6V Lithium battery power display panel.
Sold By ICStation
This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
Electrical Parameters: No. Parameter Min value Typical value Max value Unit Content Standby current(SW=OFF) 0 0 0 uA Content Operate current 5 20 25 mA Content Input voltage 9 12.6 26 V …
Read More…| No. | Parameter | Min value | Typical value | Max value | Unit |
|---|---|---|---|---|---|
| Content | Standby current(SW=OFF) | 0 | 0 | 0 | uA |
| Content | Operate current | 5 | 20 | 25 | mA |
| Content | Input voltage | 9 | 12.6 | 26 | V |
| Content | Display accuracy | 0.5 | 1 | 2 | % |
| Content | 25% voltage range | 10 | 10.7 | V | |
| Content | 50% voltage range | 10.7 | 11.3 | V | |
| Content | 75% voltage range | 11.3 | 11.9 | V | |
| Content | 100% voltage range | 11.9 | 12.6 | V | |
| Content | Ambient temperature | -40 | 25 | 85 | Celsius |
Warm tips:
