Feature:

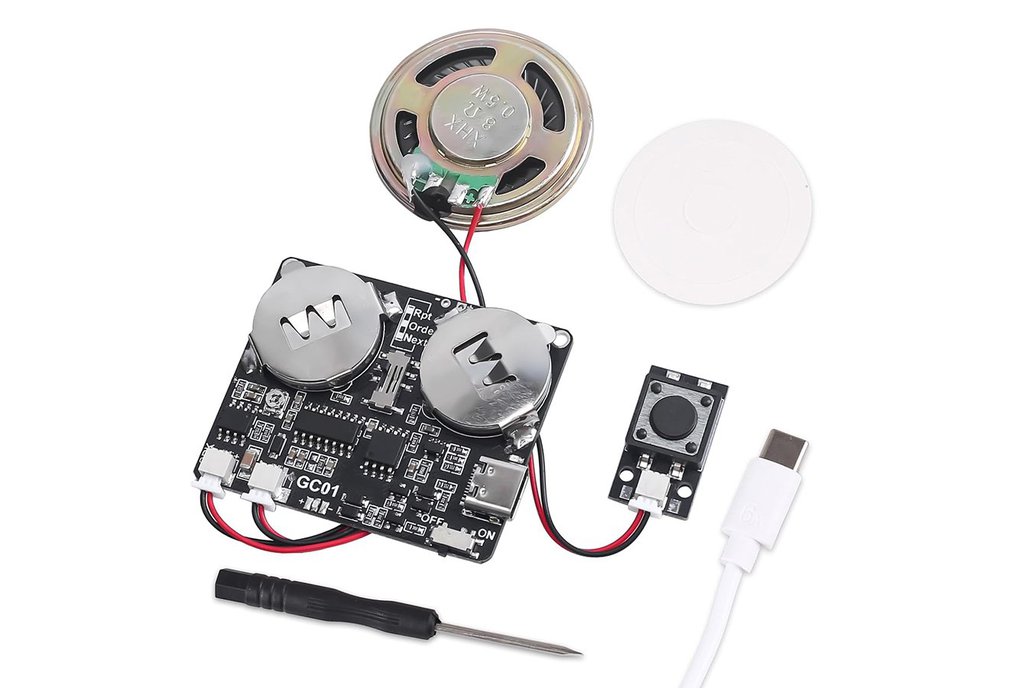

【Rechargeable & Downloadable】 The Icstation sound module includes a convenient Type-C power cord, enabling seamless charging via its dedicated interface. For Windows users, this voice module acts as a portable USB device, allowing you to effortlessly download your favorite tunes directly onto it. (Note: Compatibility is limited to Windows computers.)

【Three Playback Modes】Single Loop Mode: Discover a tune you adore? Simply activate loop mode to enjoy it repeatedly until your heart's content. Keep the melody going as long as you desire. Sequential Play Mode: Experience your music library in order, from the very first track to the last. Effortlessly control playback—press the button to pause whenever you wish. Next Song Play: This mode ensures seamless transitions. If a song doesn't suit your mood, simply press the button to skip to the next tune in your preloaded music collection.

【Customizable Volume Control】 Concerned about the volume output of your voice module? Our product offers adjustable volume settings tailored to your preferences. Go as loud as you like or as subtle as a mosquito's whisper. With the included screwdriver, you have the flexibility to fine-tune the volume knob to your desired level, ensuring a personalized listening experience.

【8MB Storage Capacity】The Icstation sound module features 8MB of memory, ample space to hold all your favorite tunes. Simply connect the module to your computer via a USB-Type-C cable to seamlessly add new audio files to its internal storage. This versatility grants you the freedom to personalize your audio library, enabling you to effortlessly update and tailor the stored music to match your evolving preferences and hobbies

【Double-sided Tape】The Icstation sound module comes equipped with double-sided tape, enabling effortless detachment and attachment to any voice module. With its self-adhesive backing, you can affix it wherever your heart desires, crafting a one-of-a-kind musical preset that adds an extra layer of personalization and possibility to your souvenirs.

Troubleshooting:

A. If the computer does not recognize the module:

• Please use USB data wire but not use USB power wire.
• Support windows only.

B. If it can't play music:

• Format the module first and then insert the music file.
• Micro USB is used to update the voice file and cannot provide the power needed for playback. So it can not play music if just connect USB.
• Please remove USB before play music.

Icstation Music Player Sound Module with Speaker 8M

Button Control for DIY Musical Christmas Gift It is ideal to make a DIY music box, musical greeting cards, memorabilia, photo frames, album, gift box and the other creative gifts. Install it in your project/gift, and then push the button. Your music which you put in it will be played once and automatically stop when the song finishes.

It has 8M memory with programmable design, just use your smart phone USB cable can update the music.

• Power Supply Voltage:4.5-5V or 3.7V lithium battery
• RAM:8M
• Output:0.5-1W
• Control mode:button / TTL
• Board Size:30x30mm Speaker Size:D36mm

Control mode

• In the table,‘0' means having 3.3K resistor; '1' means without 3.3K resistor.

• You can see that there are 3 resistors on the board, so the default mode is 000 (It will play the music once you press the button. If you press the button again during playing, it will stop immediately)

• You can change to other mode by removing the resistor on the board. For example, if you want to set 001 (Under this mode, you need to hold down the button to play the music. It will stop once you release the button.), you need to remove the third resistor that marked C on the board. To remove the resistor, you need a soldering iron to melt the solder and take the resistor away. It is a little difficult if you are not good at soldering so we recommend you to use 000 default mode.

Power-ON-Play mode

It will enter Power-ON-Play mode if short circuit between two pads of button. That is to say, it will play voice immediately when power on.

Instructions

• Connect 4.5V~5V non-rechargeable battery power;
• Press the button, and you will hear a test music which is a Chinese song. Press the button during playback, then it will stop playing immediately.
• Connect the module to computer by USB cable; SUPPORT WINDOWS ONLY
• It is recognized by computer as a USB drive, just like a MP3 player, and you're free to add any MP3/WAV audio file to the internal storage as long as it doesn't go over the 8MB limit;
• Do not forget to delete the default audio file;
• Repeat Step 2 to see if the module work well. Adjust the volume to a suitable degree.
• PLEASE NOTE: The USB cable is used to update music, not to play. When playing music, you need to connect the battery with the red and black wires.
