1. Introduction:

This is a DIY game console that users can install by themselves to play games. It contains 5 games: Tetris, Snake, Plane, Racing, and Fruit Slot. Users can not only learn circuits and practice welding skills, but also enjoy the fun of the game.

2. Feature:

• Built-in 5 classic games
• Built-in game background music
• Adjustable display backlight
• Real-time game scores
• Power-off memory function

3. Parameter:

• Work Voltage:DC 4.5V~5.5V
• Work Current:100mA
• Work Temperature:-40℃~85℃
• Work Humidity:0%~95%RH
• Size(Installed):109x80x23mm

4. Application:

• Training welding skills
• Student school
• DIY production
• Project Design
• Electronic competition
• Gift giving
• Crafts collection
• Home decoration
• Souvenir collection

5. Installation Tips:

• User needs to prepare the welding tool at first.
• Please be patient until the installation is complete.
• The package is DIY kit.It need finish install by user.
• The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.
• Pay attention to the positive and negative of the components.
• Strictly prohibit short circuit.

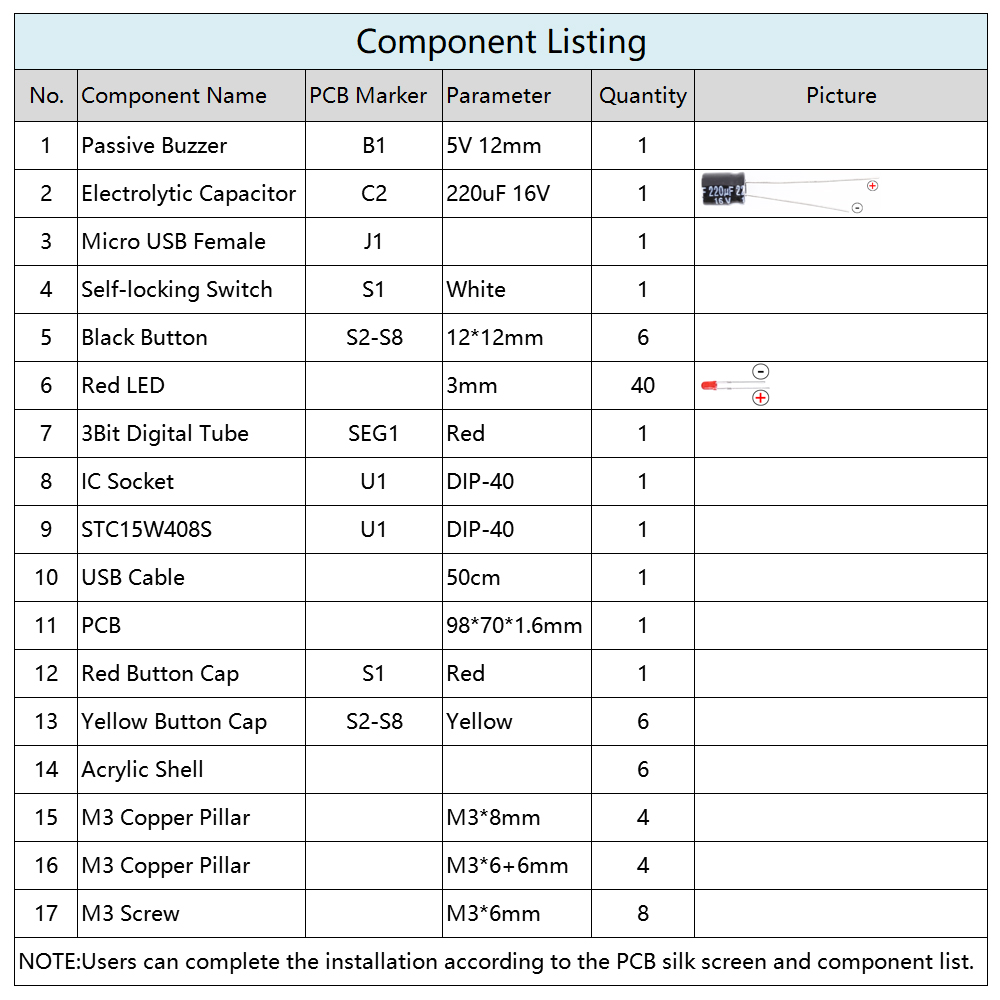

• Users can complete installation by PCB silk screen and component listing.
• User must install the LED according to the specified rules.Otherwise some LED will not light.
• Install complex components preferentially.
• Make sure all components are in right direction and right place.
• It is strongly recommended to read the installation manual before starting installation.

6. Installation Steps:

• Step 1: Install 40pcs 3mm Red LED.Pay attention to the positive and negative of the components.The longer pin is positive pin.
• Step 2: Install 1pcs Micro USB Female Socket.
• Step 3: Install 1pcs 5V 12mm Passive Buzzer.Pay attention to the positive and negative pole and there is a mark on buzzer.
• Step 4: Install 1pcs DIP-40 IC Socket.Pay attention to the installation direction.
• Step 5: Install 6pcs 12*12mm Black Button.
• Step 6: Install 1pcs 3Bit Red Digital Tube.
• Step 7: Install 1pcs 220uF 16V Electrolytic Capacitor.Pay attention to the positive and negative of the components.The longer pin is positive pin.
• Step 8: Install 1pcs Self-locking Switch.Pay attention to the installation direction.
• Step 9 Install 1pcs DIP-40 STC15W408S Controller on IC Socket.Pay attention to the installation direction.
• Step 10: Install 1pcs Red and 6pcs Yellow Button Cap.
• Step 11: Install copper posts.
• Step 12: Remove the protective film from the acrylic surface.
• Step 13: Install the acrylic case.
• Step 14: Input work voltage from micro USB and test and Application.
