ICStation Development Board
Designed by ICStation in China
This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

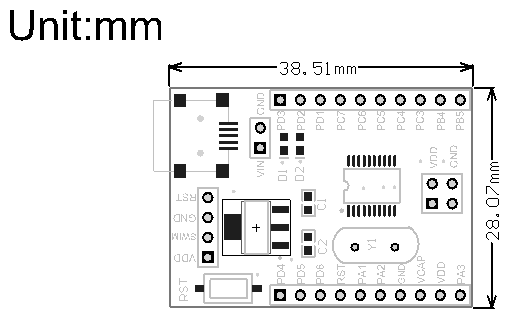

Specification Chip:STM8S003F3P6 Voltage:3.3V/5V(USB port) PCB size:38.5*28mm Application Range STM8S003F3P6 is based on 8 bit frame structure,it has abundant resource. Features 1.Control chip is ST…
Read More…STM8S003F3P6 is based on 8 bit frame structure,it has abundant resource.

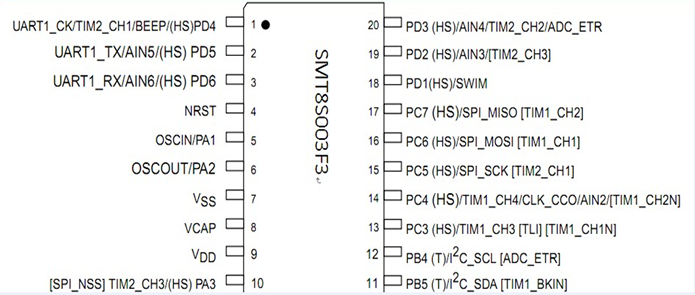

1.Control chip is STM8S003F3P6
2.All pins can be available,and mark pins,but male pins should be welded by customers in person(Customers should provide your own male pins)
3.Support SWIM debug mode
4.There be two power supply mode,USB MINI wire and 2.54 male pin
5.You can choose crystal oscillator outside.
6.PD3 pin,connect with a LED lamp,in order to debug.
