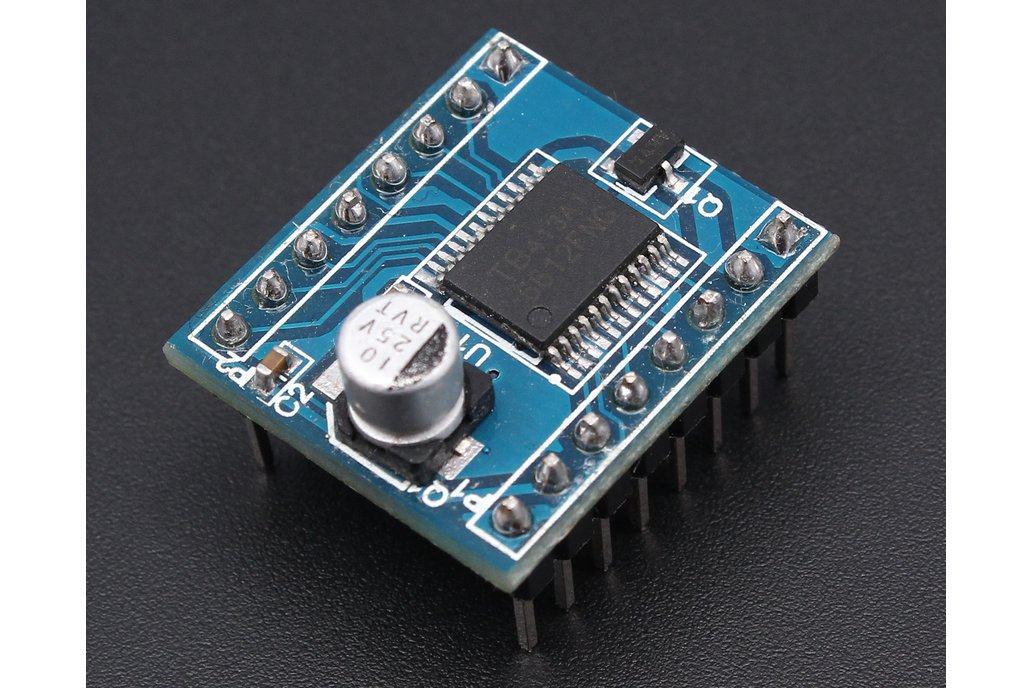

Parameters

• Supply voltage (VCC): 5V
• Motor supply voltage (VM): 5V ~ 13.5V

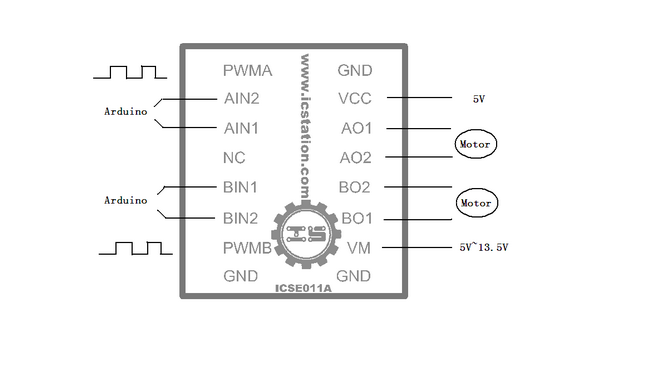

Interface:

• AIN1, AIN2
• Channel A input
• AO1, AO2
• Channel AOutput
• BIN1, BIN2
• Channel B input
• BO1, BO2
• Channel B Output

Description

1) TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak).

2) The MOSFET-based H-bridges are much more efficient which can drive two motors.

3) Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse).

4) The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.

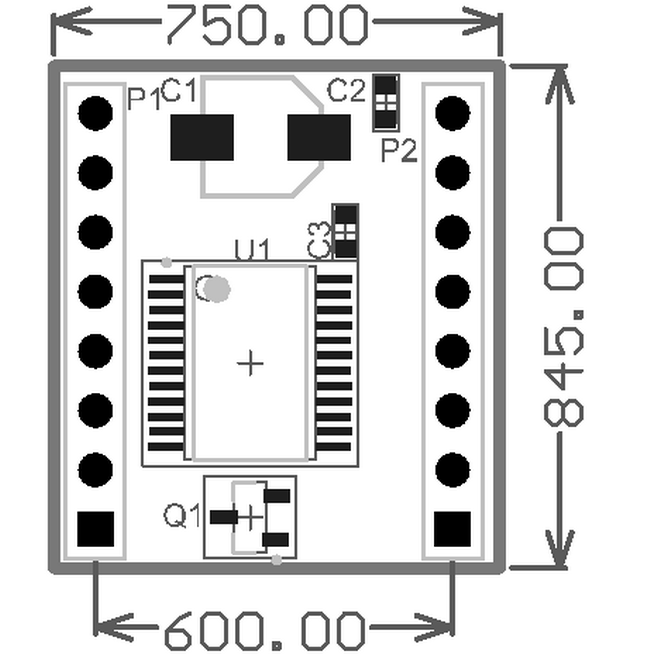

Size

Unit: mil

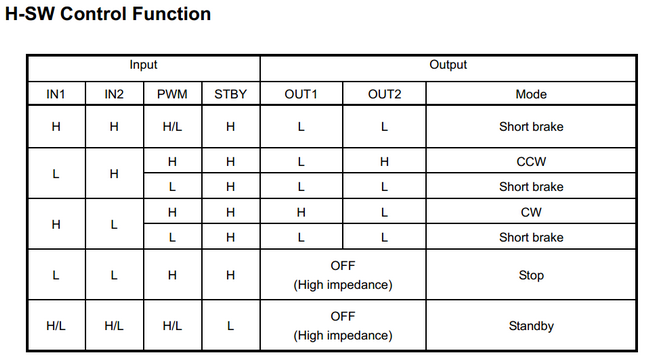

How to use it?

Arduino used to control the different level of AIN1, AIN2 or BIN1, BIN2 to achieve different functions. Motor speed is up to PWM.
