Description:

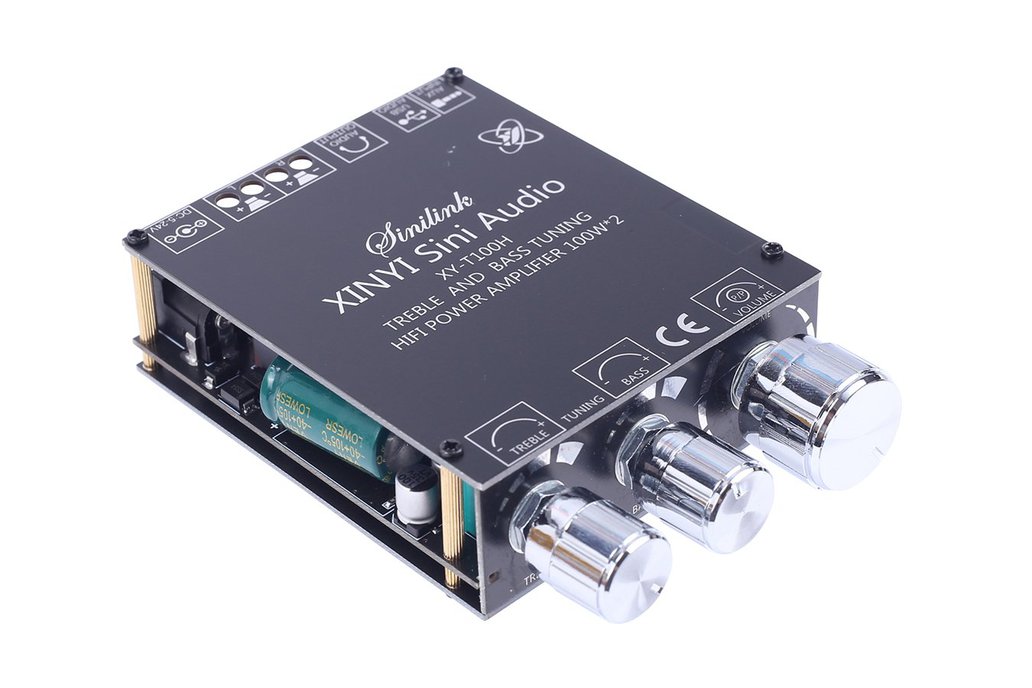

• XY-T100H is a DC 12V 24V 100W+100W HIFI Bluetooth 2.0 Amplifier Audio Module with Stereo Treble Bass, perfect for DIY wireless Bluetooth speakers and transponders. This module can receive Bluetooth music, as well as AUX and USB audio input.

• This Bluetooth amplifier module is ideal for those who want to add a surround sound experience to their home theater, KTV, outdoor parties, and more. With its powerful 50W output and adjustable volume control, you can customize the sound according to your preference. It is also easy to install and use, allowing you to enjoy an immersive sound experience with minimal effort.

Features:

• Treble/Bass: It has a built-in TPA3116D2 amplifier chip and adopts the Bluetooth version 2.0 specification which can drive 100W*2 Stereo with aluminum heat sink with DC 5V-24V work voltage and more than 10A current. Supports independent volume adjustment for treble/bass.

• Bluetooth APP Control : It can not only be used as an ordinary Bluetooth receiver, but also use the special Bluetooth APP ‘SiniLink’ to Modify Bluetooth Name, ON/OFF Bluetooth Password, Modify Bluetooth Password, ON/OFF Prompt Voice, Adjust Volume for Prompt Voice.

• HIFI Player: It can provide pure HIFI music playback, transparent treble, gentle baritone and shocking bass which meeting the music control needs of different scenarios. It also can support active audio output for headset or others amplifier and passive audio output for speakers.

• Bluetooth/AUX/USB Audio: It can not only receive music via Bluetooth, but also via AUX/USB to fit different needs.

• Protection Function: It has multiple protection mechanisms to ensure its safe operation with over-current protection, short-circuit protection, overheating protection, over-voltage protection, under-voltage protection. Recommended to use more than 10A current to get more clear, bright and high fidelity sound.

• Application: Perfect for home theaters, KTVs, outdoor parties, and more, this Bluetooth amplifier will improve sound quality and provide a surround sound experience. It is easy to install and use, equipped with an adjustable volume control, allowing users to customize the sound according to their preference. Furthermore, it also provides functions such as switching to the next music, playing/pausing music, and turning on/off the power.

Functions:

• Bluetooth APP Control
• HIFI Audio Player
• Bluetooth/AUX/USB Audio Input
• 100W+100W Dual Channel Stereo
• Modify Bluetooth Name, Password
• ON/OFF Bluetooth Password
• ON/OFF Prompt Voice
• Adjust Volume for Prompt Voice
• Active/Passive audio output
• 360° Infinite Adjust Volume

Parameters:

• Work Voltage: DC 5V-24V
• Work Current: >10A
• Bluetooth: BLE 5.0
• Controller IC: TPA3116D2
• Unique function: SiniLink APP control
• Channel: 2.0 channel stereo output
• Audio input type: Bluetooth/AUX/USB
• Audio output type: Left/Right
• Speaker Output: 20W-200W, 2ohm-8ohm
• Communication distance: 15meter(Max)
• Frequency Range: 20Hz-30KHz
• SNR: 92dB
• Over temperature protection: Yes
• Over current protection: Yes
• Short circuit protection: Yes
• Over voltage protection: Yes
• Under voltage protection: Yes
• Work Temperature: -20℃~85℃
• Work Humidity: 5%~95%RH
• Module Size(Installed): 102x70x25mm
