Introduction:

• It is a 5V programmable 64-bit RGB light board WS2812B full-color 8*8 color dot matrix screen LED module development board.

Feature:

• Fixation: Multiple M2 thread holes are preset.
• Control mode: The lamp board needs to be equipped with a full-color.

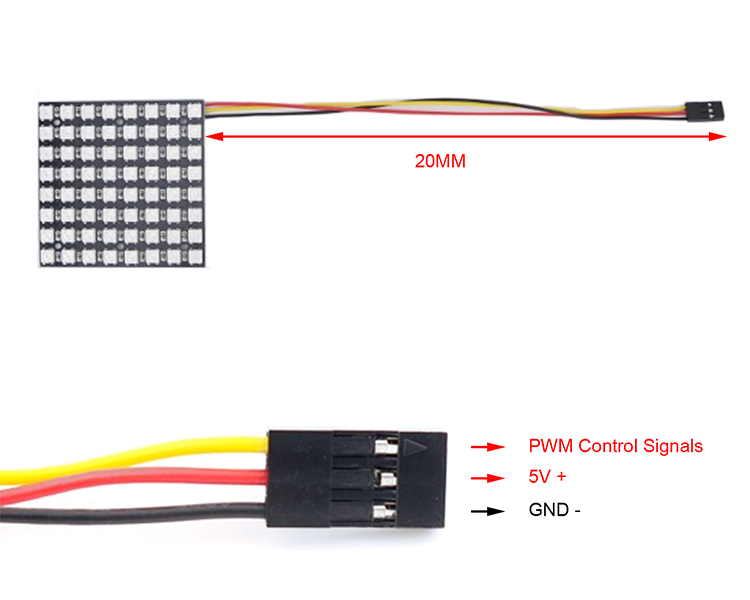

• 2054 pitch 3P line sequences are used for most Arduino expansion boards.
• Each RGB lamp can be independently controlled to display its effects.

Parameter:

• Product Model: 64-bit RGB light board
• Operating voltage: DC 5V
• Lamp bead power consumption: about 0.3W
• Number of lamp beads: 64 RGB lights per board
• RGB color: full-color RGB
• Luminous angle of light: 180°
• Work Temperature:-25℃~85℃
• Work Humidity:0%~95%RH

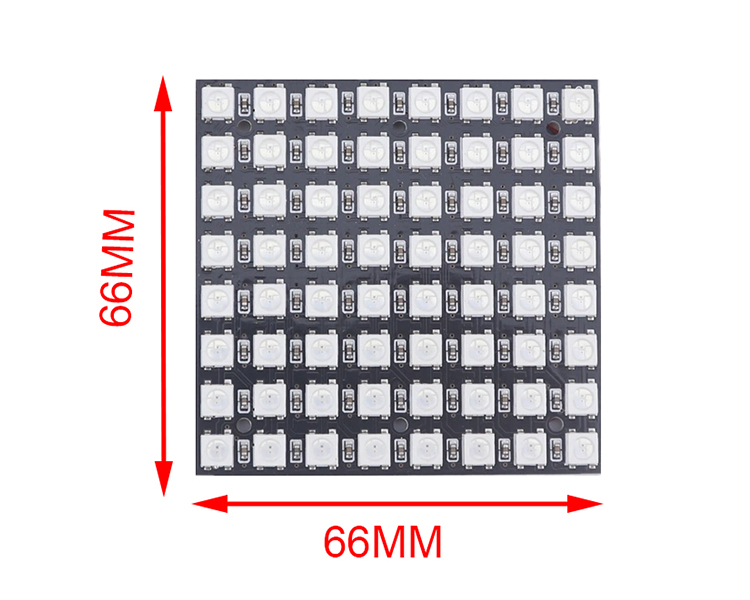

• Size: 66*66MM

Set Method:

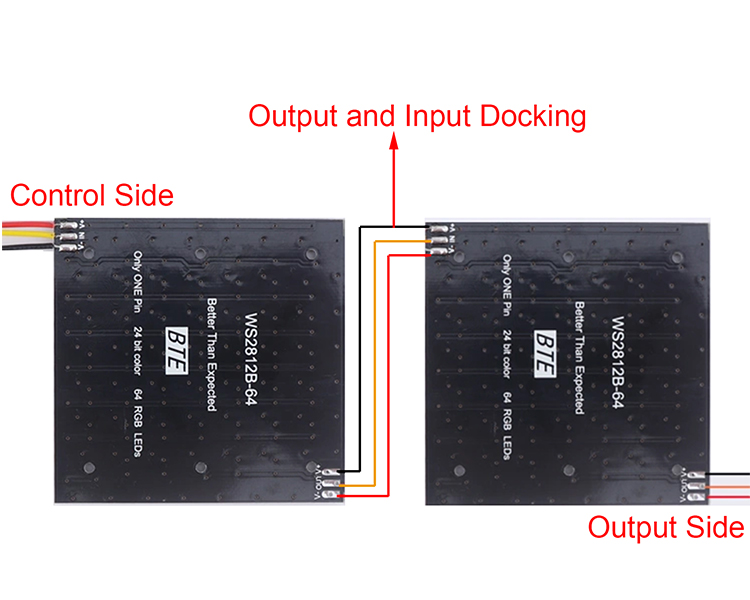

• Support multi-cascade control: When multi-cascade control, consider the size of the drive current: When more than two cascades, the power supply of the MCU development board cannot meet the work requirements, so it is recommended to use independent on/off power supply.
• Control mode: The lamp board needs to be equipped with a full-color controller or microcontroller programming (direct power-on cannot work).
