Product Introduction:

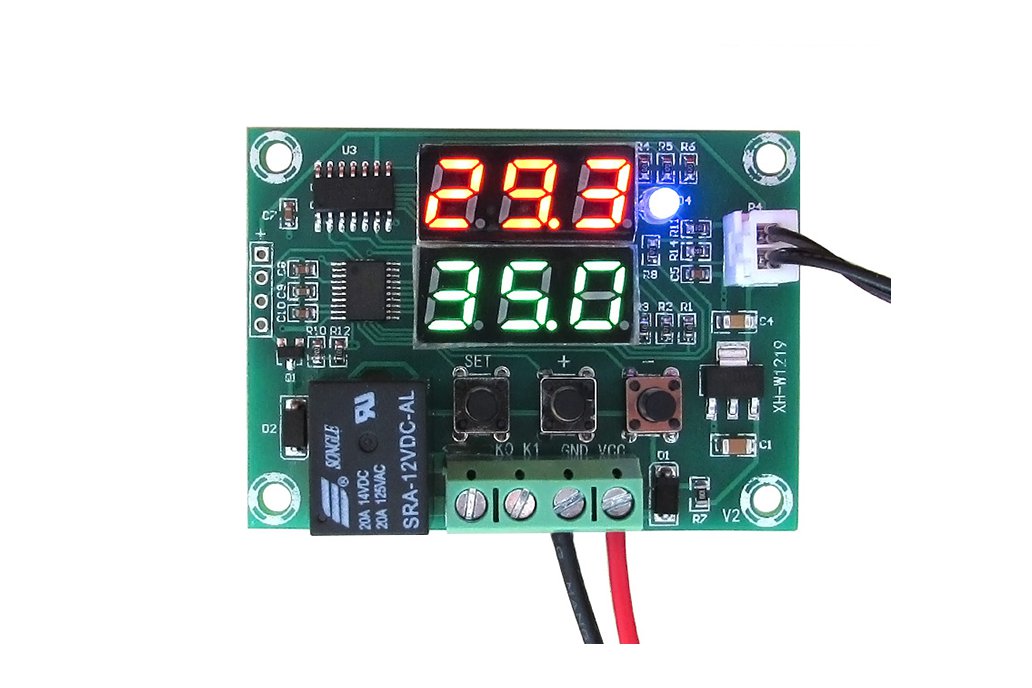

• Model: XH-W1219
• Control Range: -50~110 celsius
• Control Precision: 0.1 celsius
• Measuring Input: NTC10K waterproof sensor L=0.5m
• High Temperature Alarm: -49~110 celsius
• Input Voltage: DC 12V
• Output Type: relay output 10A (max)
• Return Difference Setting: 0.1~30 celsius
• Delay Starting: 0-10min
• Temperature Calibration: -10~10 celsius
• Size: 604316mm

Function Introduction:

• P0.Temperature Control Mode: when first use this product;if it is used to heating,please set H,if used to cooling,please set C.

• P1.Return Difference Setting: long press SET key entering into internal setting,choose P1 seting;then press SET key to achieve return difference value setting.

• P2: Temperature Calibration: this function is for temperature calibration.If detection temperature and actual temperature is different, then usrs can apply this function to calibrate.

• P3: Delay Start:this function is for compressor cooling

• P4: Set High Temperature Alarm Value:when actual temperature is higher than this value,screen will flash and sound an alarm.

Module Connection:
