Servo-actuated pen slide

Name: Servo-actuated pen slide
SKU: 3642
Price: 75.00 USD
Availability: Discontinued

Compact slide for pens, markers, crayons etc. Lift controlled with a hobby servo.

Designed by ijinstruments in United Kingdom

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From ijinstruments:

Celtic/Pictish circuit board drinks coasters

ijinstruments

$16.00

More From Robots & Drones

TFSLOT01: Clogging-Free Airspeed Sensor for UAVs

ThunderFly

$393.00

Bricktronics Shield

Wayne and Layne, LLC

$44.00

Compact slide for pens, markers, crayons etc. Lift controlled with a hobby servo.

What is it? It is a short-travel linear slide (10mm travel) which can hold pens, markers, crayons, or any other drawing instrument up to 16mm in diameter. The raised position is controlled by a stand…

What is it?

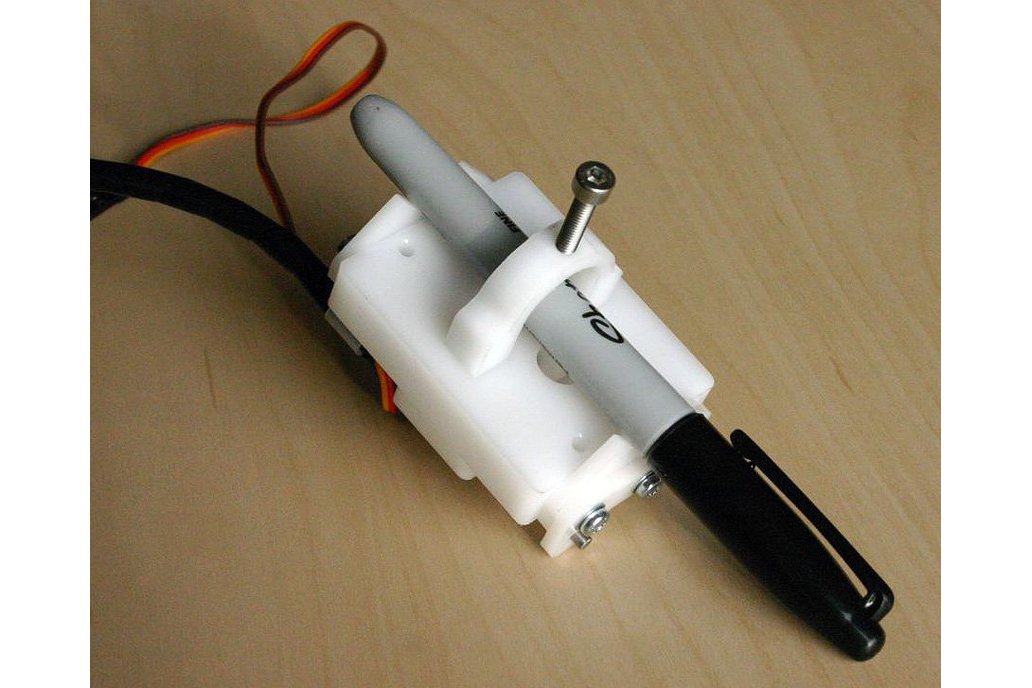

It is a short-travel linear slide (10mm travel) which can hold pens, markers, crayons, or any other drawing instrument up to 16mm in diameter. The raised position is controlled by a standard hobby servo (this is the same method used in the EggBot and WaterColorBot robots), whereas the down position is determined by where the pen contacts the drawing surface. The pen can float to follow irregular surfaces.

Why did you make it?

When I was designing the AxiDraw® drawing machine (see elsewhere in my store, or the website at http://www.axidraw.com), I needed a convenient, compact holder for the pen. I couldn't find anything so I designed this!

I decided to sell the pen slide separately since it's something I've often seen attempted online.

The entire slide can be mounted with a single M4 retaining screw + washer from the front.

Features:

10mm travel
Up to 16mm diameter pens (held in two V-notches with a single screw)
Standard hobby servo actuator
Compact: 8cm high, 5cm wide, 6cm deep (excluding pen screw)
Slides on two ground steel rails
All parts machined from Delrin plastic

Videos of operation:

You can see the pen slide in action attached to the AxiDraw® machine. This video shows the pen slide moving between the raised and lowered positions. You can see the slide actually drawing in this video, which also has tips on positioning the pen in the holder.
