Pre-order phase

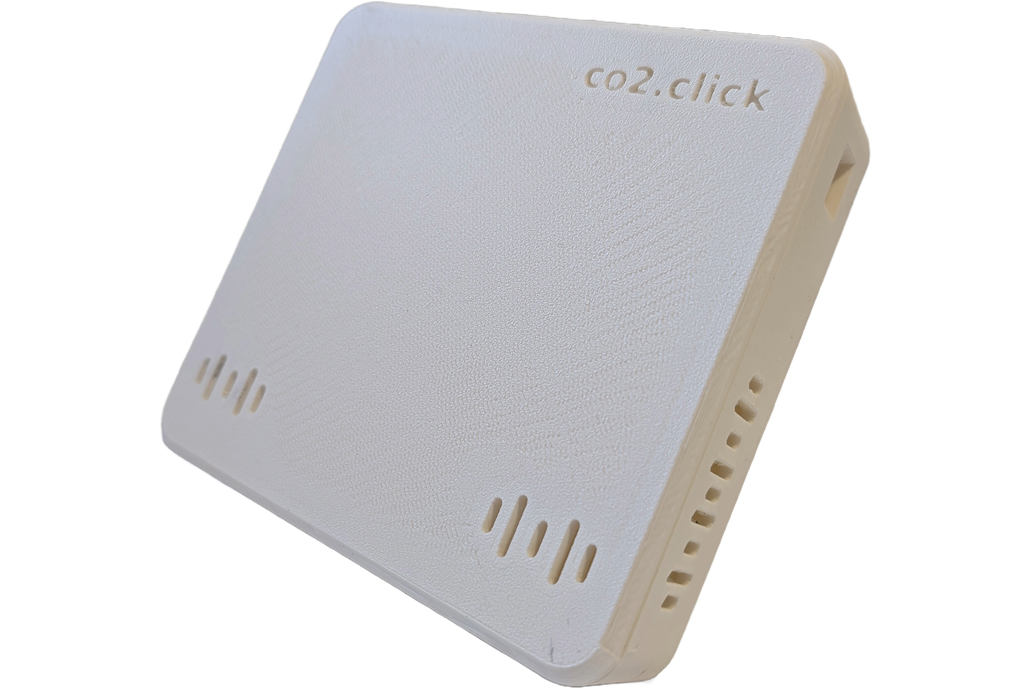

Pre-order Now: co2.click Model O -- A New Era of Air Quality Monitoring

Step into the future of air quality monitoring with the co2.click Model O. Designed with versatility, precision, and sustainability in mind, the Model O provides detailed insights into your indoor environment, ensuring healthier spaces for living, learning, and working.

Key Features

Comprehensive Sensor Array

• CO2 Monitoring: Powered by the advanced Sensirion SCD-30 dual-channel NDIR sensor for precise and reliable CO2 measurements.
• Particulate Matter Detection: Utilizing the Piera IPS-7100 7-bin sensor for accurate PM tracking.
• Vape and Smoking Detection: Improve air quality and safety in shared spaces.
• Luminosity Sensing (Optional): Monitor light levels to optimize your indoor environment.
• Sound Level Monitoring (Optional): Measure sound intensity with 9 dB accuracy.
• VOC Index: Track volatile organic compounds with the Sensirion SGP-40 sensor.
• Formaldehyde Monitoring (Optional): Protect against harmful pollutants with precise formaldehyde tracking.

Flexible Power Options

• USB-C or PoE (802.3af): Adaptable power inputs to suit any installation.

Smart Connectivity

• Wi-Fi and Wired Ethernet: Ensure reliable and fast data transmission.
• MQTT(S) Compatibility: Integrate effortlessly with third-party systems for advanced control.

Mounting Flexibility

• Wall-Mountable Design: Compatible with standard electrical box footprints, offering wiring options from the back or bottom for versatile installations.

Eco-Friendly Design

• Built with commercial off-the-shelf components and recyclable PLA materials (where facilities exist).

Long-Term Cloud Storage

• 48 months of data retention on the co2.click cloud portal, with free access for up to 5 sensors under the same account.

Why Choose co2.click Model O?

Whether you're enhancing air quality at home, creating healthier learning environments in schools, or ensuring optimal conditions in offices, the Model O delivers unmatched performance, reliability, and sustainability. Its modern design and cutting-edge features make it the ideal choice for today's dynamic spaces.

Specifications

• Dimensions: 133mm x 125mm x 30mm
• Construction: White PLA (3D-printed)

• CO2 Sensor

• Range: 0 to 10,000 ppm

• Accuracy: ±30 ppm + 3% MV (at 25 °C, 400 to 10,000 ppm)

• Particulate Matter Probe (Piera IPS-7100)

• Ranges: PM0.1, PM0.3, PM0.5, PM1.0, PM2.5, PM5, PM10 (PM0.1 interpolated)

• Accuracy: ±10 µg/m³ (0-100 µg/m³), ±10% (100-1000 µg/m³)

• Self-Cleaning: Every 7 days of continuous operation

• VOC Sensor

• Range: VOC index 0 to 500

• Accuracy: ±5 VOC Index points

• Optional Features

• Sound Level Monitoring:

  • Range: 35 dB to 120 dB
• Formaldehyde Monitoring:
  • Range: 0 to 5 ppm

• Luminosity Sensing:

  • Range: 0 to 140,000 lx

• Environmental Sensors

• Temperature Range: -40 °C to 70 °C

  • Accuracy: ±(0.4 °C + 0.023 x (T [°C] - 25 °C))

• Humidity Range: 0% to 100% RH

  • Accuracy: ±3% RH

• Operating Range

• Temperature: 0 °C to 60 °C

Optimize Your Indoor Environment Today!

Pre-order the co2.click Model O and take control of your air quality like never before. With its powerful features, sleek design, and eco-friendly construction, the Model O is the smart choice for health, safety, and sustainability.

Breathe easier and smarter---reserve your Model O today!

Availability

We're putting the final touches on the firmware and electronics, but you can secure your Model O now with a special pre-order discount. Shipping begins in February 2025!
