Perfect for any DIY IOT project, qBox Enclosure Plus Kit series is the part of the newest HW platform designed to help hobbyists, makers and all DIYers to build environmental ready IOT solutions.

• Flanged IP65 waterproof enclosure : Sealed, made of high-quality ABS material suitable for indoor and outdoor DIY IOT projects
• Incorporated M8 cable glands : Two cable inputs securely allow bringing the power in and connecting sensors and actuators
• Perfect fit PCB : High quality double sided PCB with 0.1" hole spacing for DIP integrated circuits, modules and main controller board
• Fixed placement for controller board : Well designed PCB allows to carry variety of MCU boards like Feather Compatible, Arduino MKR Compatible, NodeMCU, etc
• Built in SMA connector : One SMA Straight Female to IPEX（U.FL） adapter cable gives external antenna connection to your wireless board

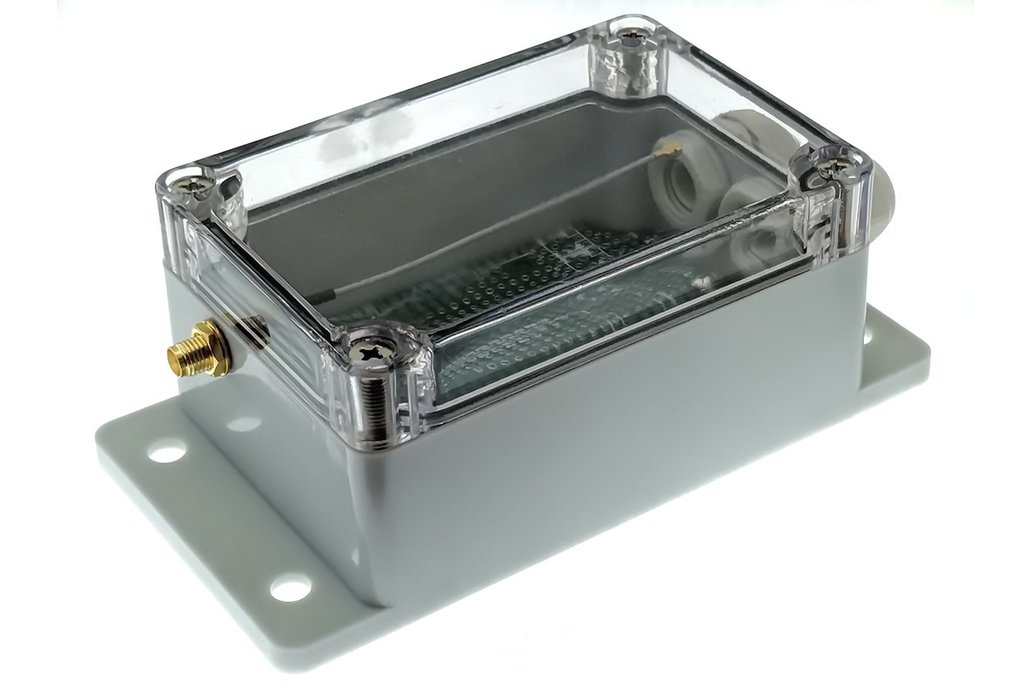

Each qBox Enclosure Plus Kit consists of durable waterproof IP65 enclosure with installed PG7 glands, double sided PCB with dedicated placements for IOT controller and connectors, one integrated SMA to u.FL adapter cable, connectors set and Arduino UNO board fasteners kit. External DC voltage from power adapter or solar system could be brought by cable through the one gland inner and another gland gives opportunity to connect external sensors or actuators. One LTE / WiFi / LoRa / etc. external antenna could be connected to wireless board u.FL connector via SMA to IPEX (u.FL) adapter cable glued into enclosure wall. Two M3 self tapping screws securely attach the PCB to the enclosure. Enclosure has enough room to keep with or without stacking header one controller board like Feather Compatible or Arduino MKR Compatible or another IOT board, power supply, OLED display and sensor modules using plain grid proto holes. Up to four pluggable 3,5mm terminal blocks, one Grove and several DIP 0.1" I2C and SPI interface connectors could be populated. Four holes and fasteners kit allow to mount Arduino Uno compatible board at the top of PCB. Transparent lid lets see electronics, LEDs and display and is able to hold LiPol battery to be applied to the internal surface.

Using qBox Enclosure Plus Kit the variety of IOT DIY projects could be done, like LoRa-based soil moisture monitoring project, NB-IOT bee hive monitoring system, GSM GPS tracking solution and many others.

What's included: - IP65 enclosure with two PG7 glands installed and one SMA u.FL cable glued; - High quality double sided PCB mounted with two M3 self tapping screws; - Arduino UNO board fasteners kit; - Connectors set (one 1x12 pin DIP 0.1", one 1x16 pin DIP 0.1", two 1x14 pin DIP 0.1", four sets of 3.5 mm 2 pins terminal blocks (socket and plug), one Grove 2mm DIP).

More info: https://github.com/iotbotscom/docs/blob/main/qBox-Enclosure-Plus-Kit/IBT-QBX-CON-X-UM_r11.pdf
