qBoxMini AMC DIY IOT Enclosure Kit (No SMA)

Name: qBoxMini AMC DIY IOT Enclosure Kit (No SMA)
SKU: 23149
Price: 20.95 USD
Availability: InStock

qBoxMini Arduino MKR Compatible DIY IOT Enclosure Kit (No SMA) for building environmental ready IOT devices.

Designed by IOT-BOTS.COM in United States of America

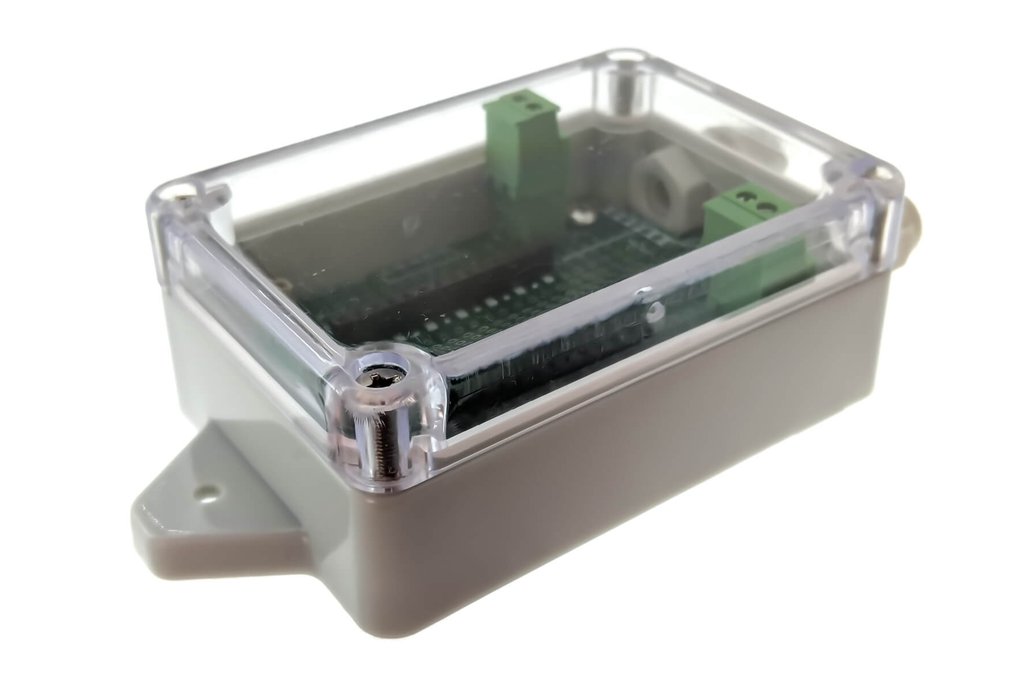

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 1

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 2

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 3

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 4

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 5

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 6

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 7

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 8

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 9

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 10

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 11

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 12

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 13

qBoxMini AMC DIY IOT Enclosure Kit (No SMA) 14















Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

qBoxMini Arduino MKR Compatible DIY IOT Enclosure Kit (No SMA) for building environmental ready IOT devices.

Perfect for any DIY IOT project, qBoxMini AMC Enclosure Kit series is the part of the newest HW platform designed to help hobbyists, makers and all DIYers to build environmental ready IOT solutions: …

Perfect for any DIY IOT project, qBoxMini AMC Enclosure Kit series is the part of the newest HW platform designed to help hobbyists, makers and all DIYers to build environmental ready IOT solutions:

Flanged IP65 waterproof enclosure : Sealed, made of high-quality ABS material suitable for indoor and outdoor DIY IOT projects;
Incorporated M8 cable glands : Two cable inputs securely allow bringing the power in and connecting sensors and actuators;
Perfect fit PCB : High-quality double-sided PCB with 0.1" hole spacing for DIP integrated circuits, modules, and main controller board;
Dedicated placement for controller board : Well-designed PCB allows to carry Arduino MKR Compatible MCU board;
Rich connectors set installed : Two terminal blocks, Grove, 4-pin JST and low profile 0.1" AMC interface connectors.

Each qBoxMini AMC kit consists of durable waterproof IP65 enclosure with installed M8 glands, double sided PCB with dedicated placements for IOT controller and connectors and integrated SMA to u.FL adapter cable (up to two, depending on kit model). External DC voltage from power adapter or solar system could be brought by cable through the one gland inner and another gland gives opportunity to connect external sensors or actuators. Two M3 self tapping screws securely attach the PCB to the enclosure. Same time board could be easily removed. Enclosure has enough room to keep Arduino MKR Compatible (AMC) IOT board, power supply (DC/DC), OLED display and sensor modules using plain grid proto holes. There are two pluggable 3,5mm terminal blocks, one Grove and one 4-pin JST (I2C&Power) connectors populated on PCB. And still several DIP 0.1" I2C interface connectors could be placed at PCB. Transparent lid lets see internal parts, electronics, LEDs and even display and is able to hold LiPol battery to be applied to the internal surface.

Using qBoxMini AMC kit the variety of IOT DIY and POC projects could be done, like LoRa-based soil moisture monitoring project, home WiFi garage door opener, NB-IOT bee hive monitoring system, LTE CAT M1 GPS asset tracking solution, etc.

What's included:

IP65 waterproof enclosure with two M8 glands installed;
High quality prototyping double sided PCB with set of connectors mounted with two M3 self tapping screws;
Two terminal block plugs.

More info: https://github.com/iotbotscom/docs/blob/main/qBoxMini-AMC-Enclosure-Kit/IBT-QBM-AMC-X-UM_r10.pdf
