Double Barreled IR Dazzler Blaster

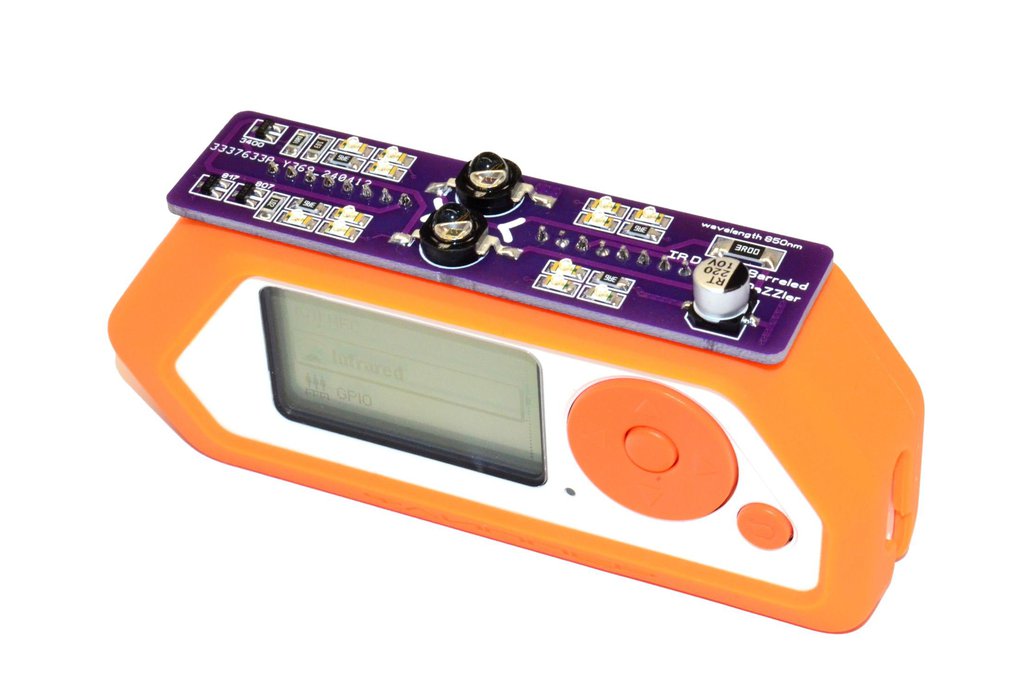

Enhanced IR Extension Module for Flipper Zero – Double Barreled InfraRed Dazzler Blaster

Features & Benefits of dazzler : 12 pcs smd IR leds with integrated lens and two high power 3W IR leds with crystal transparent silicon lens with beam angle 60 degrees.

Open Area Distance is up to : 100M=328Feet

Enhanced IR Capabilities: This module significantly boosts the infrared (IR) functionality of your Flipper Zero, equipped with 14 high-intensity IR LEDs to project a focused beam of IR light. The strategic placement of these LEDs, along with built-in LED lens, optimizes performance for a stronger signal.

Universal Remote Functionality: Transform your Flipper Zero into a versatile universal remote, capable of managing a wide array of devices such as TVs, projectors, audio/visual equipment, air conditioning units, fans, and heaters, offering you control at your fingertips.

Quality Construction: The module boasts a reflective coating to enhance IR signal reflection, a high-temperature PCB substrate for effective heat dissipation during extended use.

Sleek Design: Its slim profile ensures a flush fit atop the Flipper Zero board, designed to be compatible with 3D printed cases, and does not obstruct the device's form or functionality.

Why Choose This Module Over Flipper Zero’s Built-in IR?

While the built-in IR of the Flipper Zero is necessary for programming new IR signals, this extension module serves as a powerful transmitter, allowing for remote operation without direct line-of-sight to your devices.

While the built-in IR of the Flipper Zero is necessary for programming new IR signals, this extension module serves as a powerful transmitter, allowing for remote operation without direct line-of-sight to your devices. Perfect for enhancing the power beyond the built-in IR's capabilities.

850nm IR illuminator has the edge over the 940nm infrared LED as the former covers 50% more illumination areas. The light intensity of the 850nm infrared LED is about two to three times higher than that of the 940nm IR light.

In order module to work Correctly, you need to set the following settings: 1. Go to the "Infrared" menu and select "GPIO setting". 2. Switch "Send signal" to 2(A7) and "Ext Module 5v" to ON.
