ESP8266 Vertical Adapter with ESP-07, 4 MBit

Name: ESP8266 Vertical Adapter with ESP-07, 4 MBit
SKU: 5427
Price: 4.00 USD
Availability: Discontinued

EZY-E07 is an ESP-82666 (ESP-07) pre soldered onto the EZY-ADP breadboard friendly vertical adapter.

Designed by iron in Greece

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

More From IoT & Smart Home

HeishaMon communication PCB

TheHogNL

$20.00

UZG-01 - Universal ZigBee Gateway

ZigStar

$40.10

esphome-pressure

Greg's Tinker Town

$55.00

Open AIR Valve DIY Kit

TheFlamingo

$45.00

ESP8266 Vertical Adapter with ESP-07, 4 MBit 1


EZY-E07 is an ESP-82666 (ESP-07) pre soldered onto the EZY-ADP breadboard friendly vertical adapter.

EZY-E07 is an SMD to SIP Vertical Adapter Board WITH ESP8266, ESP-07 module. It is a breadboard friendly adapter as all pins are in a single straight 2.54mm spaced line. The 6xPIN programmer header l…

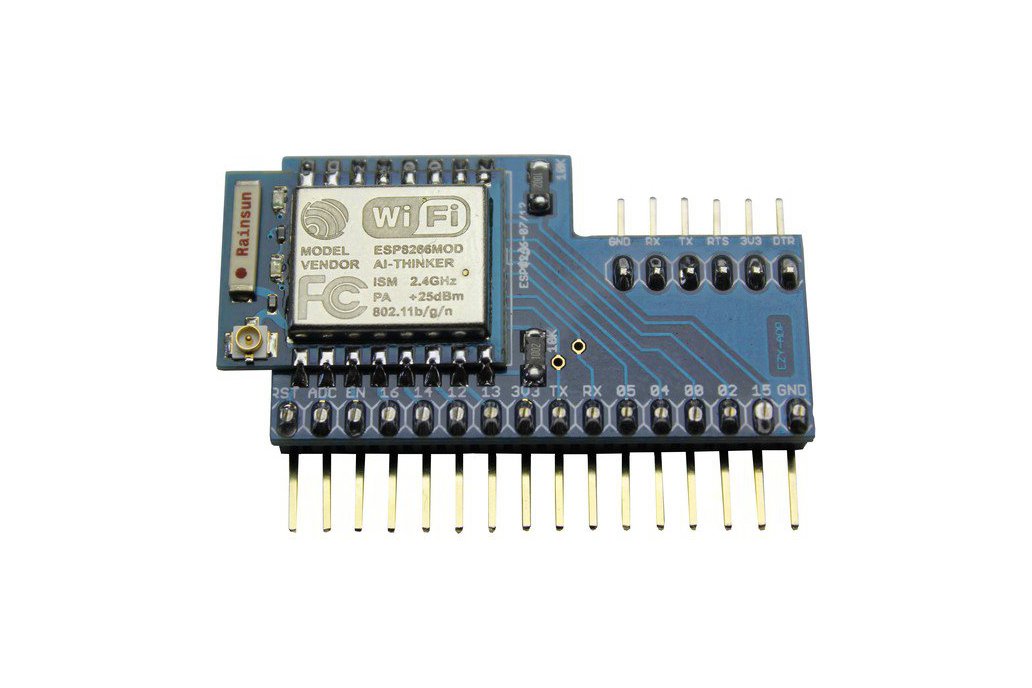

EZY-E07 is an SMD to SIP Vertical Adapter Board WITH ESP8266, ESP-07 module.

It is a breadboard friendly adapter as all pins are in a single straight 2.54mm spaced line.

The 6xPIN programmer header located on the top right is used for attaching the EZY-PRG (sold separately) USB to uart module.

The combination of EZY-E07 and EZY-PRG results to buttonless programming by utilizing GPIO-02 and RST pins temporarily to put the device in programming mode.

The package includes 1 x ESP07 4MBit, 1 x EZY-ADP adapter board, 2x10K resistors, 1x16 main pin header and 1x6 programming pin header.

Features:
