LightLines

Name: LightLines
SKU: 16102
Price: 79.00 USD
Availability: InStock

LightLines is a control board for lighting objects & projects. Set your scenes by smartphone or pc. Combine lighting and rgb strips .

Designed by Songlines bv in Belgium


2022-07-20T09:27:03.037Z-V2 texted top view..jpeg

2022-07-20T09:26:32.476Z-LigthLines V2.1.png

2022-07-20T09:27:03.037Z-V2 texted bottom view..jpeg

2022-10-12T20:04:27.916Z-webpage seq.png

2022-10-12T20:06:04.993Z-webpage ini config.png










Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

More info available Local users (Belgium) www.LichtMakers.be International www.LightLines.be

LightLines is a control board for lighting objects & projects. Set your scenes by smartphone or pc. Combine lighting and rgb strips .

What is it? LightLines is a small light controller board with wifi. (ESP32) It has 19 outputs (16 dimmable light sources and 3 rgb channels) to be configured via a webpage to fit your lighting needs…

What is it?

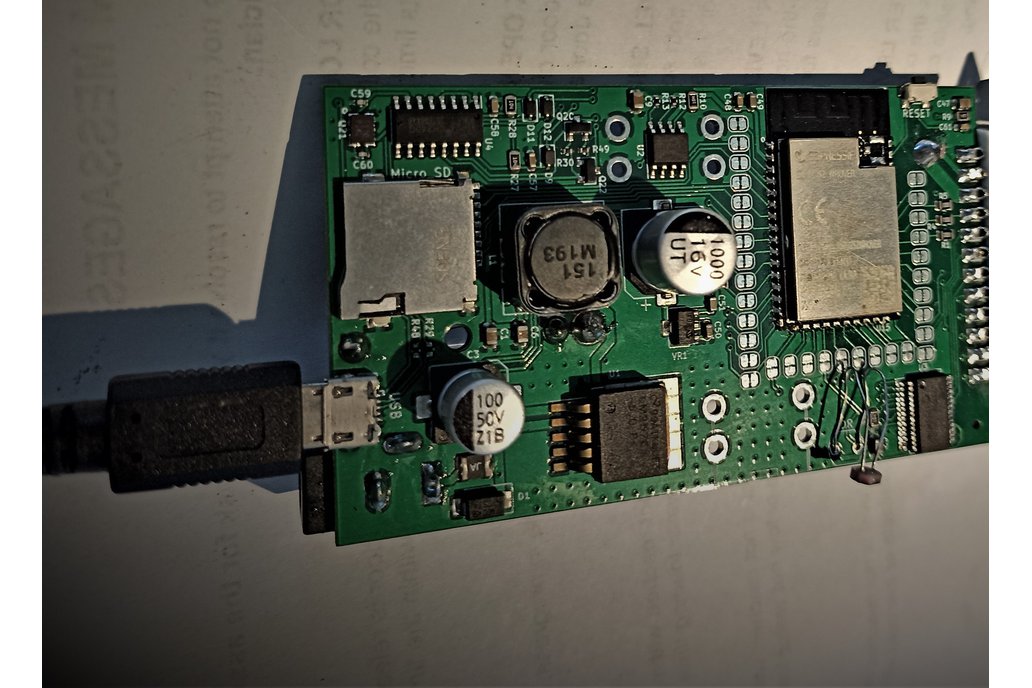

LightLines is a small light controller board with wifi. (ESP32) It has 19 outputs (16 dimmable light sources and 3 rgb channels) to be configured via a webpage to fit your lighting needs. LightLines is perfect for colorful patterns with addressable pixels (rgb-ledstrips), and it combines easily with lighting strips and/or bulbs. (see pictures showing examples of projects, see more in external docs) The controller is also perfect for HCL (healthy light) requiring tunable white and dynamic white. Firmware includes easy creation of dimming sequences and color patterns all stored in lighting scenes. (see picture)

Where can it be of use? Control of dynamic tunable-white light (cool uplight, warm downlight in one pendant) Timing/recurrent programming of circadian light schedules. (use integrated RTC) Combining light and color: large light objects, spots and strips combined. This controller finally offers max design freedom for a wide range of applications that require flexible lighting such as coworking-spaces with functional (and tunable) white and adds creative moods by colorscaping patterns.

LightLines is intended for small and large spaces because it is scalable. For rooms with poor daylight, LL is the way to go. You create circadian cycles without external electronics or home automation. LongLight pendant is a universal linear lighting that integrates circadian and mood light in one. Check our featured designs for dining-tables, indirect light, under-cabinet light

Why did you make it?

Because it will boost your creativity! LightLines offers a unique way of designing light systems that fit your personal taste. It is also perfect for simple, everyday use with a standard light switch.

What makes it special?

This board is made to mix lighting strips (24v/12v) with adressable rgb strips (5v). It offers three digital output channels for driving rgb strips with separate patterns. It also has a 16 channel output driver to control mosfets for dimming segments of lighting strips. This means you can cut the lighting strips and control each segment separately. An add-on board with 12 extra light channels is available in option. Connectors are not included. They are standard pitch 2.50 or 2.54mm available everywhere.Your choice to use screws or press/fit or simple pin headers.

The board will fit most of your dream projects. See examples. You can for instance create an horizontal color bar and add vertical lighting pendants which you can control separately. The software included lets you create patterns on the rgb strips and set your lighting segments via a web page in your browser or an app.

LongLight requires a single 24V/1A (2 mtr. strip) up to 5A (10 mtr. strip) DC adaptor (fixed voltage type)is not included, see availability from your local shop.
