Inductance-Capacitance Meter AVR - AtMega 328P

Name: Inductance-Capacitance Meter AVR - AtMega 328P
SKU: 29963
Price: 19.99 USD
Availability: InStock

Inductance and Capacitor Meter

Designed by JasonKits in Malta

Inductance-Capacitance Meter AVR - AtMega 328P 1

Inductance-Capacitance Meter AVR - AtMega 328P 2

Inductance-Capacitance Meter AVR - AtMega 328P 3

Inductance-Capacitance Meter AVR - AtMega 328P 4





Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Inductance and Capacitor Meter

What is it? This kit is an Inductance and Capacitance Meter using an AVR ATmega328P and an franklin oscillator. All credits goes to Nobcha from Japan for his work and who introduced me to this projec…

What is it?

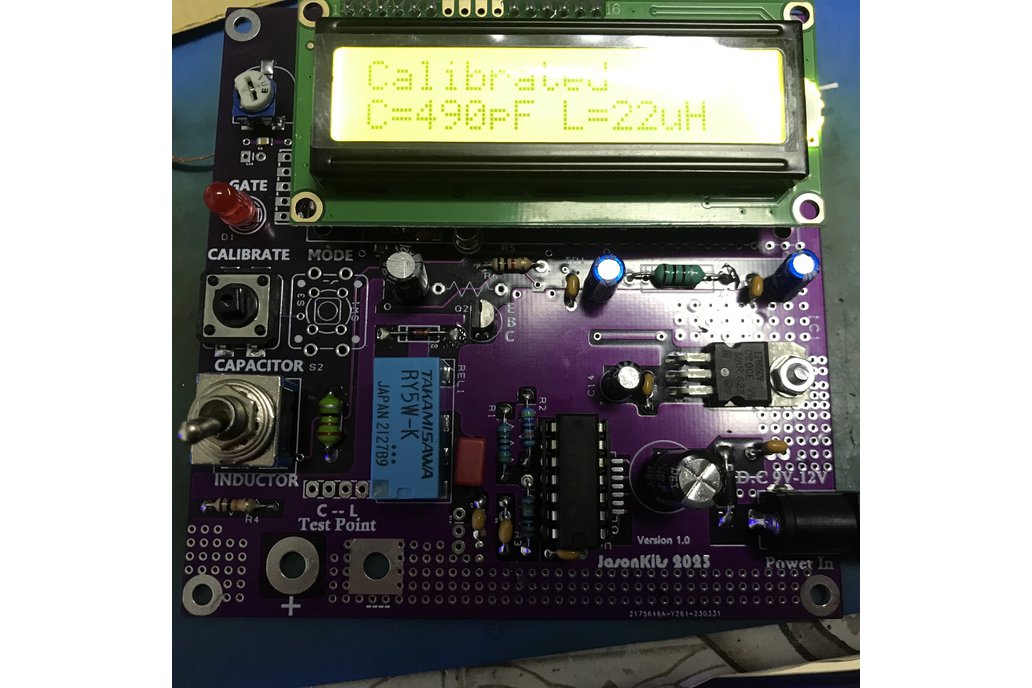

This kit is an Inductance and Capacitance Meter using an AVR ATmega328P and an franklin oscillator. All credits goes to Nobcha from Japan for his work and who introduced me to this project.

The working principle is very simple, during initial calibration the free running oscillator frequency is measured and when a component L or C needs to be measured the running oscillator will shift its frequency. With both frequencies available the processor runs some formulas (some math... ) where finally the capacitance or inductance is accurately Calculated.
