What is it?

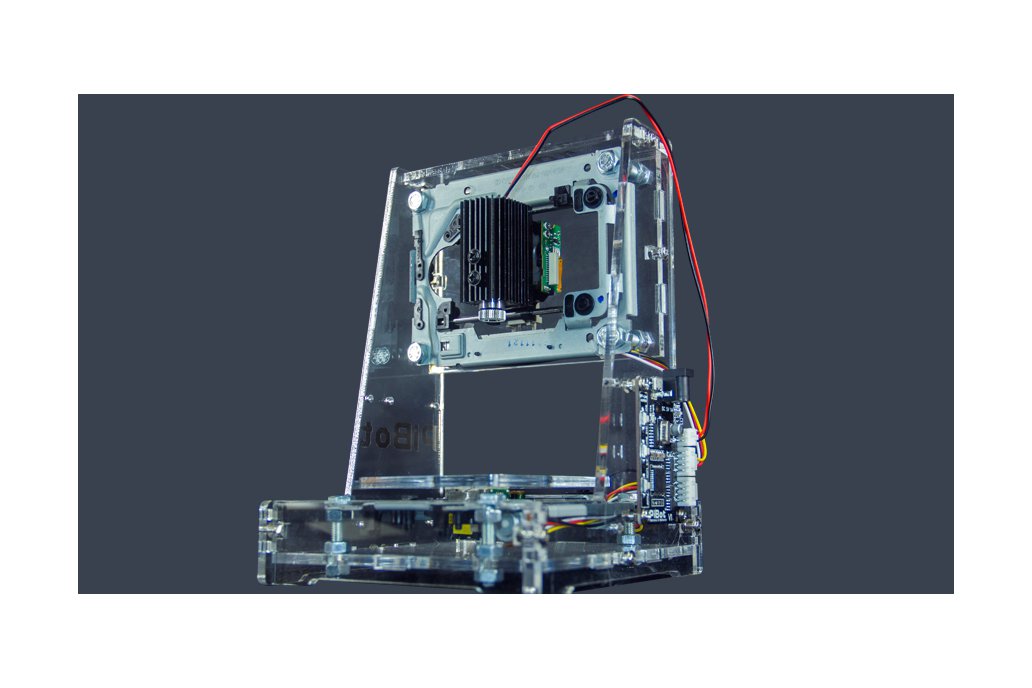

The pi bot is a very easy to use laser engraving machine. You can master it in less than a hour, Even though you don't have the experience in the skill of electronics and mechanics.It can engrave in material such as numbers, text, graphics, and even photographs on the surface of Wood, bamboo, plastic, leather, paper and so on.It cannot engrave on materials such as metal, glass, ceramic.

Specifications

The Engraving range is 38mm38mm, But in Theoretically the Power of Resolving Over 1136640(iphone 5s) pixels(need precious focus adjust)

The max size object you can put in the machine is width 110mm, height 50mm, length 300mm.

PiBot was designed from the ground up. starting from the PCB and improved the software to make the engravers laser power ,electronics and mechanical highly compatible.

The power of the laser is about 300mw - 500mw custom by PiBot, safety is used in your PC, and is enough for the mini laser engraver. About the Rev3.0, in the last two years lots of machines were sold and the Rev3.0 is the worldwide Version of our product, with all the experience we gathered we made the rev 3.0 frame made from a stronger acrylic and improved the PCB design and always keeping a high quality.

The overall weight is ?> 1.5kg

Specification

• Machine Size: 1800mm × 1300mm × 1400mm
• Engraving Range: 38mm × 38mm
• Max Size of Object Can be Engraved: Height - 35mm Width - 120mm
• Main Power Input: 5V-1A (one Normal PC is ok, but don't use the same port from one USB HUB)
• Power of Laser: 300-500mw
• Power of Resolving: Over 1136*640 pixels
• Operating System: WIN7 WIN8 WIN10 32bit or 64bit

Shipping List

• PiBot Laser Engraver Rev3.0 × 1
• USB Data Cable 1m × 1
• USB Power Cable 1m × 1
• A Set of Sample Woods for Beginner Learning × 1
• Safety Glasses × 1
