Features:

Commonly used in SSB, AM linear power amplifier, the CW, FM, power amplifier, and the most basic signal amplification.

Easy installation and operation.

Low noise, high cost performance, very suitable for DIY enthusiasts.

The kit is supplied with the necessary parts, Heatsink not Included

The overall gain more than 40db, which is 10000 times, 10W input 1mW output.

Specifications:

Input Power: 1-5mW

Output Power: 45W (Max.)

Input Voltage: DC 13.8V 10A or higher

Max. Output Power: 57W (not with cooling fan)

Output Impedance: 50 ohm, can according to need to adjust between 10-200 ohm

Input Frequency Range: 3M-30MHz(HF Band)

Input/Output Interface: Standard SMA interface, external thread hole

PCB Size: 60 * 100 mm

Diameter of Located Hole: 3mm

Color: Green

Package Size: 13 * 8 * 1.5cm

Package Weight: 58g / 2.07oz

Note: -The following data was compiled with a typical setup, The test was conducted with the linear amp installed on a large heat sink that can withstand 200W Intermittent. It is advisable to install also a fan on the heatsink in order to keep the temperature stable.

-The Linear Amp test data, tests conducted on the HF Bands,

-In 3 to 5 MHz this period, because of the low frequency, small inductance, lead to the gain has a certain loss, the output power is lower than 7 MHz this point.

3.500MHz 54W

7.050MHz 56W

10.000MHz 57W

14.270MHz 55W

21.400MHz 41W

24.000MHz 37W

28.100MHz 25W

29.600MHz 20W

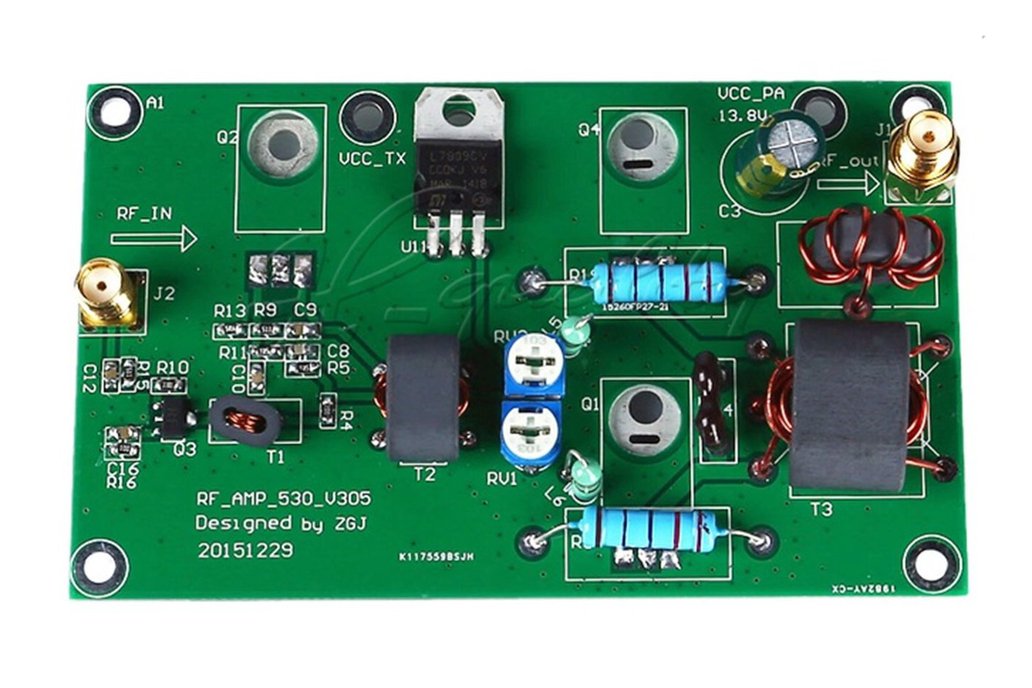

Package Included: 1 * SSB Linear Power Amplifier kit
