ESP32 -SI473x-SI5351 All Band Radio V7.8 P.C.B

Name: ESP32 -SI473x-SI5351 All Band Radio V7.8 P.C.B
SKU: 31988
Price: 9.99 USD
Availability: InStock
Rating: 4.75 (1 reviews)

(1 Review)

esp32 si4735 Radio

Sold By JasonKits QRP

ESP32 -SI473x-SI5351 All Band Radio V7.8 P.C.B 1


Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

esp32 si4735 Radio

What is it? This listing is for the bare PCB board. The board has many improvements and can host various types of tft displays. It was designed to accommodate the Digi interface to decode digital mod…

What is it?

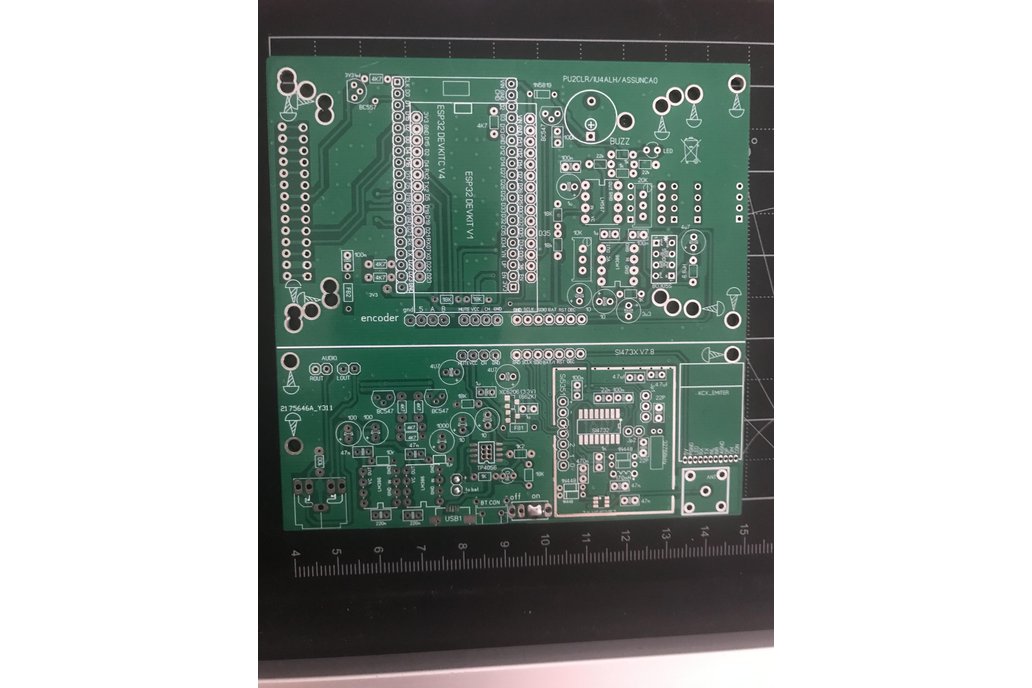

This listing is for the bare PCB board. The board has many improvements and can host various types of tft displays. It was designed to accommodate the Digi interface to decode digital modes CW RTTY - FT8 FT4 and so on. It uses common discrete components and standard DIL ICs to facilitate construction.

The board is supplied as a bare board and all the documentation can be found in the GitHub link

The board has a v-cut and can be easily snapped to separate the boards.

Acknowledgment: Thanks to Silvio Assuncao and FB Team for sharing this Gerber file.
