ARM SWD 2x5 1.27mm pitch to JST XH 6-pin adapter

Adapter board to convert 2x5 1.27mm pitch ARM SWD debug header to JST-XH 2.50mm pitch header

Designed by Joel's Bits and Pieces in Australia

ARM SWD 2x5 1.27mm pitch to JST XH 6-pin adapter 1

ARM SWD 2x5 1.27mm pitch to JST XH 6-pin adapter 2

ARM SWD 2x5 1.27mm pitch to JST XH 6-pin adapter 3

ARM SWD 2x5 1.27mm pitch to JST XH 6-pin adapter 4




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Adapter board to convert 2x5 1.27mm pitch ARM SWD debug header to JST-XH 2.50mm pitch header

I like using the 2x5 1.27mm pitch ARM SWD header for debugger connections as it is small, and easy to plug and unplug, but many development boards come with their debug headers exposed on 2.54mm pitc…

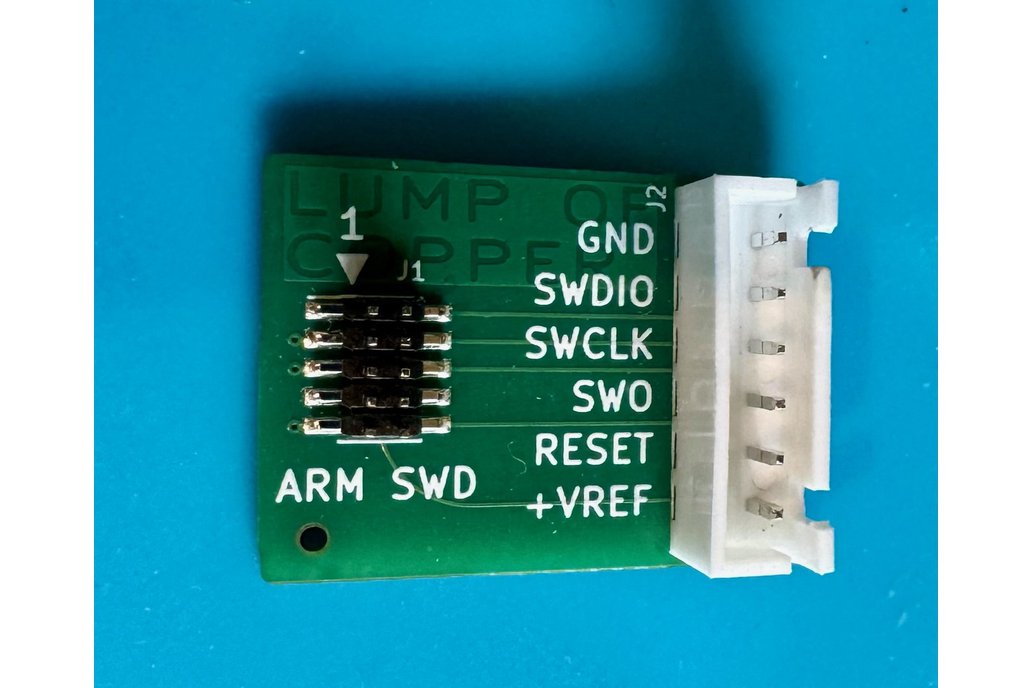

I like using the 2x5 1.27mm pitch ARM SWD header for debugger connections as it is small, and easy to plug and unplug, but many development boards come with their debug headers exposed on 2.54mm pitch pins. This simple adapter board breaks the ARM SWD header out to a JST-XH 2.50mm pitch header, which allows you to use your own JST-XH to pin-socket cable. Connect the pin sockets on the cable to the development board, so you can use the single JST-XH connector when switching between projects.

WCH LinkE debugger, development board, and 2x5 1.27mm pitch cable not included. 6-pin JST-XH to 2.54mm pitch pin socket cable available as an option. Adapter board for the WCH LinkE debugger also available.
