Arduino ICSP 6-pin Programming Cable (Soft Touch)

Name: Arduino ICSP 6-pin Programming Cable (Soft Touch)
SKU: 35639
Price: 11.00 USD
Availability: InStock

This cable allows programming my ICSP development boards without having a mounted header socket.

Designed by Johnny Electronic in United States of America

Arduino ICSP 6-pin Programming Cable (Soft Touch) 1

Arduino ICSP 6-pin Programming Cable (Soft Touch) 2

Arduino ICSP 6-pin Programming Cable (Soft Touch) 3

Arduino ICSP 6-pin Programming Cable (Soft Touch) 4

Arduino ICSP 6-pin Programming Cable (Soft Touch) 5

Arduino ICSP 6-pin Programming Cable (Soft Touch) 6

Arduino ICSP 6-pin Programming Cable (Soft Touch) 7


2024-08-28T18:59:21.711Z-6-pin_ST_board connection.jpg




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

This cable allows programming my ICSP development boards without having a mounted header socket.

What is it? This cable allows programming my ICSP development boards, and possibly others, with out having a mounted header socket. The programming connector uses spring pins that just need to touch …

What is it?

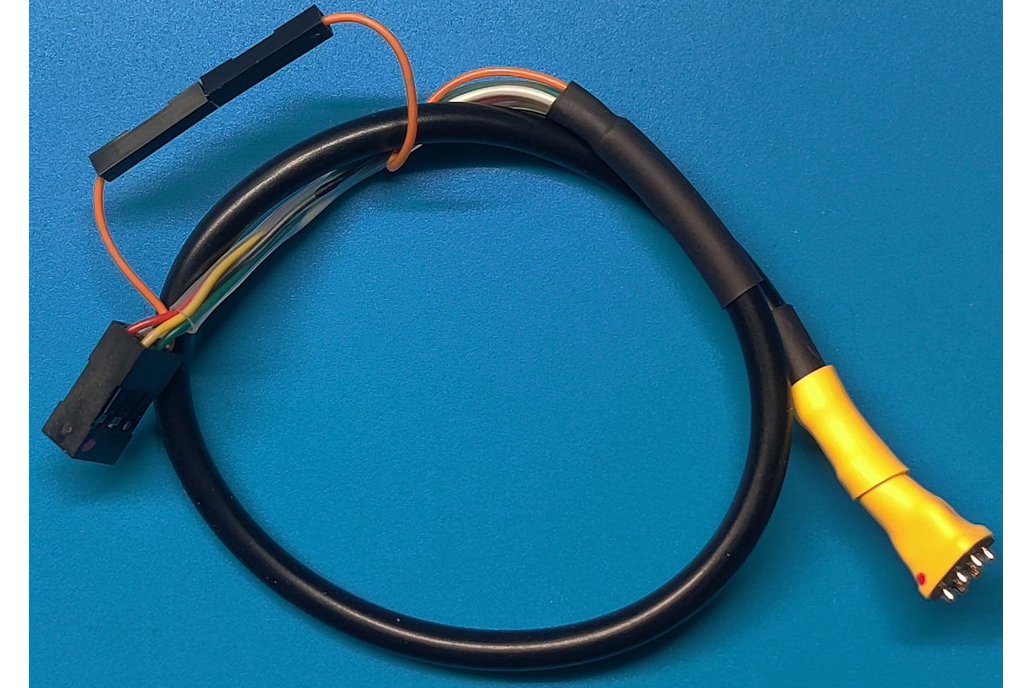

This cable allows programming my ICSP development boards, and possibly others, with out having a mounted header socket. The programming connector uses spring pins that just need to touch the ICSP pad. The cable length is a minimum of 12" (30.5cm) in length. Note that the actual heat shrink tubing color may vary from those in the images.

Why did you make it?

This cable was made to support my development boards used for adding electronics to scale model builds or other areas where compact SOC is needed. By eliminating the programming socket it keeps the board as small as possible for placement in confined areas. This cable also has a jumper on the reset line for attaching to D10 of an Arduino Uno or Nano when used as an ISP programmer. When using a custom ISP programmer the reset line can remain connected to the ICSP header if the reset pin is for ISP programming. For either case the 6-pin header can connect directly to the ICSP header of the programmer board, only the reset line may need to change.

What makes it special?

This cable makes it easy to program a ICSP AVR part using a 6-pin ICSP header for the SPI signals to the device such as an ATtiny85 or ATMega328. No socket is need for programming. See my ATtiny85 or ATMega328 development boards for an example.
