Note: CH32V003 can only be programmed by WCHLink-E through SDI interface (1-wire serial debug interface), so if it is the first time to buy the board, please buy it together with WCHLink-E. Introduct…
Read More…Note: CH32V003 can only be programmed by WCHLink-E through SDI interface (1-wire serial debug interface), so if it is the first time to buy the board, please buy it together with WCHLink-E.
Introduction
nanoCH32V003 is a development board made by MuseLab based on CH32V003F4U6 of QinHeng. It features 24MHz crystal oscillator，reset button and LED on board. It supports 1-wire serial debug interface (SDI) and all GPIOs are led out, which is convenient for developers to develop and prototype.

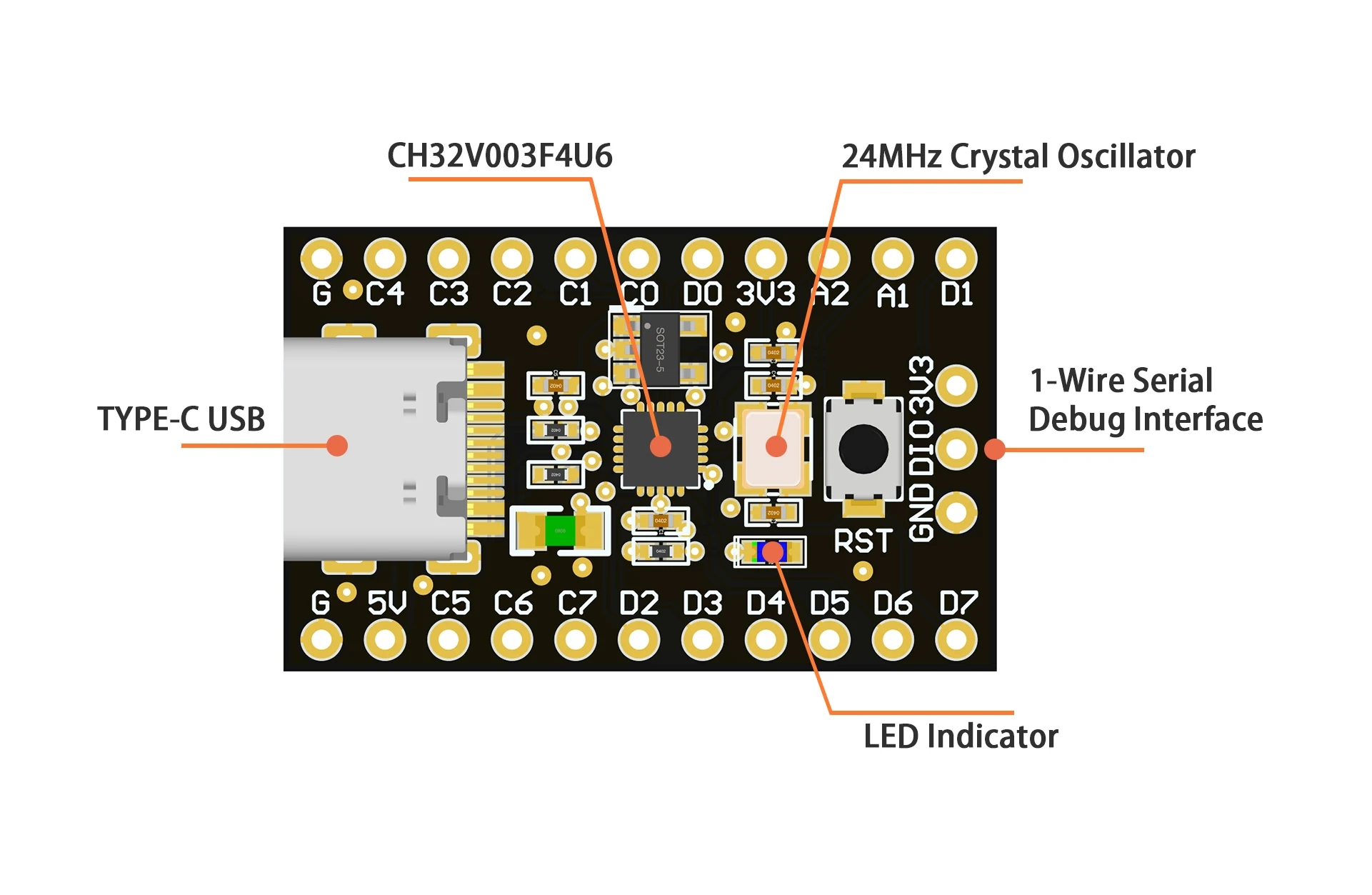

Features
● Onboard 24MHz crystal oscillator
● Onboard reset button
● LED indicator
● Powered by TYPE-C USB
● Lead out all GPIOs
● 1-wire serial debug interface (SDI)
Chip Resources
Diagram
Documentation
● https://github.com/wuxx/nanoCH32V003
Shipping List
● Kit 1: nanoCH32V003 Development Board * 1 + 11 Pin Header * 2 + 3 Pin Header * 1
● Kit 2: nanoCH32V003 Development Board * 1 + 11 Pin Header * 2 + 3 Pin Header * 1 + 1 Meter TYPE-C Cable * 1
● Kit 3: nanoCH32V003 Development Board * 1 + 11 Pin Header * 2 + 3 Pin Header * 1 + WCHLink Debugger * 1
● Kit 4: nanoCH32V003 Development Board * 1 + 11 Pin Header * 2 + 3 Pin Header * 1 + WCHLink Debugger * 1 + 1 Meter TYPE-C Cable * 1
