Introduction

nanoESP32-S2 is a ESP32-S2 development board designed and made by Muse Lab, based on ESP32-S2 module of Expressif. It has a on-board usb-to-serial, TYPE-C, RGB LED. Its pin-outs are compatible with Expressif's official development board ESP32-S2-Saola series. The dual-USB include usb-to-serial and the USB ESP32-S2 itself are more convenient for developers to develop and test.

Features&Specification

● With ESP32-S2 module, such as ESP32-S2-WROOM, ESP32-S2-WROOM-I, ESP32-S2-WROVER and ESP32-S2-WROVER-I

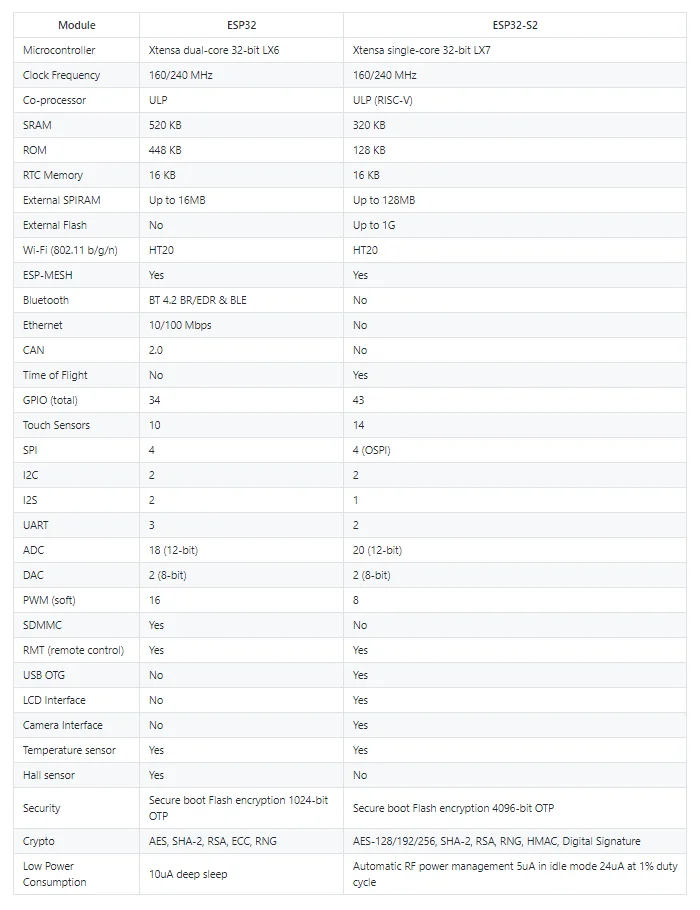

● Comparisons between ESP32 module and ESP32-S2 module

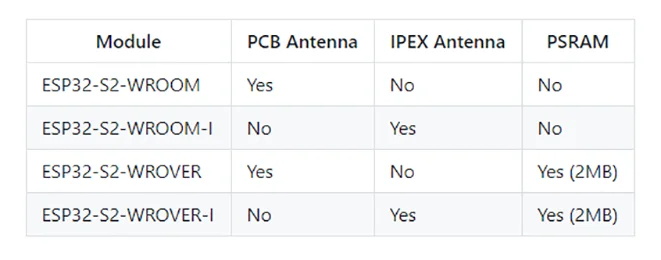

● Comparisons between the four kinds of ESP32-S2 modules

● Compatible with Expressif's official development board ESP32-S2-Saola series

● On-board USB to UART, supporting auto program

● On-board downloading key, reset key and RGB LED

● Lead out dual-USB include USB to Serial and the USB ESP32-S2

● Small Size: 6.1cm*2.8cm

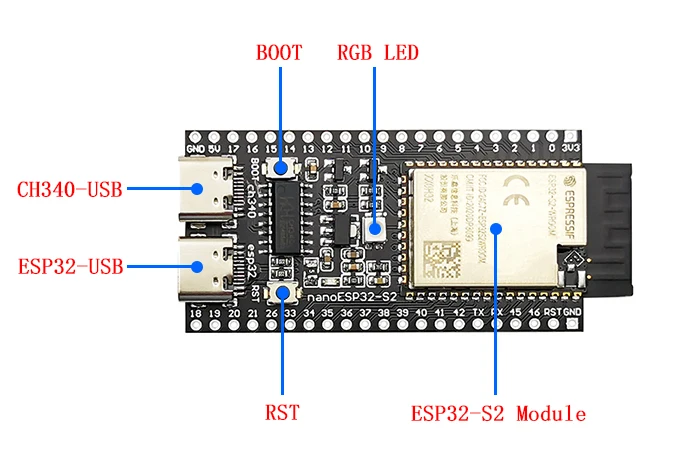

Diagram

Documentation

● nanoESP32-S2

https://github.com/wuxx/nanoESP32-S2

● esp-idf

https://github.com/espressif/esp-idf

● esp32-s2 get-started

https://docs.espressif.com/projects/esp-idf/en/latest/esp32s2/get-started/

● esp32-s2

https://www.espressif.com/zh-hans/products/socs/esp32-s2

Shipping List

● nanoESP32-S2 Development Board x 1

● 21 Pin Header x 2
