NOTE
Some buyers' reviews reported that they could not find the AntRunner_Start_Serial.bat script, which is located in AntRunner's github repo. just download the entire github repository, which already contains all the software.

Introduction

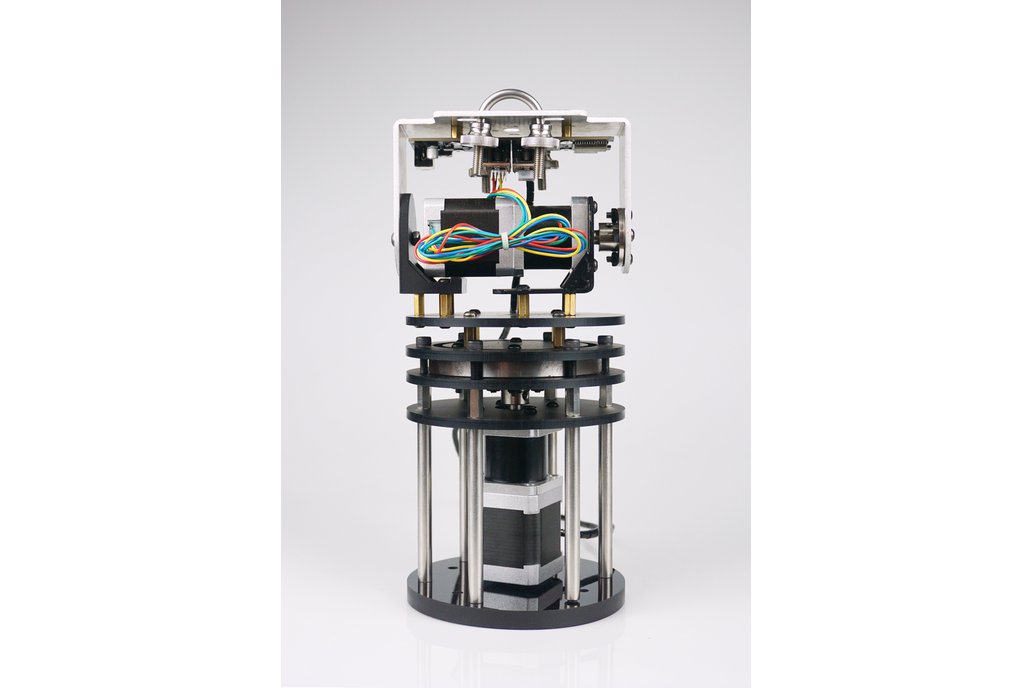

AntRunner is a portable antenna rotator designed and made by Muse Lab. It features 360 degree azimuth and 180 degree elevation and supports to install various types of antennas (usually Yagi antennas). You can control antenna system's positioning and keep tracking satellites in real time with corresponding open source application which is available on Windows/Linux/Mac/RaspberryPi/Android. The application can communicate with the rotator via wired (serial port) or wireless (Wifi 2.4G). The AntRunner rotator can be powered by a 12V battery or by a fast charging power bank with a 12V fast charging trigger cable. It’s easy to carry as its weight is relatively light and very convenient for space communication in the wild for HAM .

Features

● full Azimuth and elevation angle tracking

● Support Windows/Linux/RaspberryPi/Android

● Support wired serial port control

● Support wireless WiFi 2.4G control

● 12V power supply, convenient for field erection

● Easy disassembly and assembly

Specification

● Rotation Limit: AZ: 0 - 360°; EL: 0-180°

● Max Load: 5KG

● Backlash: AZ:1° EL:1°

● Weight: 2.5KG

● Rotator Diameter x Height: 120mmØ x 65mm (H)

● Material: 5mm/10mm Acrylic

Documentation

● AntRunner (everything can download in this repo, include Gpredict/Hamlib/...)
https://github.com/wuxx/AntRunner

● Gpredict
https://github.com/csete/gpredict

● Hamlib
https://hamlib.github.io/

● Look4Sat
https://github.com/rt-bishop/Look4Sat

● sdr#
https://airspy.com/download/

Shipping List

● Rotator (including PCB & bracket & screw)

● Tray (internal diameter 35mm)

● Fast charging trigger cable (for get 12V from fast charging power bank)

● 2M TYPE-C cable
