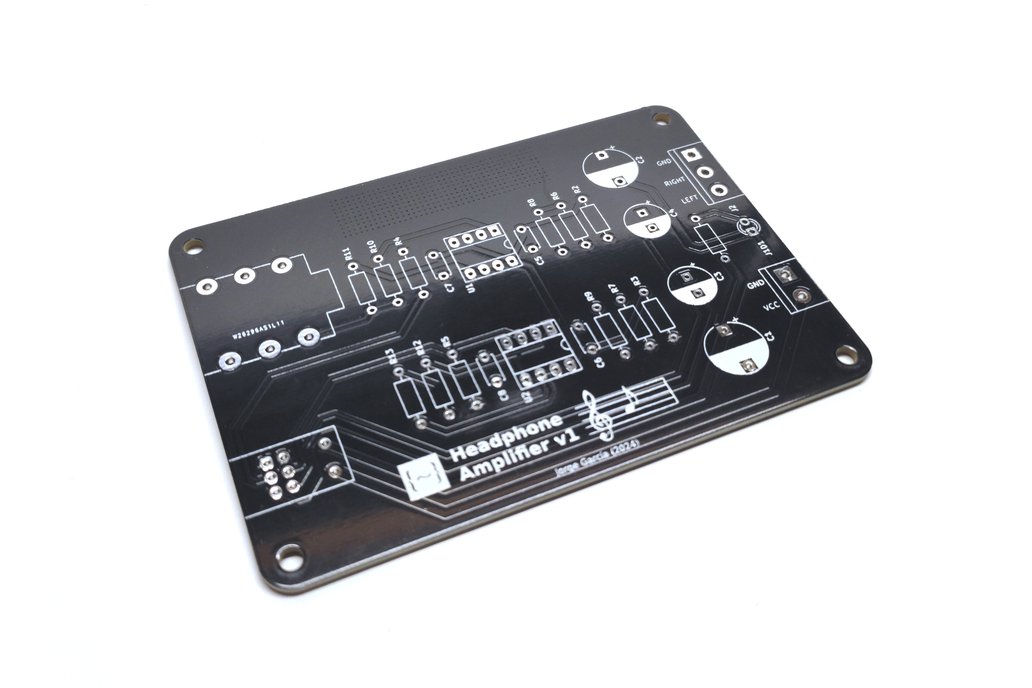

The Headphone Amplifier v1 circuit design uses parallel amplifier stages to deliver enhanced power and reduced distortion. The Headphone Amplifier v1 has a clean and transparent sound, even at high gain levels and when driving low-impedance headphones.

The power and audio input connectors are screw terminals, allowing you to attach the necessary jacks without the need for soldering. Additionally, multiple Headphone Amplifier v1 units can be daisy-chained together to create a multi-channel headphone amp setup.

The soldering kit includes:

• 2 x 220u capacitor
• 2 x 110u capacitor
• 4 x 100u capacitor
• 1 x Pink LED 3mm
• 1 x Screw Terminal x2
• 1 x Screw Terminal x3
• 1 x Audio Jack 6.35mm Neutrik NMJ6HFD4
• 1 x 10k Resistor
• 4 x 4k7 Resistor
• 2 x 1k Resistor
• 2 x 2k2 Resistor
• 4 x 1R Resistor
• 1 x 10k Potentiometer Alps RK097
• 2 x NE5532

Electrical characteristics:

• Input Impedance: 20kΩ
• Current Draw: 10-20mA
• Gain: 0-10dB (customizable)
• Power Supply: 9 to 44VDC

Español

El diseño del circuito del Headphone Amplifier v1 usa dos etapas de amplificación para conseguir mayor potencia y reduciendo la distorsión. The Headphone Amplifier v1 consigue un sonido limpio y transparente, incluso a ganancias altas y usando auriculares de baja impedancia.

Las entradas de alimentación y audio son bloques de conexiones, lo cual permite acoplar los jacks que sean sean necesarion sin necesidad e soldar.

El kit the soldadura incluye:

• 2 x Condensador 220u
• 2 x Condensador 110u
• 4 x Condensador 100u
• 1 x LED rosa 3mm
• 1 x Bloque de consexiones x2
• 1 x Bloque de consexiones x3
• 1 x Jack Audio 6.35mm Neutrik NMJ6HFD4
• 1 x Resistecia 10k
• 4 x Resistecia 4k7
• 2 x Resistecia 1k
• 2 x Resistecia 2k2
• 4 x Resistecia 1R
• 1 x Potenciometro 10k Alps RK097
• 2 x NE5532

Electrical characteristics:

• Impedancia de entrada: 20kΩ
• Corriente: 10-20mA
• Ganancia: 0-10dB (customizable)
• Fuente de alimentación: 9 a 44VDC
