FrontiersRF (SubGHz) for Flipper Zero

Name: FrontiersRF (SubGHz) for Flipper Zero
SKU: 36870
Price: 70.00 USD
Availability: InStock

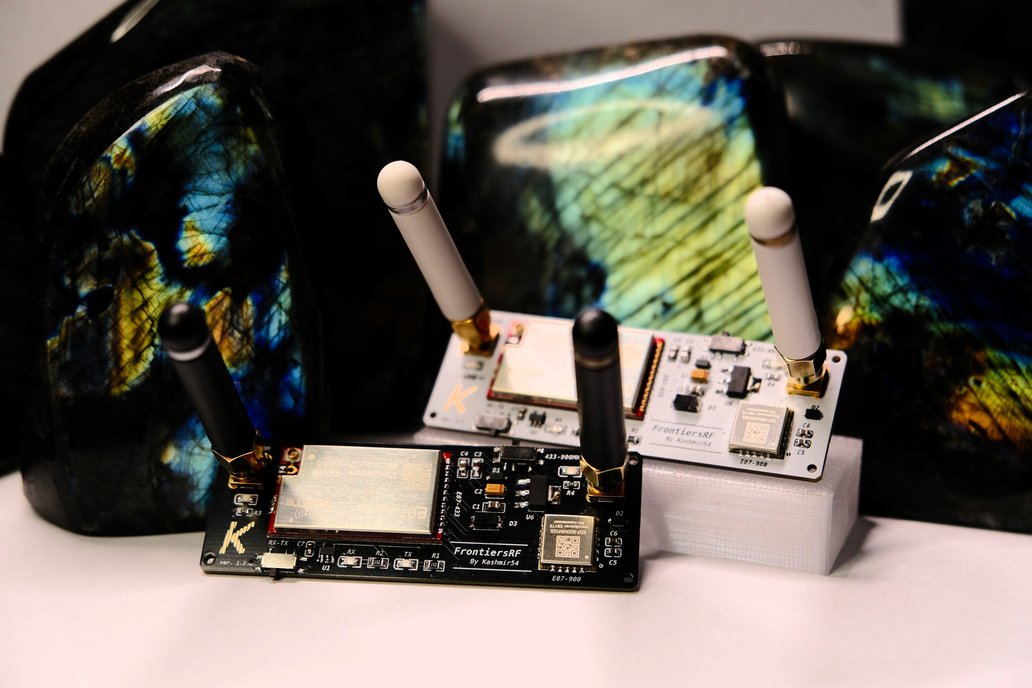

An enhanced devboard for both SubGHz ISM bands: 425~450.5MHz and 855~925MHz with E07-433M20S and E07-900MM10S chips.

Designed by Kashmir54 in Spain




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

An enhanced devboard for both SubGHz ISM bands: 425~450.5MHz and 855~925MHz with E07-433M20S and E07-900MM10S chips.

Main features of this FrontiersRF SubGHz board: ⚡️ Enhanced 425~450.5MHz: With E07-433M20S chip, reach greater distances on TX and RX modes. ⚡️ Dedicated 855~925MHz chip: Now you can also explore th…

Main features of this FrontiersRF SubGHz board:

⚡️ Enhanced 425~450.5MHz: With E07-433M20S chip, reach greater distances on TX and RX modes.
⚡️ Dedicated 855~925MHz chip: Now you can also explore this band with a dedicated E07-900MM10S chip.
⚡️ Selector switches: Select between three modes: 433MHz (TX), 433MHz (RX) or 900MHz (TX/RX).
⚡️ 3dBi 433 and 868 antennas Get the best performance with the included tuned antenas for both frequencies.

The FrontiersRF has three modes to operate, that can be changed from the two switches in the board. Near the switches, you can see the different modes. The mode should be selected before starting tThe modes are as follows:

Transmit 433MHz (433 TX)
Receive 433MHz (433 RX)
Transmit and Receive 900MHz (900 TX/RX).

Here you have a label for the LED colors and the switches:

Top Switch: First, select between 🟠 433 MHz (Orange LED) and 🟢 900 MHz (Green LED)
Bottom Switch: If 433, then select the mode: 🔵 Receive (RX, Blue LED) and 🔴 Transmit (TX, Red LED)

More information will be available at my website soon!
