During the developement of the VoyagerRFv1 and VoyagerRFv2 I focused on flexibility, so I can use nRF24 or CC1101 whenever I needed. Using more and more the Flipper, I realized that I used much more the nRF24 instead of the CC1101 because of what I like to investigate, so I wanted to upgrade that nRF24 part and let go the CC1101. That's why I developed the VoyagerRF Pro, a board focused on the 2.4GHz, WiFi, BLE 5.0 and propietary protocols with an upgraded nRF24 module, the E01-2G4M27SX chip. The board is compatible with all firmwares: Unleashed, Momentum, Roguemaster, Official, etc.

Main features of this VoyagerRF Pro version:

• ⚡️ Ready for Ghost_ESP Firmware: The VoyagerRF Pro comes with Marauder preflashed by default, but the board supports Ghost_ESP, you can use the Web Flasher to easily change/update your firmware with 3 clicks.
• ⚡️ ESP32-C3: A low-consumption WiFi and Bluetooth chip with the latest Marauder firmware preflashed. This chip will allow you to perform all WiFi and Bluetooth tools deployed on marauder (including wifi scans, deauths, evilportal, wardriving, sour apple, ble spam, etc). Ready to plug and play and control it with the ESP32 WiFi Marauder or Ghost ESP GPIO apps.
• ⚡️ MicroSD card slot to save the output from the Marauder/Ghost_ESP apps (already configured in the firmware) and different configuration files (for evilportal, for example).
• ⚡️ 3dBi Omnidirectional antennas (2.4GHz) mounted on the board's SMA connectors. Adds a great range improvement against the original devboard with PCB antenna.
• ⚡️ GPS module and antenna: The ATGM336H GPS module is connected to the ESP32-C3, which allows the Marauder firmware to collect GeoPositioning information on wardriving mode. This mode saves the location and WiFi SSID (among other data) in the VoyagerRF's MicroSD card with a certain file formatthat can be uploaded on websites such as wigle.net.
• ⚡️ New NeoPixel status LED: This RGB LED will indicate the status of the Marauder/Ghost_ESP firmware. You can also set manually the HEX code for the LED or flex it with the raimbow mode.
• ⚡️ E01-2G4M27SX chip (nRF24) Compatible with all nRF24 applications on the Flipper including NRF24 Sniffer/MouseJacker, NRF24 Batch, nRF24 Channel Scan, among other apps. This E01-2G4M27SX chip has a greater power than normal nRF24 chips.
• ⚡️ Manually soldered and tested, I like to solder, so I prefer to build it myself to maximize quality.
• ⚡️ 3D Printed case: For people looking for a clean look, I designed a case and a base to store and carry your VoyagerRF everywhere. 3D models ready for printing are provided below. (To be honest, I prefer to see the PCB and components).

Remember that the VoyagerRF Pro can be easily updated via the Web Flasher following the steps in the website. Also, you can change from Marauder to Ghost_ESP easily.

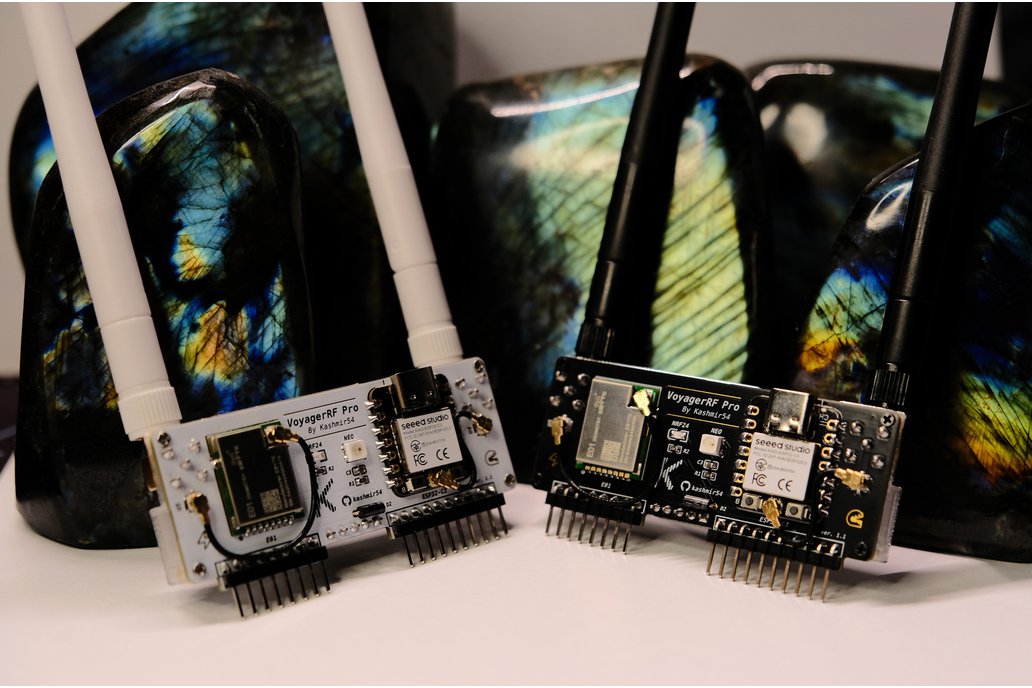

More photos are available at my website! PCB available in black or white and 3D pieces in black, white, translucent, lime green and light orange. Antennas can be black or white, as you prefer.

The base package includes:

• 1 x VoyagerRF Pro board with latest Marauder Firmware preinstalled.
• 2 x 3dBi Omni Antenna (2.4GHz) Length: 11cm (4.33inch)
• 3D PLA+/PETG back + pin cases with rugged finish.
• (Optional) 3D PLA+/PETG front frame

If you have any doubt, please feel free to contact me!
