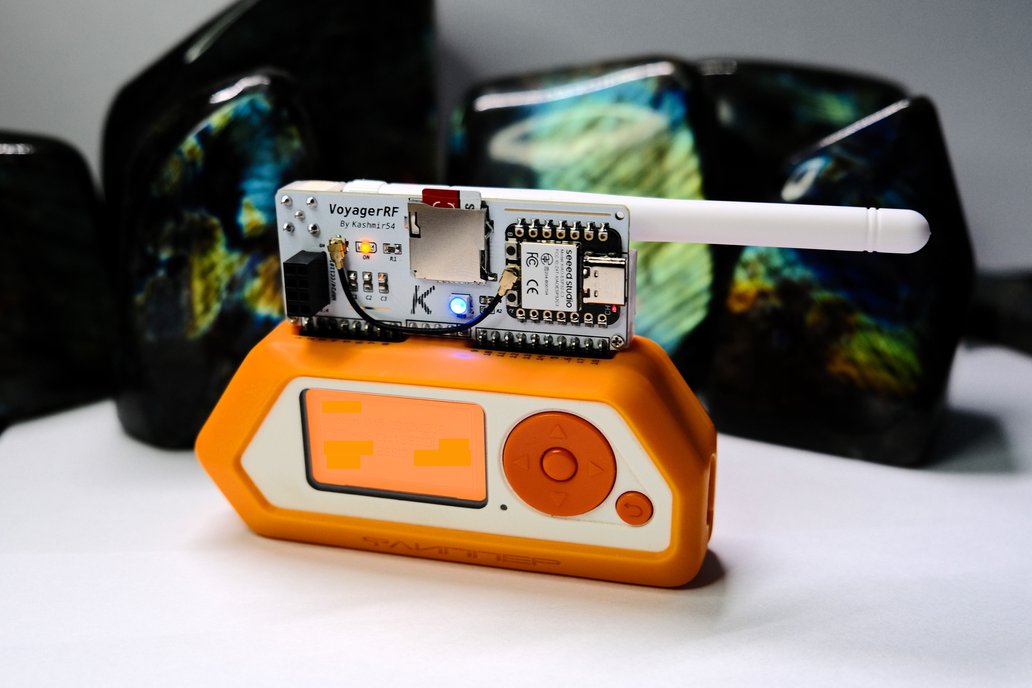

VoyagerRFv2 is a compact devboard for Flipper Zero based on the ESP32C3 chip, which implements 802.11 b/g/n, 2.4 GHz and Bluetooth 5.0. It's one of the lastest chips released by Espressif, with state-of-the-art power and RF performance.

The board is equipped with GPS connected to the ESP32C3, so it provides capabilities such as wardriving, a NeoPixel LED to retrieve the board status and a MicroSD Card usually to support newest firmware updates, since it provides an stable data storage. It also supports saving files to the Flipper, as implemented by the firmware developers. Lastly, it has a connection socket for CC1101 or nRF24 that can be included in the package and works with apps in the Flipper at plug-and-play basis, including SubGHz, nRF24 Sniffer, MouseJacker, nRF24 Scanner, etc.

Currently, the board supports Marauder and Ghost_ESP and I created a webflasher to flash the board with 3 clicks, so you can change between firmwares easily! More info and photos and boards are available at my website.

Feature recap:

• ⚡️ ESP32-C3: A low-consumption WiFi and Bluetooth chip with the latest Marauder firmware preinstalled (if you want Ghost_ESP instead, let me know!). This chip will allow you to perform all WiFi and Bluetooth tools deployed on Marauder/Ghost_ESP (including deauths, evilportal, sour apple, ble spam, wardriving, etc). Ready to plug and play and control it with the ESP32 WiFi Marauder and Ghost_ESP GPIO apps.
• ⚡️ Ready for Ghost_ESP Firmware: Now the VoyagerRFv2 board supports Ghost_ESP, you can use the Web Flasher to easily change/update your firmware.
• ⚡️ GPS module and antenna: The ATGM336H GPS module is connected to the ESP32C3, which allows the firmware to collect GeoPositioning information on wardriving mode. This mode saves the location and WiFi SSID (among other data) with a certain file formatthat can be uploaded on websites such as wigle.net. The module and antenna are at the back of the board, hidden under the 3D case.
• ⚡️ NeoPixel status LED: This RGB LED will indicate the status of the firmware.
• ⚡️ Compact design, the antenna can be deployed vertically for better performance or horizontally for easy carrying.
• ⚡️ 3D Printed case: While the standalone board includes the back cover, for people looking for a clean look, I designed a front case and a base to store and carry your VoyagerRFv2 everywhere. STL files are provided on my website for you to print with your favorite colors (To be honest, I prefer to see the PCB and components hehe).
• ✅ MicroSD card slot to support saving the output from the Marauder/Ghost_ESP app and different configuration files (for evilportal, for example).
• ✅ 3dBi Omnidirectional WiFi antenna (2.4GHz) mounted into the board’s SMA connector. Adds a great range improvement against the original devboard (PCB antenna).
• ✅ NRF24/CC1101 socket with decoupling capacitors for noise reduction. Compatible with External CC1101 configuration and nRF24 chips. Can be purchased in a pack here.

This is a fun project I made as an evolution of a previous board, the VoyagerRFv1. I enjoy soldering and clean joints, so expect the best from a handcraft board, made at León, Spain. If you have doubts, please do not hesitate to contact me and check out the website for more info!
