A drop in replacement for TO-220 Linear Regulators using a DC-DC converter for higher efficiency
Designed by ketszim in Canada
This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

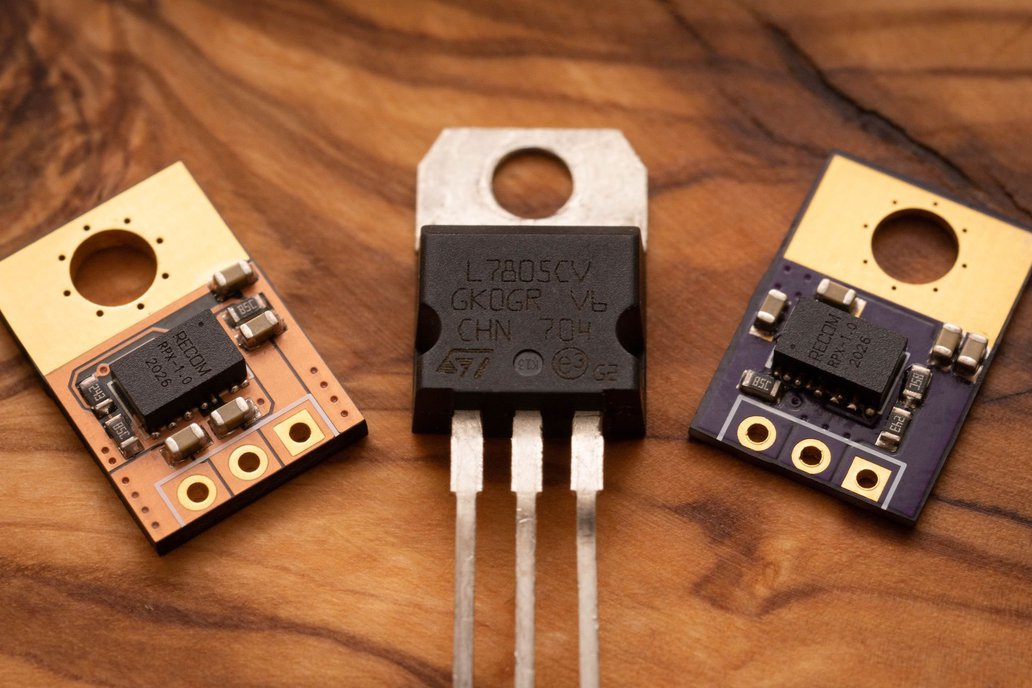

Swap out your LDO for a switcher today, with these designs for a modern take on the TO-220 mounted LM1117 and 78xx series LDO regulators! This project is my take on a quick and easy replacement for t…
Read More…This project is my take on a quick and easy replacement for the 3-pin LDO. The aim is to replace TO-220 linear regulators with a switching converter, in pursuit of higher efficiencies and current capacity.
Using a Recom RPX series DC-DC module for its small size and incorporating SMD feedback resistors and bulk capacitance on board allows for a drop-in replacement to existing LDO designs, while remaining in the same overall footprint as the counterpart.
As LM1117 LDOs have a different pinout to the 78xx series of regulators, I designed two versions of the layout.
| Output Voltage | R3 Value |
|---|---|
| 1.5V | 86k6 |
| 1.8V | 60k4 |
| 2.5V | 35k7 |
| 3.3V | 24k3 |
| 5.0V | 14k3 |
| 12V | 5k36 |
| 24V | 2k61 |
The device pinouts are:
The device is also fully open source, and all design/manufacturing files are available on Github.
