This is an inventory clearance for the leftover Sharp LCD breakouts. They are tested to be functional but have a smaller diameter drill holes for the 0.1" header. Woops.. So they are not usable with a header but if you plan on soldering wires to it, they'll work just fine.

25% off regular price

Only assembled board is included- no point in shipping header that does not fit

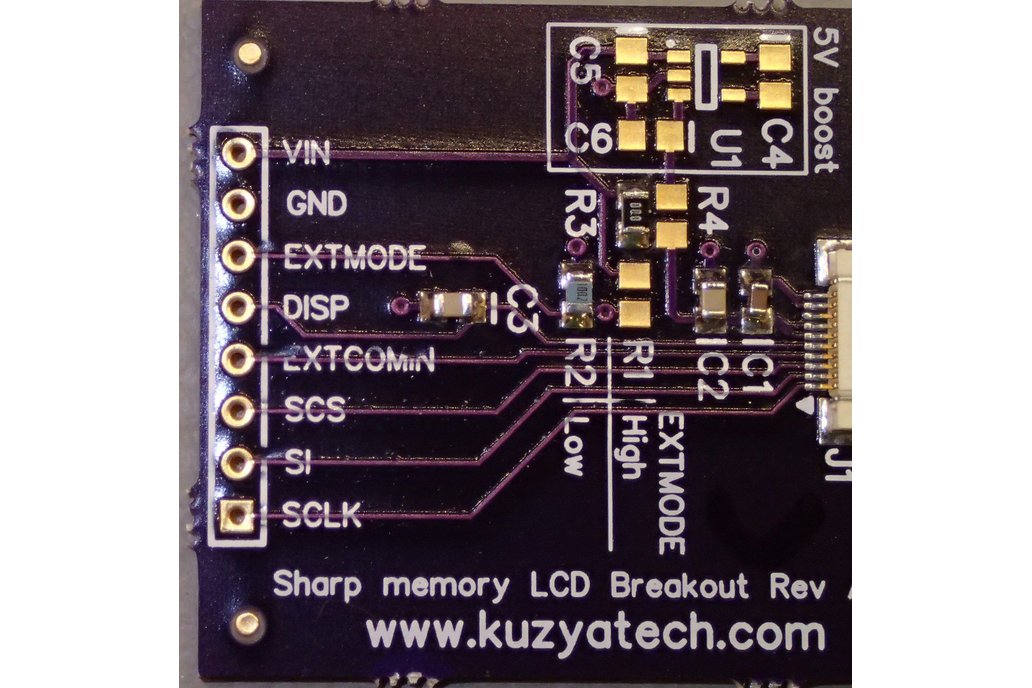

https://www.tindie.com/products/kuzyatech/sharp-memory-lcd-breakout-a2/ This is a simple breakout board for Sharp's new Memory LCD displays ( LS013B4DN02 and LS013B4DN04 as well as LS013B7DH03). It brings all pins to a 0.1" header and provides pads for the necessary caps and resistors. The new revision A2 also adds an optional boost converter for those wanting to run 5V display from sub 3.3V supply.This is an open source hardware design under CC BY SA license. The display is not included as there are now several types of them, and depending on your needs you would be using a 5V or a 3.3V version or even the larger 2.7" version. Contact me and I'll point you to a source of displays. - Made in USA. Bare board only, now other parts included
