Tektronix 259-0086-00 Replacement PCB

Name: Tektronix 259-0086-00 Replacement PCB
SKU: 30954
Price: 28.00 USD
Availability: InStock

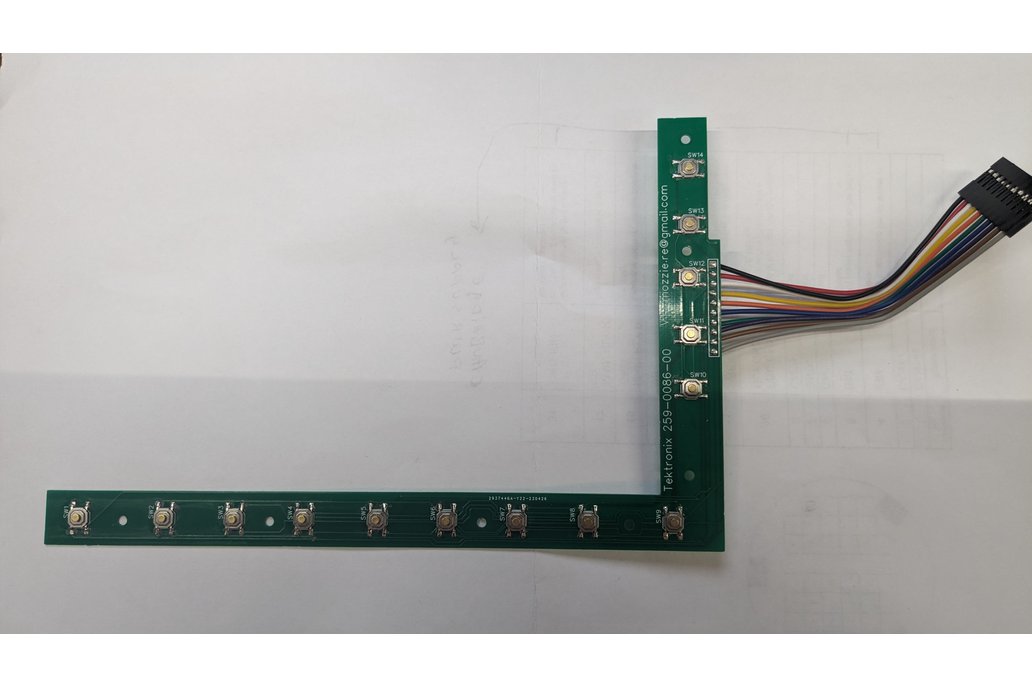

PCB and tactile switch assembly replaces the Tektronix oscilloscope Rubber keypad

Designed by Mozzzies Electronics in Australia

2023-07-09T06:53:43.046Z-Old & New Keypad.jpg

2023-07-09T06:53:43.046Z-Keypad PCB-TDS360P.jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

PCB and tactile switch assembly replaces the Tektronix oscilloscope Rubber keypad

This custom designed 0.8mm thick PCB and tactile switch assembly replaces the original Tektronix conductive rubber keypad CRT switch assembly part number 259-0086-00 common to many early Tek digital …

This custom designed 0.8mm thick PCB and tactile switch assembly replaces the original Tektronix conductive rubber keypad CRT switch assembly part number 259-0086-00 common to many early Tek digital CRT oscilloscopes.

To install, remove the original membrane PCB and rubber pad sheet. Attach the PCB to the metal CRT frame with thin double-sided tape. Fill the cavities in the buttons with Epoxy, and once dry, reassemble the front panel of the oscilloscope. I can manufacture to order in 5 weeks.
