This Kit includes every eletronic part needed to create a Voron enraged rabbit carrot feeder (ERCF) and filament sensor.
The ERCF project from Ette allows you to print multiple filaments / colors in …
This Kit includes every eletronic part needed to create a Voron enraged rabbit carrot feeder (ERCF) and filament sensor.
The ERCF project from Ette allows you to print multiple filaments / colors in a Voron 3d printer.
ERCF eletronics full kit Includes:

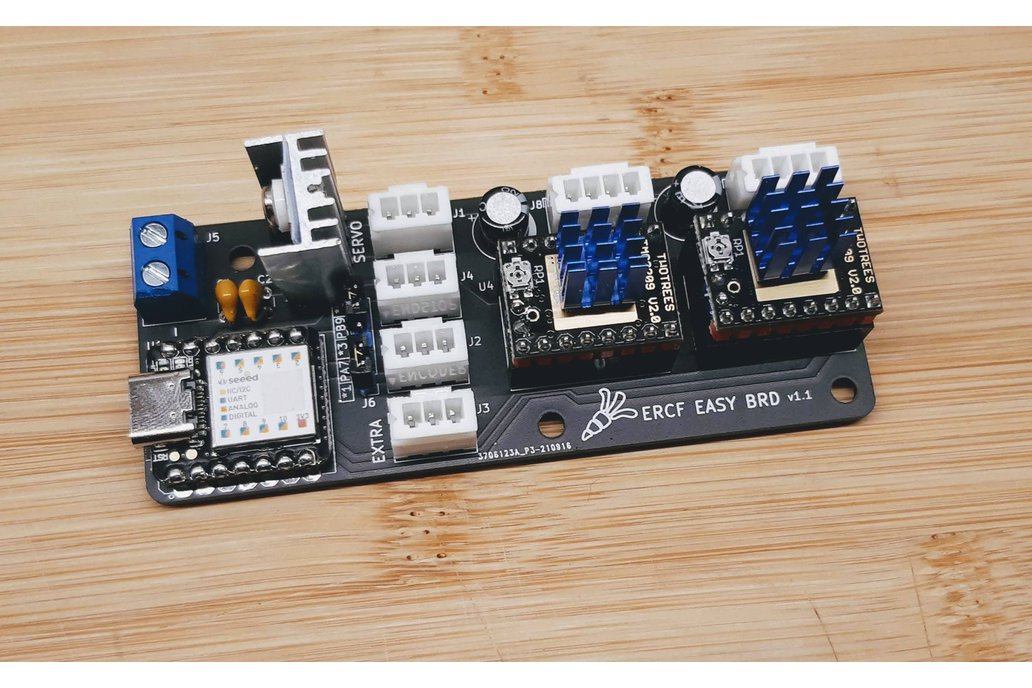

Tircow ERCF easy board v1.1 (pre soldered with seeeduino xiao already flashed with latest klipper version + 2x TMC2209 drivers + 2x heat sinks for the drivers)
Hartk afterburner toolhead ERCF version (latest version v4.0 also pre soldered + Bat85 + 10K 3950K chamber temperature thermistor + red led light as hotend indicator)
TCRT5000 sensor (correct version off centered)
Hall sensor AH3364Q-P-B
All crimps and connectors required to connect the board and the toolhead PCB (20 micro-fit 3.0 male crimps + 40 jst xh 2.54mm)
More info and credits:
https://github.com/hartk1213/Voron-Hardware/
https://github.com/Tircown/ERCF-easy-brd
https://github.com/EtteGit/EnragedRabbitProject
Exactly as pictures attached.
Kit is sent in a nice 3d printed case to protect agains any damage during transportation.
