TTL to RS-232 (DCE or DTE)

Name: TTL to RS-232 (DCE or DTE)
SKU: 24285
Price: 14.00 USD
Availability: InStock

TTL to RS-232 Converter

Designed by Land Boards, LLC in United States of America

This seller is taking a break until Jan. 10, 2025. Sign up below to get an email when they're back!



$14.00

On A Break

Helping Makers Go Beyond Breadboards

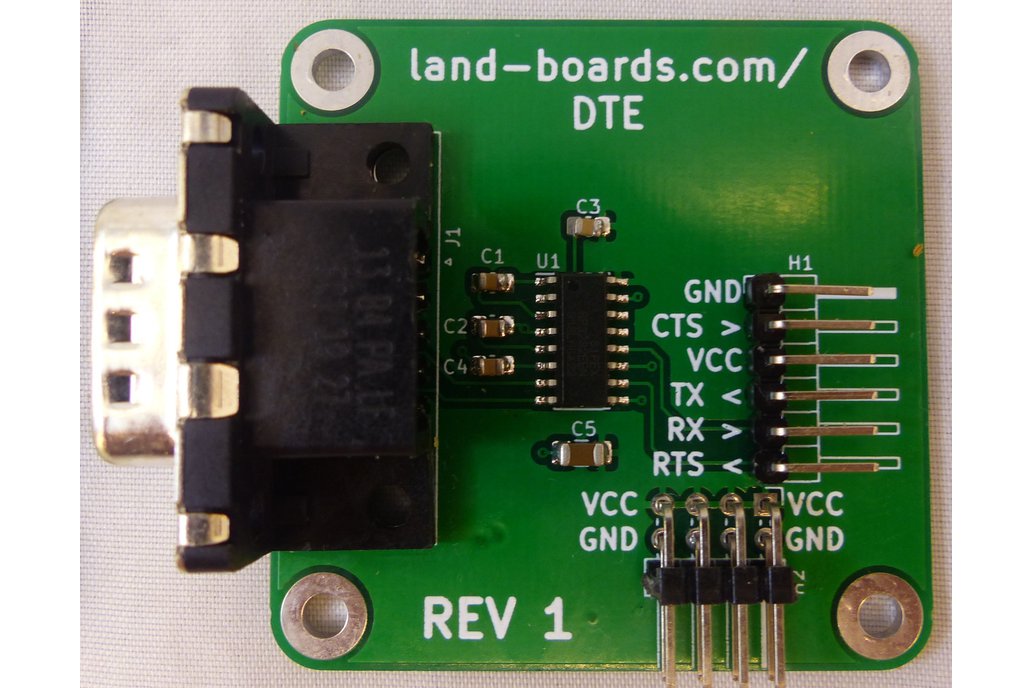

TTL to RS-232 Converter

Features TTL to RS-232 converter TX/RX and RTS/CTS Hardware Handshake Female DB-9 connector (DCE) Male DB-9 connector (DTE) FTDI pinout (reversed directions to directly connect to FTDI Interface) 3.…

Features

TTL to RS-232 converter
TX/RX and RTS/CTS Hardware Handshake
Female DB-9 connector (DCE)
Male DB-9 connector (DTE)
FTDI pinout (reversed directions to directly connect to FTDI Interface)
3.3V or 5V
3.3V levels - 5V tolerant
Power In/Out 2x4 header - to power card and distribute power to other devices
49x49mm card
4x 4-40 holes

Why did you make it?

I wanted an RS-232 to TTL converter that could be mounted in a chassis.
I wanted an FTDI compatible pinout.
I also wanted power outputs to power devices like FPGA cards.
