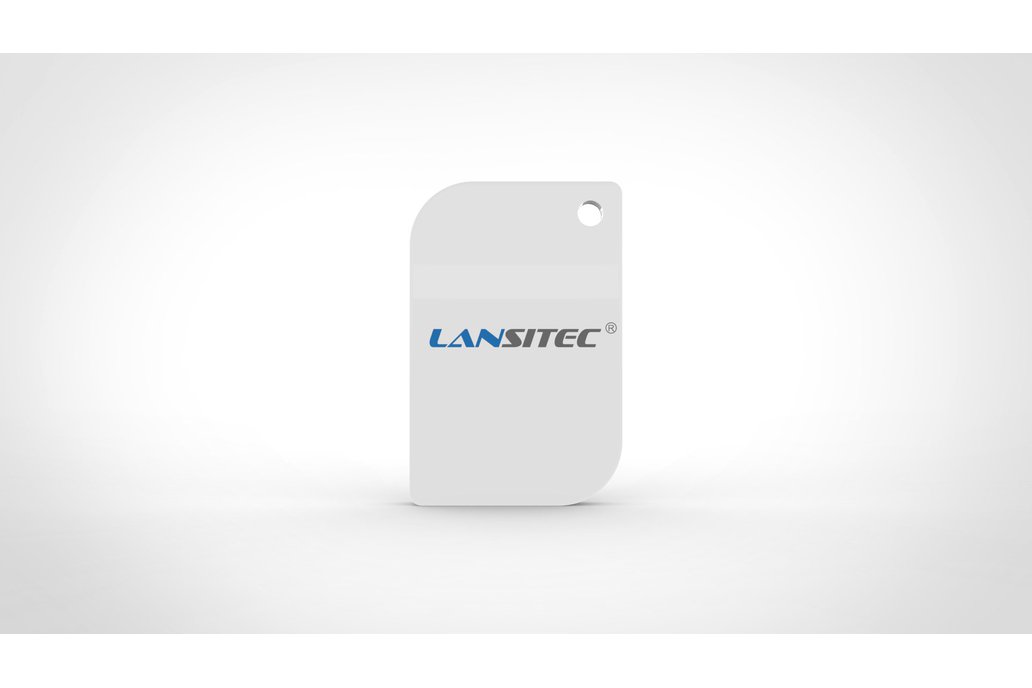

i3+ Portable Bluetooth Label

Name: i3+ Portable Bluetooth Label
SKU: 28158
Price: 7.00 USD
Availability: InStock

Bluetooth tag, 36.5x23.7x5mm, 3D Accelerometer, 220mAh

Designed by Lansitec in China

2022-10-08T09:55:17.943Z-i3 beacon (1).jpg

2022-10-08T09:55:17.943Z-i3 beacon (2).jpg

2022-10-08T09:55:17.943Z-i3 beacon (3).jpg

2022-10-08T09:55:17.943Z-i3 beacon (4).jpg

2022-10-08T09:55:17.943Z-i3 beacon (5).jpg

2022-10-08T09:55:17.943Z-i3 beacon (6).jpg

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Bluetooth tag, 36.5x23.7x5mm, 3D Accelerometer, 220mAh

Description OVERVIEW The label continuously advertises iBeacon messages according to settings. It advertises built-in 3D Accelerometer parameters when it is moved. The compact size makes it convenien…

Description

OVERVIEW The label continuously advertises iBeacon messages according to settings. It advertises built-in 3D Accelerometer parameters when it is moved. The compact size makes it convenient to install. It helps clients better manage the location, status and usage rate of the asset, and location of personnel.

APPLICATIONS

Personnel tracking and check-in
Interactive advertising
Real-time message push of geo-location
Asset tracking
Usage rate calculation of machines and sports
facilities

Specification

CONNECTIVITY

Beacon Protocol：iBeacon
RF Power：-40~+4dBm
Advertise Interval：100ms~5s
Transmission Distance：120 meters in sight distance
Bluetooth Protocol：Bluetooth 5.0

MECHANICS

Material：ABS
Colour:White
Dimension:36.8245.3mm
Hole Size:3mm
Weight:6.2g
Installation Method:Double-side adhesive paste
Standby Current:≤5μA
Peak Current:8mA
Average Current:9μA @ 0dBm, 5s advertising interval,without the 3D Accelerometer

POWER
