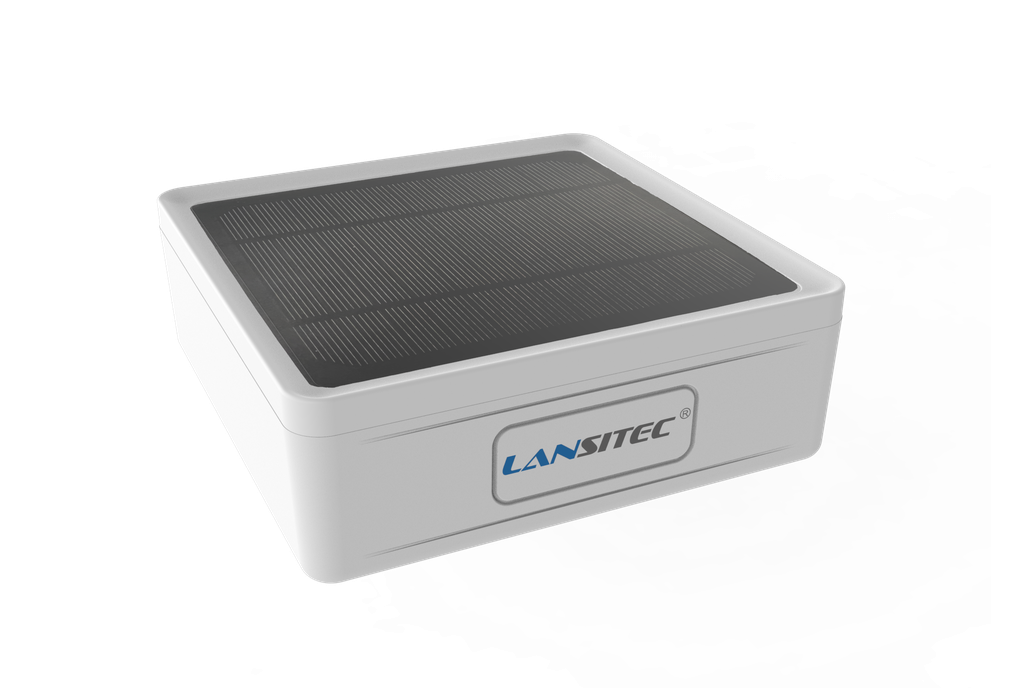

OVERVIEW

This gateway receives nearby Bluetooth beacons, sensors, or controllers’data, restructure, and forward it to a server via NBIoT or LTE-M. It supports iBeacon, Eddystone, private protocols, and the scan and response feature. The 38,000mAh low discharge rate battery make the battery life longer than 5 years

FEATURES

·NB-IoT and LTE-M worldwide network coverage ·Wide operating temperature range ·Adjustable uplink report interval ·iBeacon, Eddystone or any other BLE sensor data communication and positioning ·Extra-long battery life

APPLICATIONS

• Vehicle tracking • Asset and personal management • Garbage bin management • Temperature, humidity, accelerated speed, heartrate data transfer

PARAMETERS

• Bluetooth Protocol Bluetooth 5.0
• LoRaWAN Protocol LoRaWAN 1.- 0.2B
• LoRaWAN Band US915, AU915, EU868, EU433, AS920-923, AS923-925, RU864, ID920, KR920, IN865, KZ865, CLAA, CN470, CN470-Ali
• LoRa Maximum RF Power 20dBm
• LoRa Sensitivity -139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz
• Access Quantity >500 in one LoRa gateway
• Data Rate(bps) 300~30K
• Battery 5300mAh
• Charging Method Solar Panel
• Positioning Precision 3 metres
• Encryption AES128, X509
• Standby Time Adjustable Position Report Interval: 5s x n (1 to 65536) Heartbeat Report Interval:30s x n (1 to 65536) Switch: Mechanical Customized data filter and data report: Support FOTA over Bluetooth: Support Max. Beacons Supported: 105 , maximum of 15 beacon messages at one single LoRa communication @SF9 Please reach out to us if more are needed.
• Dimension 16016055mm
• Operating Temperature -40°C ~ +70°C
• Charging Temperature -20°C ~ +60°C
• Weight 150g
• Ingress Protection IP66
• Certification CE, FCC, RCM
