In 2020, driven by the scarcity of sensors with home automation connectivity, I began developing the first MoreSense air quality sensor, the MoreSense MS-01. Although MoreSense products are still technically classified as DIY, they have evolved into professional and reliable sensors, offering far more features than those typically found in standard products.

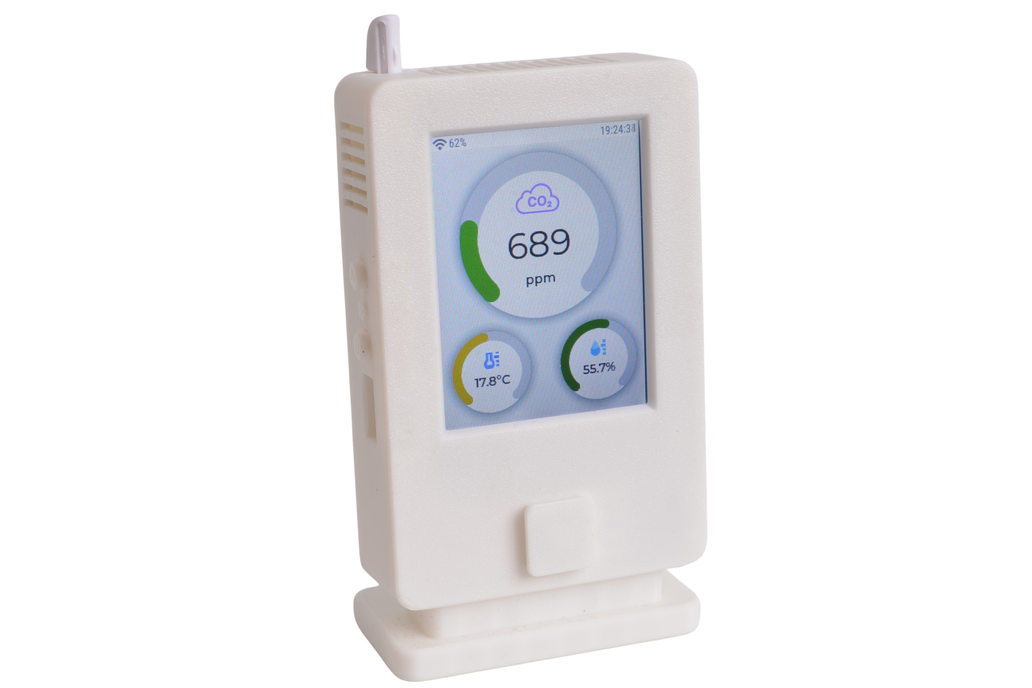

The MoreSense MS-06 is designed to measure carbon dioxide (CO₂), temperature, and relative humidity. The sensor features a 2.8-inch resistive touchscreen for displaying measurements and making settings. The MS-06 uses the Sensirion SCD40 sensor, known for its precision and compact size, utilizing photoacoustic non-dispersive infrared sensor technology.

The sensor can optionally be connected to a WiFi network (not mandatory) and can be linked to many home automation systems, including Domoticz and Home Assistant, using MQTT or REST. Both Domoticz and Home Assistant support autodiscovery (via MQTT), allowing the sensors to be automatically added. It can also be connected to Homey. For Homey, no MQTT server is required, but the HomeyDuino app (available for free in the Homey app store) is needed. Measurements can also be retrieved using an HTTP GET command (REST), with the data returned in JSON format.

This sensor can be used to control a ventilation system, potentially leading to significant savings. In winter, you don’t need to exhaust your valuable warm air if it’s not necessary. Control is possible via your home automation system or directly through smart plugs. A suitable smart plug is also available if needed.

If you need more specific information, you can download the 40+ page user manual by clicking the documentation button. The MS-06 is typically in stock, but please confirm availability and delivery times before placing your order.

Key Features Overview

• Fast ESP32 S3 240 MHz dual-core microcontroller with 8-bit parallel 2.8-inch touchscreen
• Sensirion SCD40 based on photoacoustic NDIR technology
• Precise CO2 measurements up to 2000 PPM (+/- 50 PPM 5%)
• Maximum value up to 40000 PPM (less accurate)
• Sensor lifespan >10 years (according to Sensirion)
• Comparative tests with the Aranet4 (widely recognized as the most accurate in its class) show nearly identical results. This sensor is therefore as accurate as the Aranet4.
• Temperature & humidity
• Measurement history via clear graphs (24 hours on the sensor, +/- 1 year via web interface)
• Virtually unlimited history with a microSD card (not included)
• 2 customizable CO2 alarm levels for acoustic alarms and color display meters
• Automatic calibration or calibration using a user-defined reference value
• Automatic calibration can be disabled.
• Manual calibration based on outdoor air is also possible
• Built-in web server for reading values, adjusting settings, and performing firmware updates
• Connectable to a WiFi network
• No cloud service needed, everything stays within your own network
• No app required
• Easily connectable to Domoticz or Home Assistant via MQTT and autodiscovery
• Connectable to Homey via the HomeyDuino app
• Measurements retrievable via REST using HTTP GET
• Direct smart plug connection
• Screen is dimmable and can be turned off
• Includes Stylus pen (stored in the housing)
• Average power consumption 1.5 watts (including USB adapter)
• Includes a safe 5V / 1A USB adapter (Ikea EU version) + 2-meter long USB-C cable
• Maximum dimensions (including stand): hxbxd 114x68x35mm
• Maximum dimensions (excluding stand): hxbxd 104x68x24mm
• The housing is 3D printed in high resolution and is comparable to injection-molded products
• Can be used standing (with included stand) or mounted on the wall
• Includes comprehensive (40+ pages) manual
• Optional (+ €10.00) 2000 mAh LiFePO4 battery (+/- 10-hour capacity)
• FCC and CE certified
• Primarily intended for indoor use, but it will also work in a moisture-free location
• 1-year warranty
• Money-back guarantee if not satisfied
• Includes shipping costs for the Netherlands (letterbox package, so you don’t need to stay home)
• Direct support from the maker is available
