Summary

• ATmega3208 breakout
• UPDI+ programming header
• Status LED
• Reset button

I am unlikely to make many more of this board

If you are designing something new, you probably want to use instead the AVR32DA32 chip, which has the same pinout as the ATmega3208, but better clock speed, more and better peripherals, and generally a better chip all round. I make a version of this board with that chip on instead - the AVR32DA32 Development Board.

What is it?

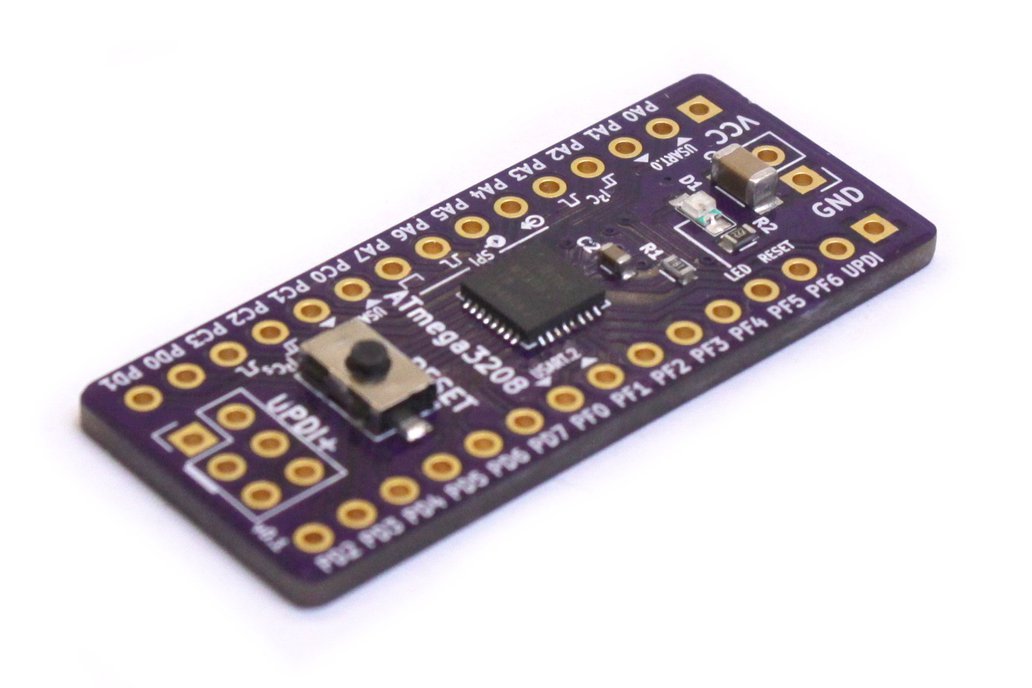

This board holds an AVR ATmega3208 microcontroller, providing access to all of the IO pins. It adds power supply decoupling capacitors, an LED, a button, and UPDI+ programming header to make a convenient self-contained development board for small microcontroller projects.

The LED is attached to the PF5 pin via a 2k2 current-limiting resistor.

The button is attached to the PF6 RESET# pin via a series resistor to prevent damage in case of drive contention. Note that the PF6 pin defaults to GPIO mode.

The board also provides a programming header in the AVR standard 2x3 layout. Note that this will requires a UPDI-capable programmer. An SPI-style ISP programmer will not work with this chip. This programming header also includes the USART.0 TX and RX signals in "UPDI+" layout, allowing single-cable programming and debug with a suitable programmer.

Finally, an extra 2-pin header is provided with another VCC and GND pin in case additional connections are required.

Reference icons are placed next to the pins used by the USART, I²C, SPI, and DAC modules, and where the LED is connected, to remind you what functions those pins usually perform.

This board is supplied with two 15 pin header strips for the IO pins and one 2x3 pin for the programming connector.

ATmega3208

The ATmega3208 is one of the new AVR 0-series microcontrollers, containing xmega-style peripherals. These are more powerful and flexible than previous generations of ATmega and ATtiny chips.

This particular chip contains 32 KiB of flash and 4 KiB of RAM on an AVR CPU clocked at 20 MHz. It provides four 16bit PWM-capable timers, a 16bit realtime counter, three USARTs with fractional baud rate generator, a master/slave capable SPI interface, I²C interface, analog comparator, 10bit ADC, 8bit DAC and in total 27 IO pins split across four ports. It also provides a 6-channel event system and configurable custom logic block that can route events between peripherals without waking the CPU.

More information can be found on Microchip's website at https://www.microchip.com/wwwproducts/en/ATMEGA3208

Why did you make it?

I wanted to experiment with the new AVR 0- and 1-series chips, but couldn't find any maker-oriented hardware for them.
