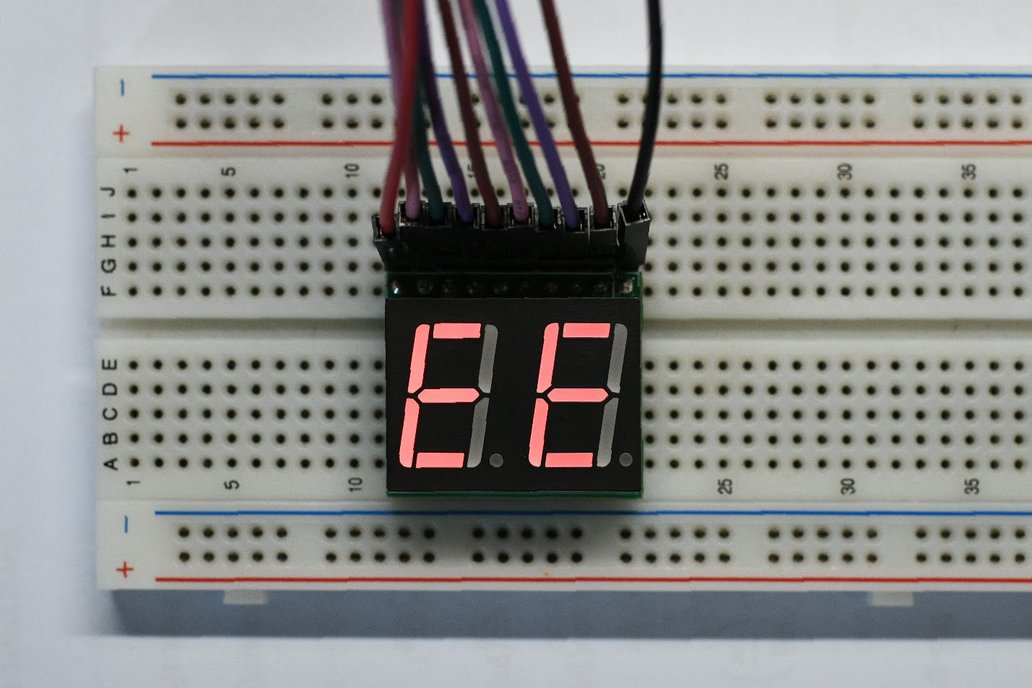

A display module to view the hexadecimal value of an 8-bit bus.
Designed by Elekchick Studio in Taiwan
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
I'm still in the process of configuring shipping rates, if you find shipping to your country unavailable, please contact me.
It always bothers be to connect a row of LEDs and current limiting resistors on a breadboard. Therefore, I came up with the idea of making a display module to display 8-bit buses on a breadboard. Als…
Read More…It always bothers be to connect a row of LEDs and current limiting resistors on a breadboard. Therefore, I came up with the idea of making a display module to display 8-bit buses on a breadboard. Also, sometimes it makes life a lot easier if the bus data is displayed in hexadecimal. In the end, I decided to make a 8-bit hexadecimal display that will fit on a breadboard.
This module is based on a Holtek HT66F3185 microcontroller. I've programmed two modes for this module, which is selectable by a solder jumper on the back of the module. The most significant bit of the inputs can be either on the left or on the right, depending on the mode selected.
