LILLA is a 16bit/44.1KHz polyphonic, multitimbral and multi-midi audio sampler based on Teensy 4.1 microcontroller.

LILLA plays imported audio files, recorded audio, and live audio stream, combining sounds with layering, applying various playing mode, adding ADSR envelope, changing length and pitch, and using digital effects (24dB/oct LPF, per-voice VCF+LFOs, stereo delay).

Audio files (raw format, 16bit 44.1KHz mono files) can be imported using a micro-SD card. The stereo analog input can be used for sampling (audio recording) and also live sampling; audio source can be a line-level audio output or a dynamic stereo microphone. Recorded files can be exported to the micro SD card (raw format).

LILLA internally stores setups and patches created by the user, and also allows to import/export them from/to the micro SD card.

This latest model also includes a versatile midi looper with 6 independent tracks, supporting dynamic improvisation, layered arrangements, and on-the-fly sound editing. Please note that LILLA is an artisanal product, lovingly crafted with time and care. As a result, small imperfections may be present, and we sincerely apologize for any inconvenience this may cause.

LILLA architecture, some block-diagrams

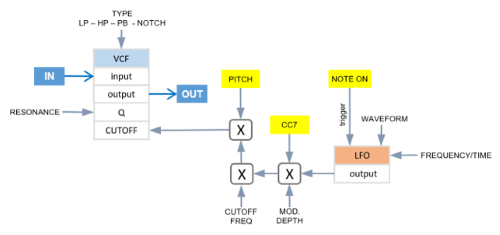

Per-voice multimodal VCF+LFO:

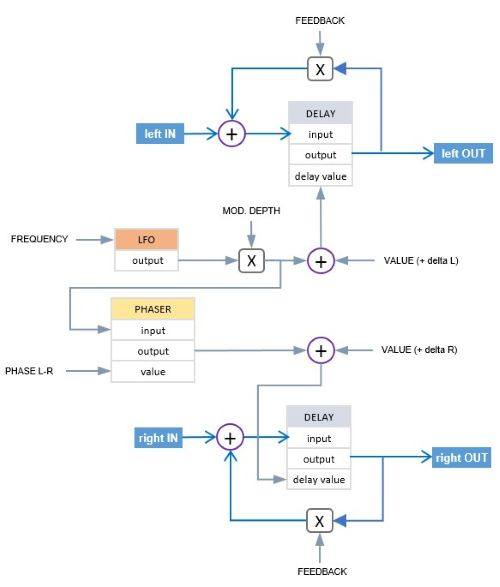

Delay:

A detailed User Guide can be read/downloaded from lillasampler.it.

Items included are: LILLA Audio Sampler, n.1 DIN to 3.5mm jack midi adapter, n.1 micro SD card.

Specifications

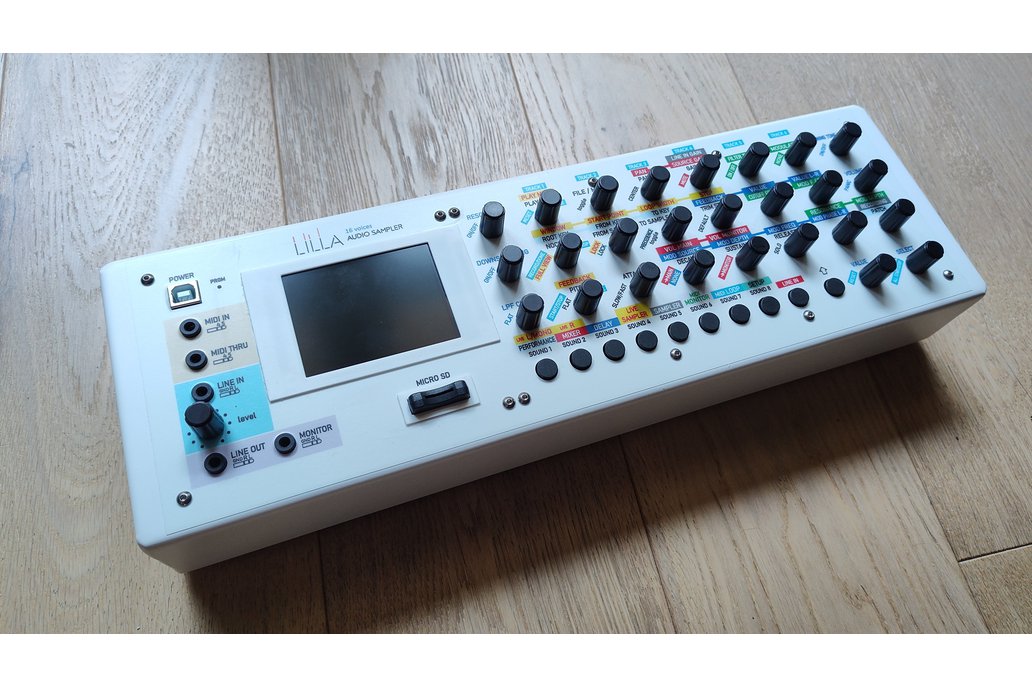

LILLA dashboard includes 26 encoders with pushbutton, 10 pushbuttons, line-in stereo analog audio, line-out stereo analog audio, monitor (out) stereo analog audio, midi in, midi thru, and a 3.2" color display. Construction is based on n.2 4-layers PCBs; Processor: ARM Cortex-M7 @600MHz on Teensy 4.1; Audio memory: 64MB permanent memory (flash memory) + 16MB PSRAM volatile memory for Live Sampling. Polyphony: up to 16 voices. Power supply: 5V DC (USB type B plug). The case is made of white powder-coated aluminum.

Production

LILLA is designed, tested, and assembled in a small artisan workshop in northeastern Italy. We do not produce on demand; only a few pieces are crafted each month and made available in this shop.

Links

website: lillasampler.it

facebook: www.facebook.com/Lilla.audio.sampler

youtube: www.youtube.com/channel/UCqcrcwBma5dbZSke477r38w

Reviews

Synthanatomy

Amazona.de

Story album

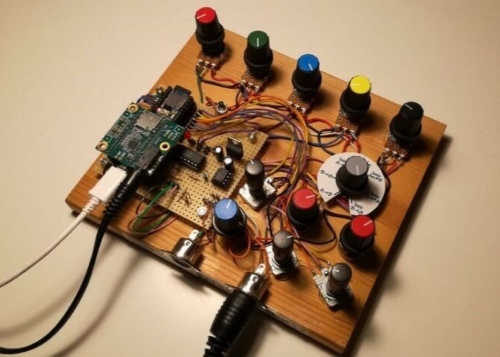

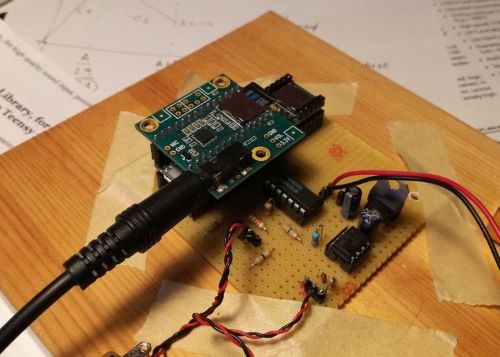

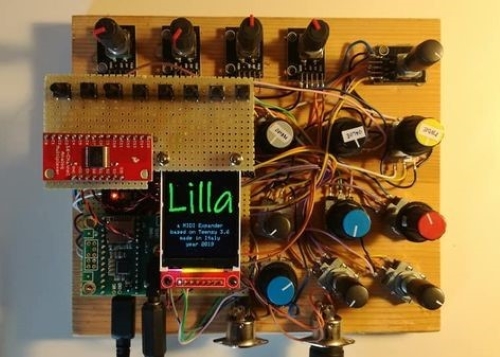

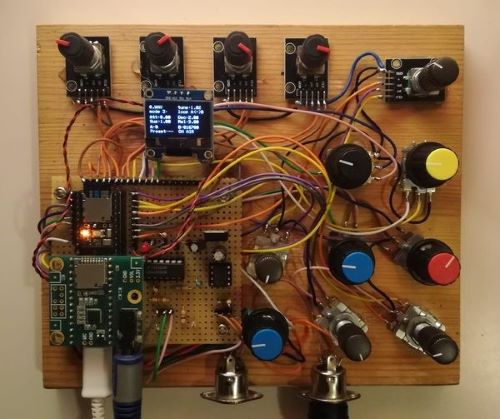

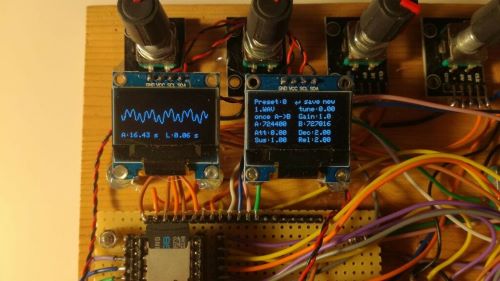

LILLA has been developed from scratch, starting from a small circuit in 2018, equipped with Teensy 3.6 board.

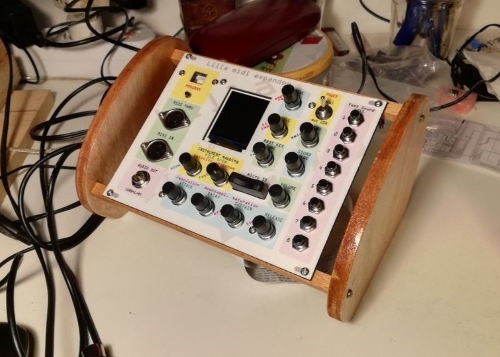

A first "concept" device was presented at Torino "Soundmit", 2019 edition.

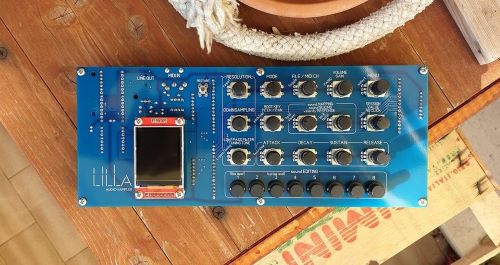

This "naked" LILLA realized in 2020 and equipped with Teensy 4.1 was reproduced in few pieces.
