LILYGO® T-Dispay E-paper 1.02 inch Adapt to T-U2T USB To TTL Automatic Downloader

If you are buying this product for the first time, it is recommended to buy a T-display E-paper kit containing T-U2T USB To TTL

LILYGO T-display e-paper It is the "brother version" from the T-display TFT version based on the size structure of the TFT version,

Change the 1.14 inch TFT display to 1.02 inch e-paper display,

Adding PCB positioning holes, 3535 RGB and IPEX antenna sockets, PCB color LILYGO selected bright green PCB with black and white ink screen for the first time, making the overall vision more comfortable.

This is also a product compatible with T-U2T automatic downloader,

We will be compatible with the T-U2T automatic downloader on the new version of the product, that is, when you have a T-U2T automatic downloader, it will support the motherboard that requires the USB to TTL function.

LILYGO T-display E-paper parameters;

• 1.02 inch E-paper resolution: 128X80
• ESP32-D0WDQ6-V3
• 4MB FLASH
• TP4054 battery charge and discharge chip
• Custom button X2
• RST button
• Type-c USB for T-U2T
• IPX antenna base
• 3535 RGB
• Jst 2pin 1.25mm battery connector
• Low power consumption design (sleep power consumption is about 15uA)

Application scenarios

• Shelf label
• Badge
• DIY
• STEM
• IOT terminal equipment

Githublink： https://github.com/Xinyuan-LilyGO/LilyGo-T5-Epaper-Series

How to start T-Display Epaper： https://youtu.be/90bbuKY3kzc

Power consumption

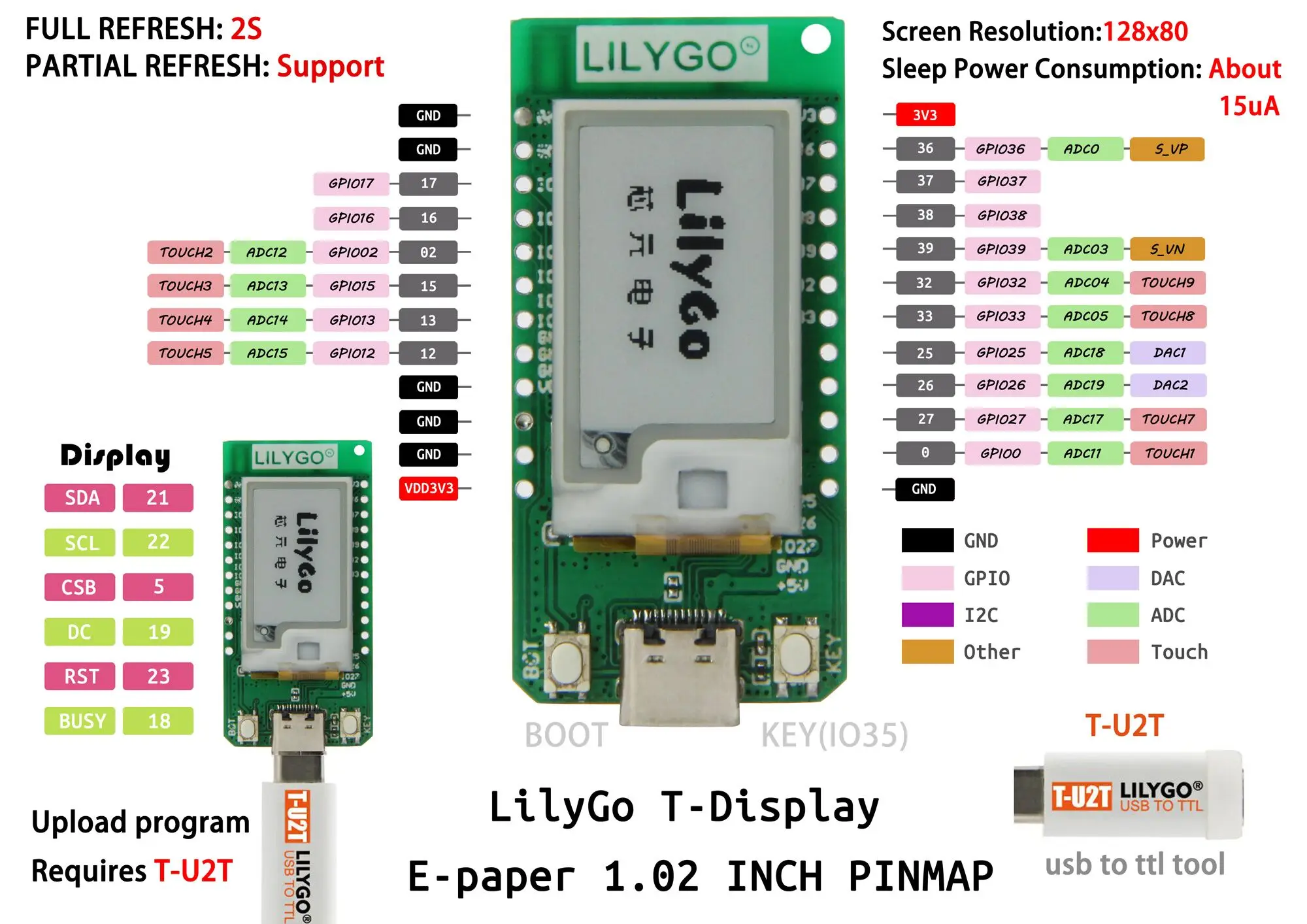

Pin diagram

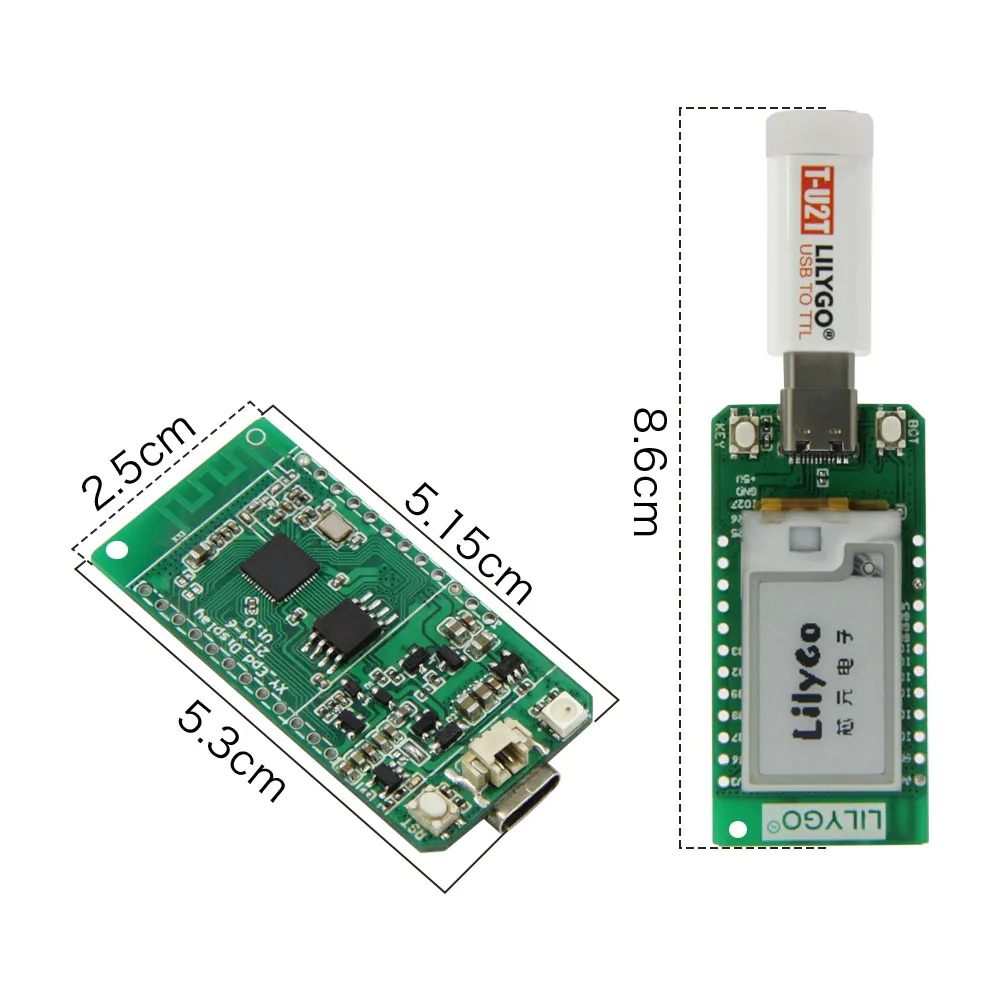

size chart

Shipping list

T-display E-paper options

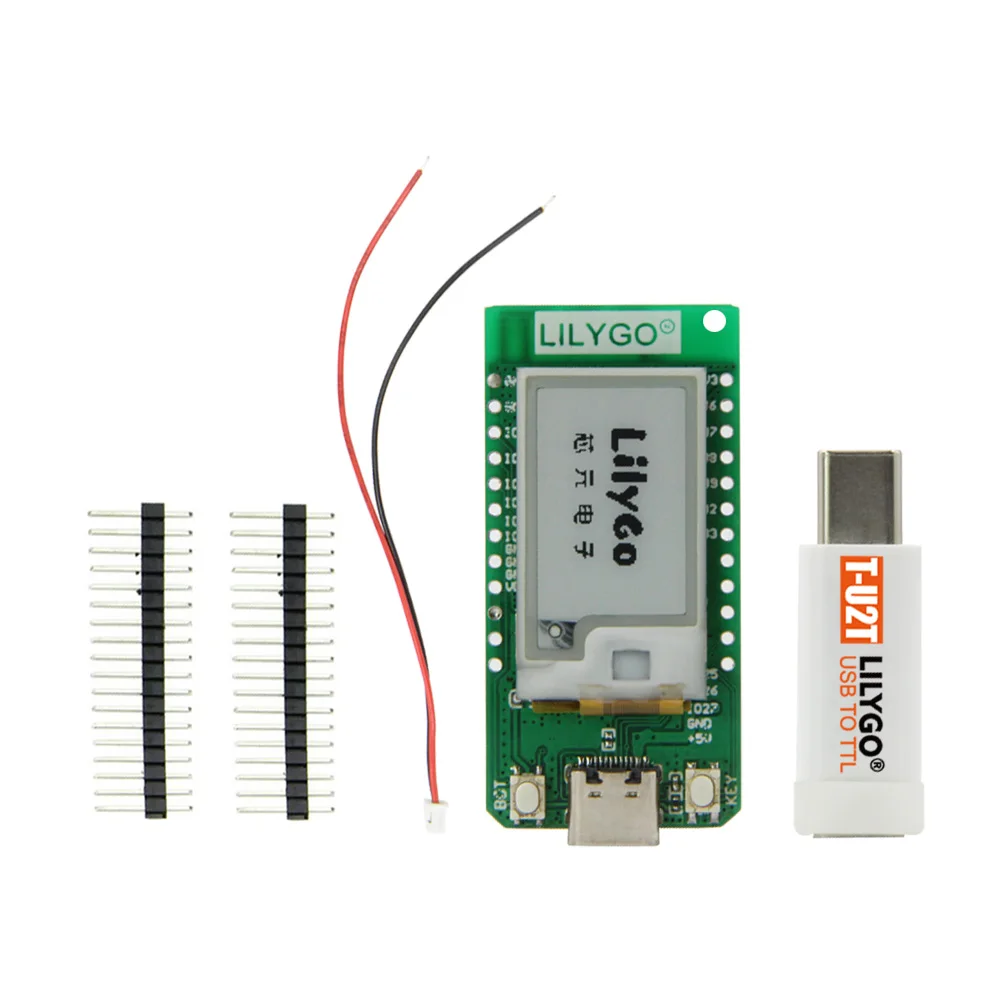

1 X T-display E-paper

2 X Pin

1 X Battery cable

The product needs the T-U2T automatic downloader to upload the program.

If you don’t have T-U2T , it needs to be bought to upload the program.

If you have , it is no need to buy again , it can be compatibled with our T-U2T series products.

T- U2T USB to TTL options

1 XT- U2T USB to TTL

T-display E-paper kit options

1 X T-display E-paper

2 X Pin

1 X Battery cable

1 X T- U2T USB to TTL
